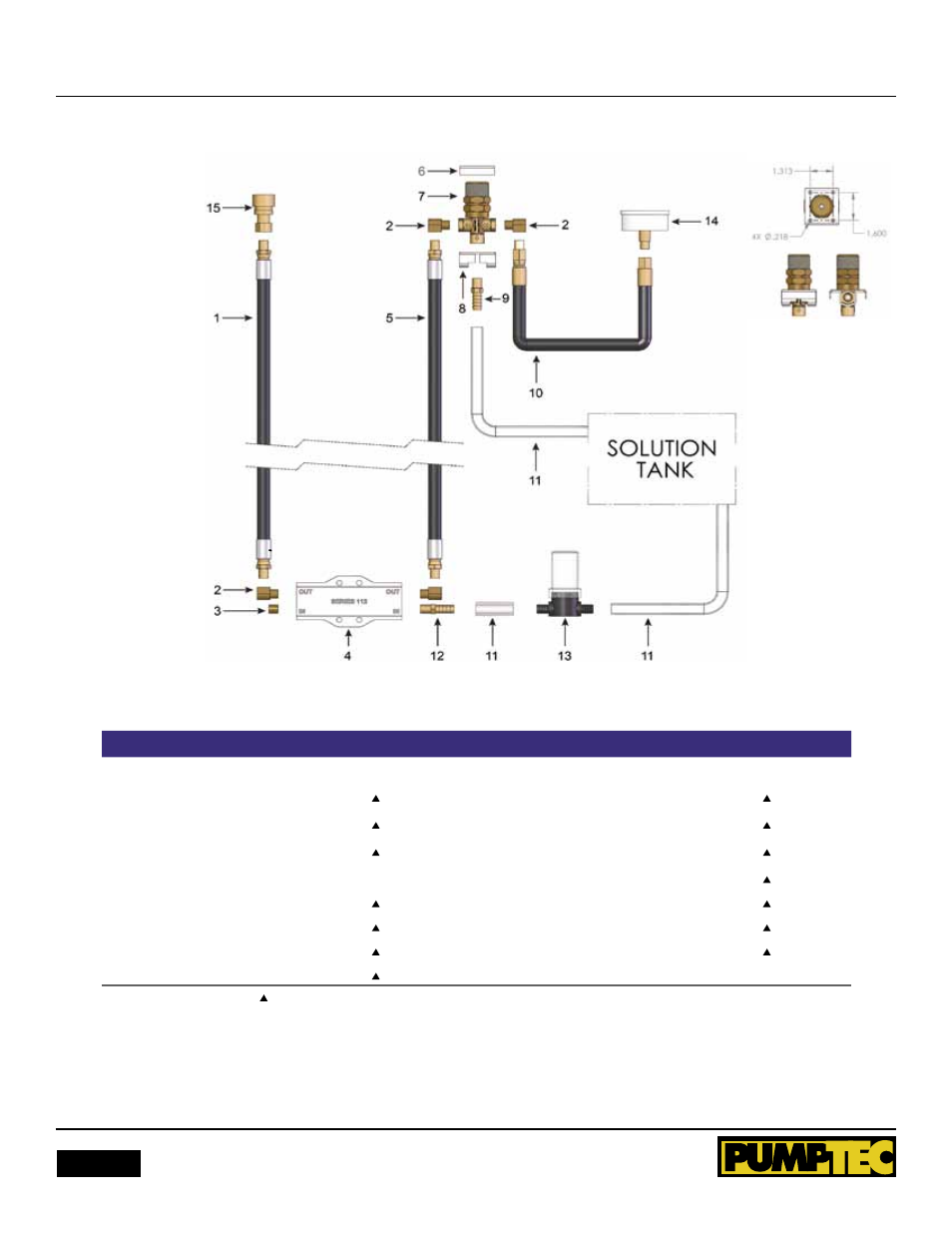

Pumptec Operating Instructions and Parts Manual
UPGRADE KITS
PartS LiSt For HigH PErFormanCE uPgraDE kit
REF
DESCriPtion
PN
QTY
REF
DESCRIPTION
QTY
uPgraDE kit 112, 200PSi
80656
1
Pulse Hose, 45”
1
9
Brass Hose Barb, 1/4”M, 1/2” B
1
2
Brass Elbow
4
10
Pulse Hose, 32”
1
3
Brass Counter Sunk Plug
1
11
Hose, 1/2” ID, 7ft.
1
4
Pump/Motor
†
1
12
Poly Hose Barb, 1/4” M, 1/2” B
1
5
Pulse Hose, 32”
1
13
Clear Bowl LIne Strainer, 1/2” B
1
6
Top Bracket
1
14
600 PSI Pressure Gauge w/Bracket
6
7
Regulator
1
Δ
Hose Clamp, 3/8” - 7/8”
6
8
Bottom Bracket
1
15
Quick Connect
†
1
( ) Sold as part of a kit | (Δ) Not Shown | (†) Not included in kit. For identification only.
MOUNTING BRACKET
ASSEMBLY
