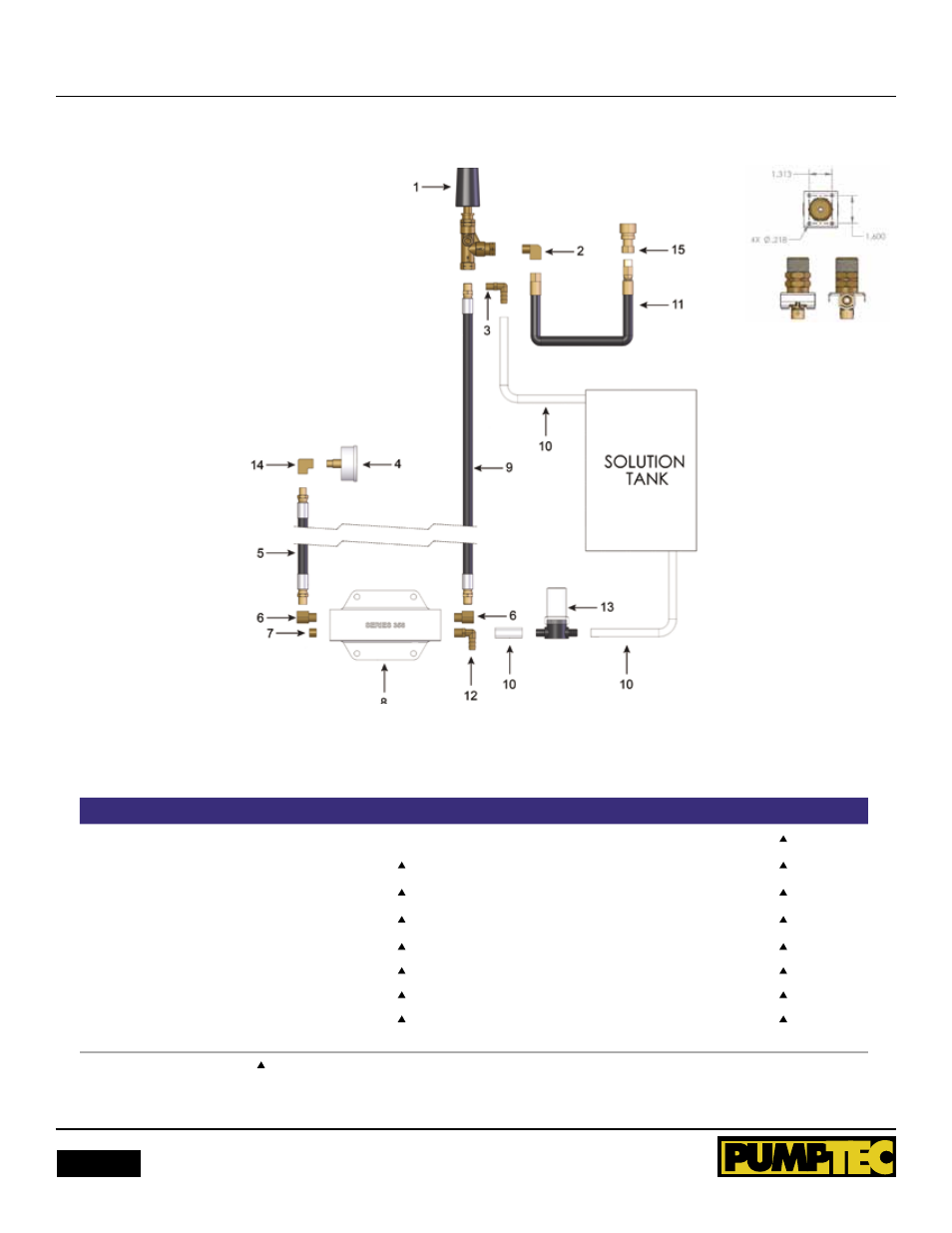

Pumptec Operating Instructions and Parts Manual UPGRADE KITS
PartS LiSt For HigH PErFormanCE uPgraDE kit
ref DESCriPtion PN qty ref DESCriPtion qty
uPgraDE kit 348, 350, 356 1200PSi 80718 9 Pulse Hose, 32” 1
1 Unloader 1 10 Hose, 1/2” ID 1
2 Brass Elbow, Long 1 11 Pulse Hose, 31” 1
3 Brass Elbow, Hose Barb, 1/4” M 1 12 Brass Elbow Hose Barb, 3/8” M 1
4 2000 PSI Pressure Gauge w/Bracket 1 13 Clear Bowl Line Strainer, 1/2” 1
5 Pulse Hose, 17” 1 14 Brass Elbow 1
6 Brass Elbow, Close 2 Δ Reducing Adapter 1
7 Brass Counter Sunk Plug 1 Δ Hose Clamp, 3/8”-7/8” 6
8 Pump Motor † 1 15 Quick Connect † 1
( ) Sold as part of a kit | (Δ) Not Shown | (†) Not included in kit. For identification only.
MOUNTING BRACKET
ASSEMBLY
