AUPS Series Power Module User Manual
Page 32
Step 2: In a remote computer, install the IEI REMOTE AP. Double click the setup.exe file
in the x:\Other\AUPS REMOTE AP directory. Follow the steps to install the IEI
REMOTE AP. After installation, launch the AP. If there is a problem to launch the
tool, execute the dotnetfxRedist20.exe first (located in the same directory of the
driver CD).
Step 3: The IEI REMOTE AP tool appears (Figure 4-17). All the AUPS Series module in
the same subnet with this remote computer are shown in the list on the right.
Click the function buttons on the left to control the AUPS Series.

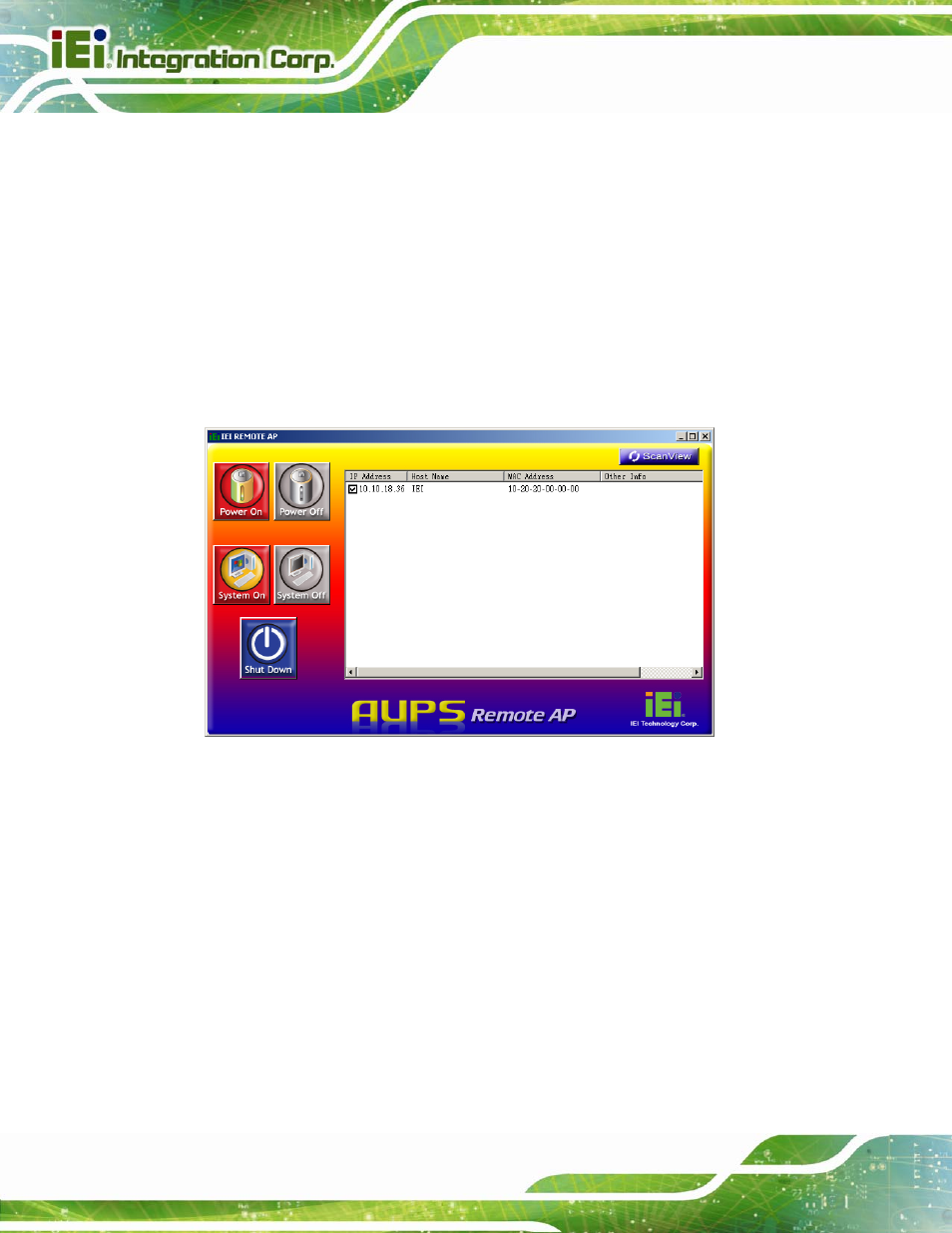

Figure 4-17: IEI REMOTE AP
Step 4: To access the web interface for advanced monitoring and functions, double click
the IP address of the connected AUPS Series (Figure 4-18).
