AUPS Series Power Module User Manual

Page 18

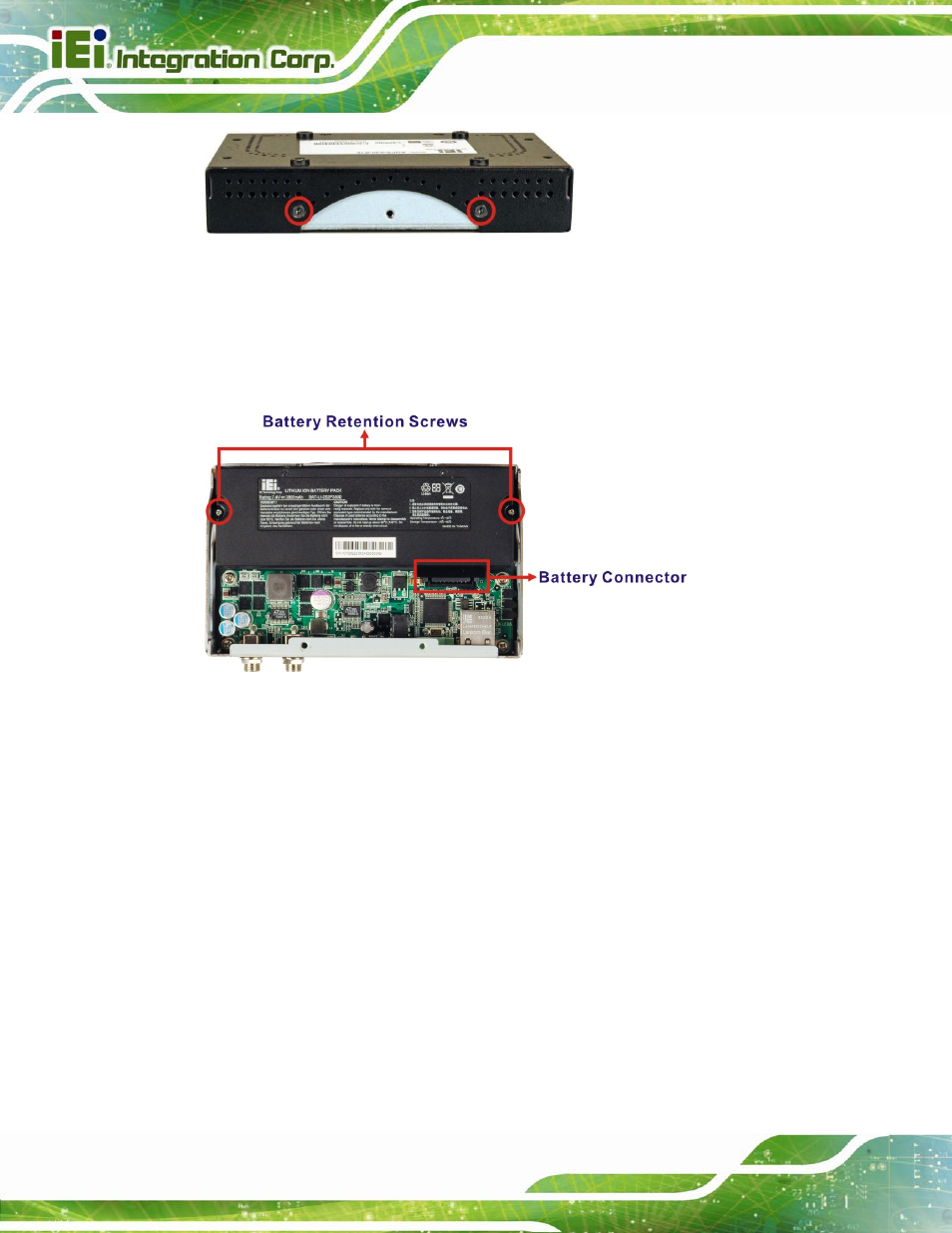

Figure 3-2: Top Cover Retention Screws (Top Panel)

Step 2:

Install the battery pack into the AUPS Series. Make sure the battery pack is

connected to the battery connector on the board. (Figure 3-3)

Figure 3-3: Battery Pack Installation

Step 3:

Secure the battery pack with two retention screws.

Step 4:

Replace the top cover.

Step 0:

3.5 Mounting the AUPS Series

To mount the AUPS Series onto the rear panel of the AFOLUX panel PC, follow the steps

below.

Step 1:

Install the mounting bracket onto the rear panel of the AFL panel PC. Align

the screw holes in the mounting bracket with the VESA screw holes in the rear of
