AUPS Series Power Module User Manual
Page 2
1.1 AUPS Series Overview

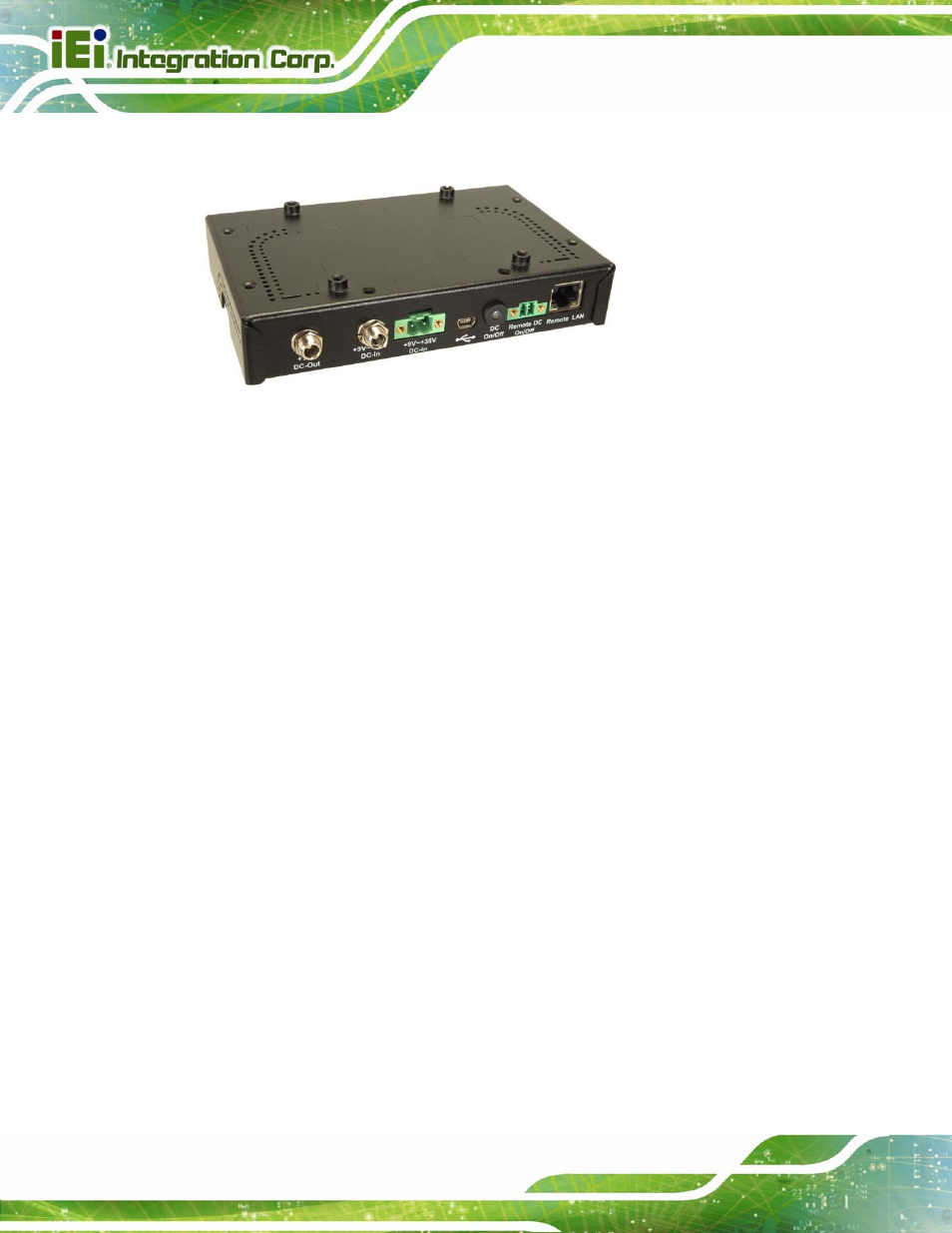

Figure 1-1: AUPS Series UPS Module
The highly efficient, high-performance AUPS Series UPS (Uninterruptible Power Supply)
module installed with a Li-ion battery to provide stable 12 V output and uninterruptible
power to the IEI AFOLUX series panel PCs. The UPS module also receives either 12 V
input or a wide range of inputs between 6 V and 36 V DC. The AUPS Series is built on an
intelligent design and provides outstanding line and load regulations. The AUPS Series is
capable of providing power for certain of time in power failure.
The AUPS Series UPS module comes with the utility software that provides information on
current power source and battery status. With the AUPS software installed and network
connected, the AUPS Series can be monitored and turned on/off through a remote
computer.
1.2 AUPS Series UPS Module Features
ƒ Rugged metal enclosure for standard VESA 75/100 mounting
ƒ Wide range power input (9 V–36 V) by DC jack or terminal block
ƒ Network management through web-based interface in remote computer. No
additional administration software installation is required.
ƒ Supports PC-based utility for monitoring power and battery status
ƒ Auto shut down when battery low
ƒ Provides stable power to AFOLUX PPC during line sags and spikes.
ƒ Absorb power surges and transients
