HDC-3x Series Video Capture Card

Page 42

4.3 Video Decoding

The HDCapture also includes decoding function that decodes the video signal for video

output to the HDMI-enabled display device. To decode a captured video clip, follow the

steps below.

Step 1:

Launch the HDCapture.

Step 2:

Bring up the Decoding page by clicking one of the Device # buttons. Click the

Decoding tab to access the decoding page.

Step 3:

Click Ref button

to locate a video file in the computer to decode.

Step 4:

Select the video format of the selected video clip. The video format selected

here must be the same with the video format of the file selected in the previous

step.

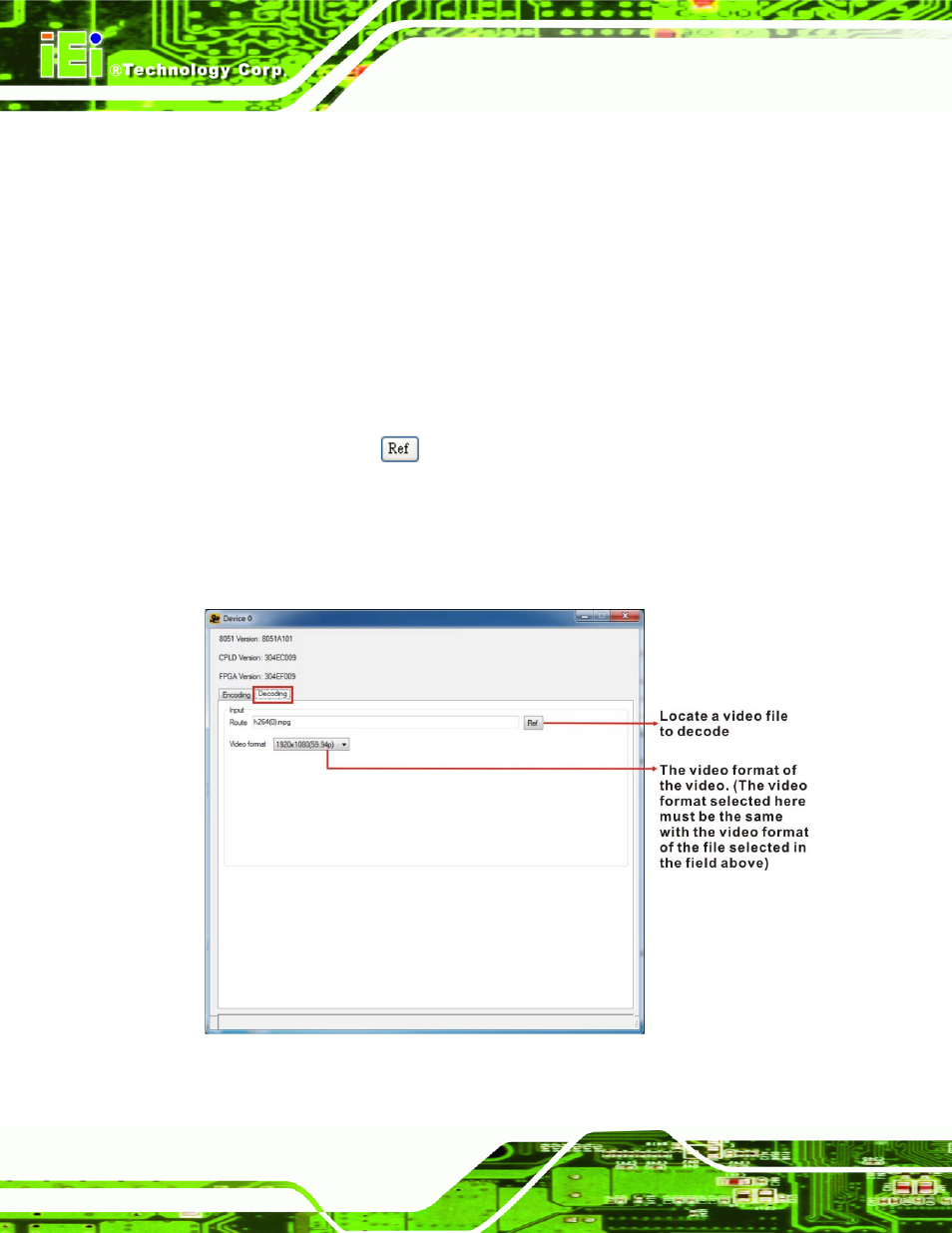

Figure 4-5: Decoding Settings
