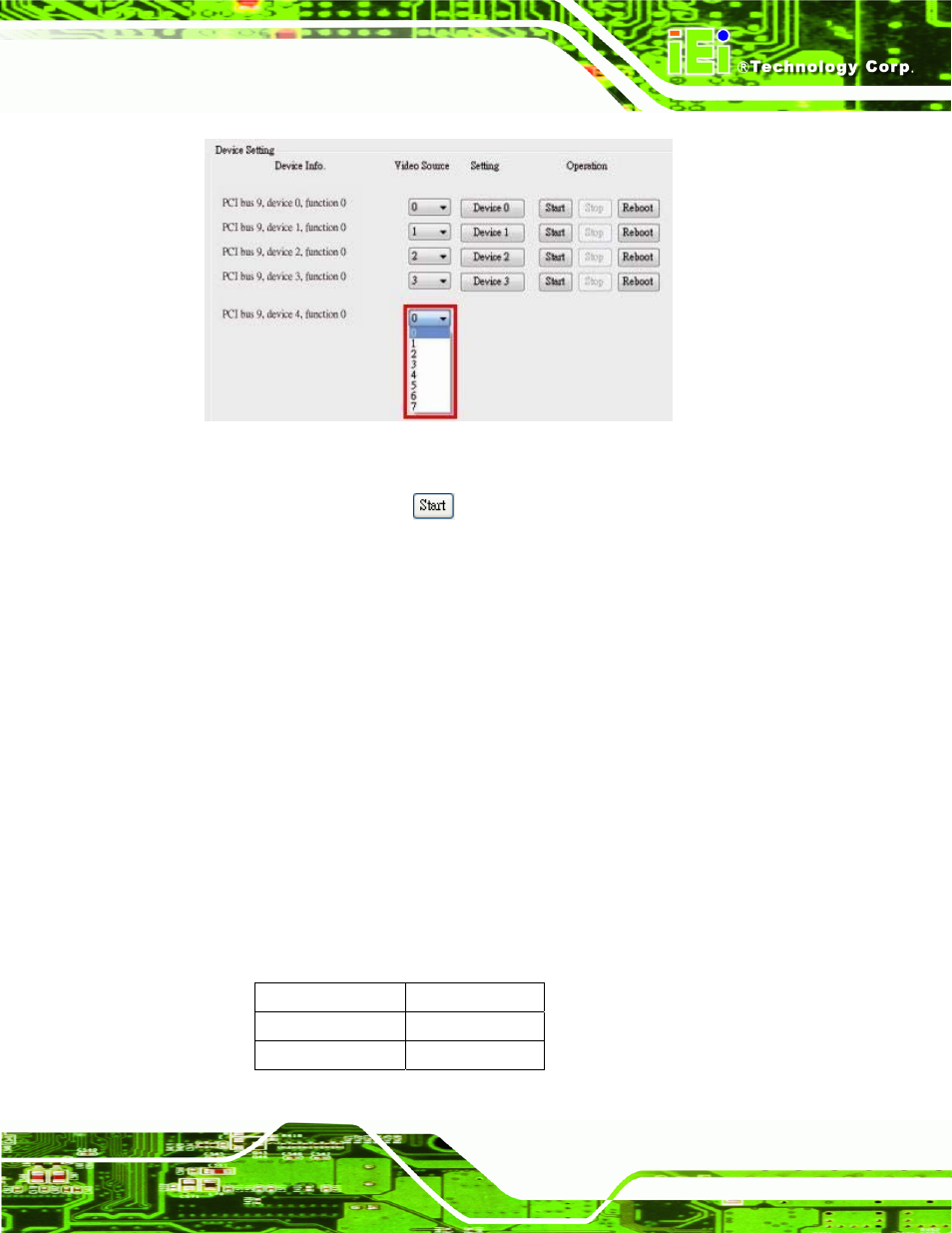

Figure 2-7: Select Transmitter Bus for HDC-304E
Step 8: Click Operation Start to start decoding the selected video. Step 0:
2.4 Video Bypass
To view the video input source on HDMI display device in real time, please follow the
steps below.
Step 1: Launch the HDCapture SDK.
Step 2: Connect the HDMI cable from HDMI display device to the HDMI output port or
the HDMI output kit (HDC-304E).
Step 3: Connect the video input source to the HDMI input port of the HDC-3x Series
SDK (Windows).
Step 4: This step is only required for the HDC-302E . Select the transmitter bus (0 or 1)
(Figure 2-9). For example, to view the video input source 1 on HDMI display
device, select the transmitter bus 0. Please refer to the following table:
Video Input Source Transmitter Bus
Source 1 0
Source 2 1
