ECN-581A-D5251/HM551 QIG IEI Technology Corp. Page 6
STEP 8: WALL-MOUNT PLATES
INSTALLATION
Two wall-mount plates are shipped with the ECN-581A chassis. The
wall-mount plates are installed on the sides, at the bottom of the
chassis. Each plate is secured to the chassis by two retention
screws. To install the wall-mount plates, please follow the steps
below.
Step 1: Align the retention screw holes in the wall-mount
plate with the retention screw holes on the side of
the chassis.
Step 2: Insert two retention screws for each wall-mount
plate. Step 0:

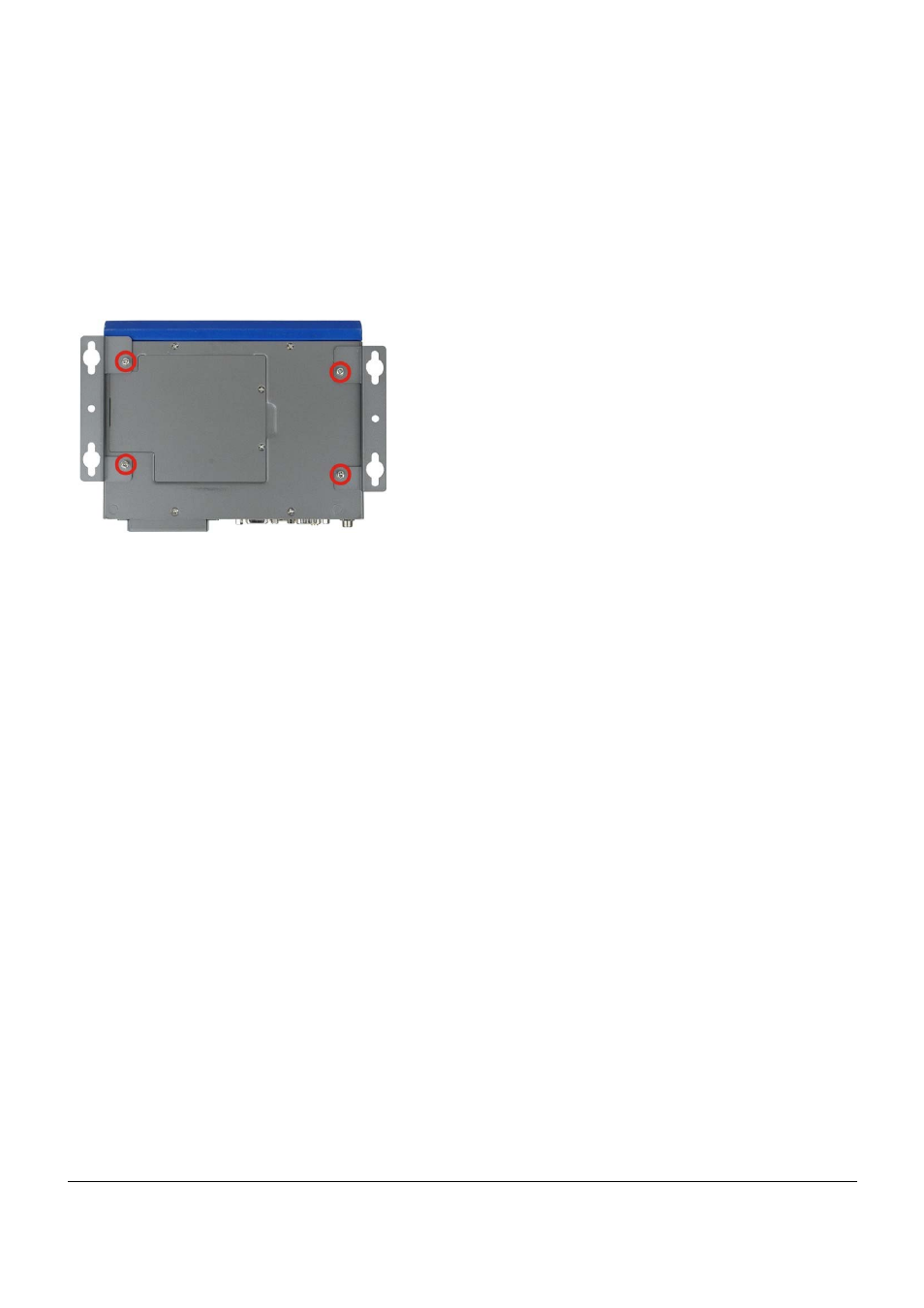

Figure 14: Wall-mount Plate Retention Screws
