Waterstone POTFILLERS 3200 - Manual (Page 4)

4.
5.
6.
C-CLIP GROOVE
V-GROOVE
F
G
H
J
K
L
M

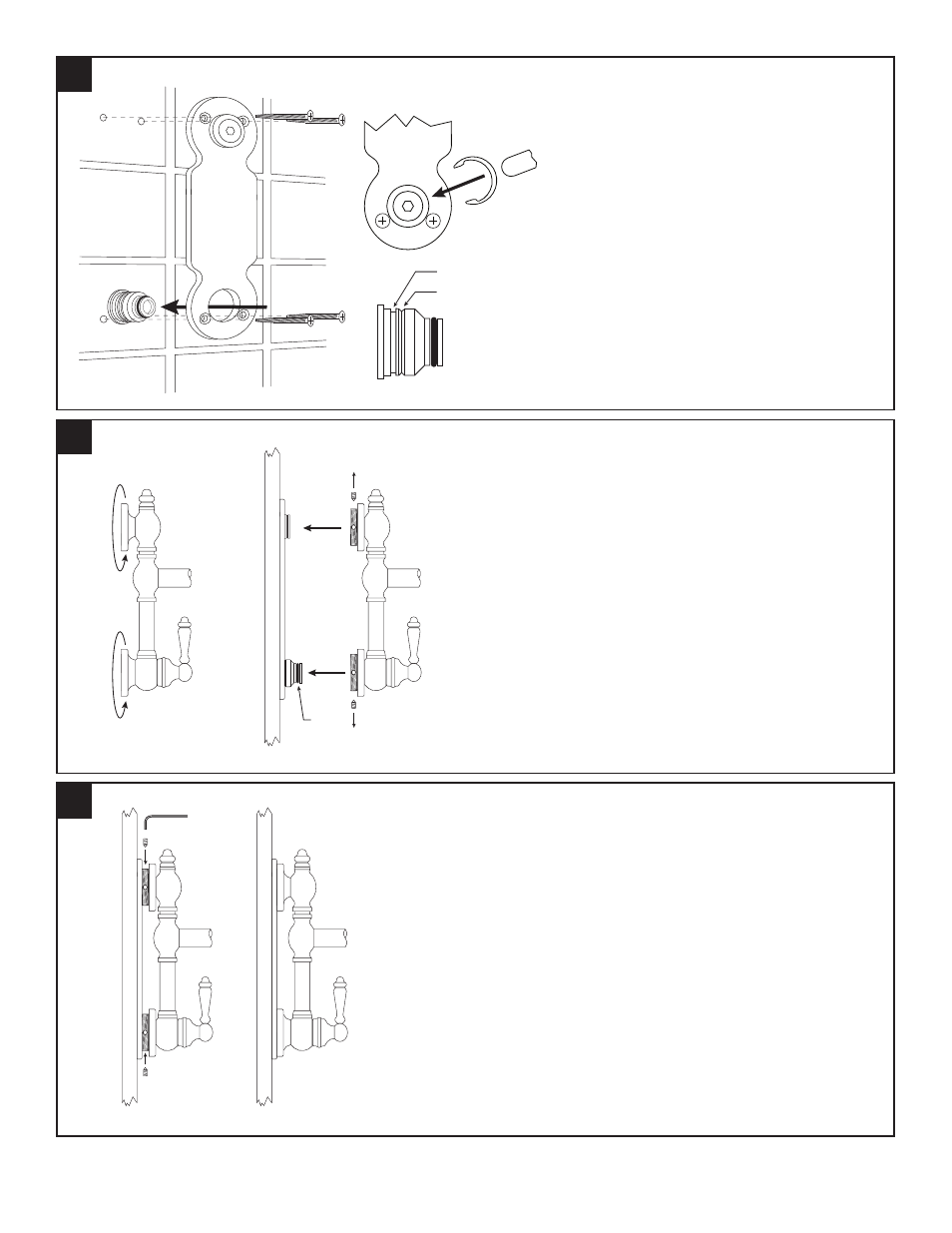

Reposition MOUNTING PLATE over PIPE ADAPTER and
line up four drilled holes with four screw holes on plate.
Screw MOUNTING PLATE to wall. Next, use C-CLIP (F)
provided to secure PIPE ADAPTER to MOUNTING PLATE
(because pipe has play in and out, you might need to
pull on PIPE ADAPTER to expose C-CLIP groove). Using
wooden stick (G) provided, push C-CLIP into the C-CLIP
groove closest to MOUNTING PLATE. This prevents an
accidental scratch on plate as you install it. NOTE: The
C-Clip MUST be installed to insure that the pipe adapter
is properly located for attachment of the potfiller
assembly.
Your potfiller comes pre-assembled. Once MOUNTING PLATE is secure
on wall, you are ready to attach POTFILLER ASSEMBLY. Both upper
and lower mounting bases have a threaded decorative ring (H) to
hide MOUNTING SET SCREWS (J). Unscrew upper and lower rings
away from mounting surface to reveal threads and SET SCREWS. Back
off or remove the three upper and three lower SET SCREWS on each
mounting base. Prior to mounting POTFILLER ASSEMBLY, lubricate
PIPE ADAPTER with liquid dish soap. POTFILLER ASSEMBLY will slide
onto PIPE ADAPTER and the UPPER MOUNTING BASES (K) on plate.
Push the POTFILLER ASSEMBLY onto bases. Lower base has a O-ring
(L) that will seal into valve assembly. POTFILLER ASSEMBLY until
should be touching and flush with MOUNTING PLATE.
Using provided 3/32” hex wrench (M), replace and tighten lower three SET SCREWS
and upper three SET SCREWS. Set screw points should be seated into “V” groove ON
PIPE ADAPTER. DO NOT OVERTIGHTEN THE SET SCREWS. Snug tight is all that’s
needed. Replace and tighten upper three SET SCREWS. Once all six set screws are in
place, thread decorative upper and lower rings back onto mounting bases to conceal
threads and SET SCREWS. Hand tighten only, do not use a wrench. IMPORTANT
NOTE: If SET SCREW points are not properly seated into PIPE ADAPTER “V” groove, the
tops of the SET SCREWS will not allow decorative rings to be threaded into place. This
is a safety feature that assures a proper connection to PIPE ADAPTER. DO NOT modify
or use different SET SCREWS than those provided. Restore water pressure to line
and check for leaks. For questions or concerns, please call Waterstone for technical
assistance. 1-888-304-0660
ATTACH POTFILLER TO MOUNTING PLATE
ATTACH MOUNTING PLATE
SECURE POTFILLER
