62 Agilent FrameScope 350 User’s Manual
3 Cable Testing with the FrameScope 350
Setting Up an Autotest
Setting Up an Autotest
The tester must be configured for testing at each site by
completing the following procedures.
Opening the Setup Menu
1 On the Main Menu, press Setup. The Autotest Setup screen displays.
Choosing the Profile
The FrameScope 350 normally displays one or two limit options
on the Main Menu, based upon the profile selected. If None is
selected, then the two limit options are dependent upon the
Standard selected. If the Standard is TIA-568B, then the two
limit options are Category 5E and Category 6. Otherwise Class
D and Class E are displayed. If the profile for a specific test is
selected, then only that test choice is displayed. To change the
profile:

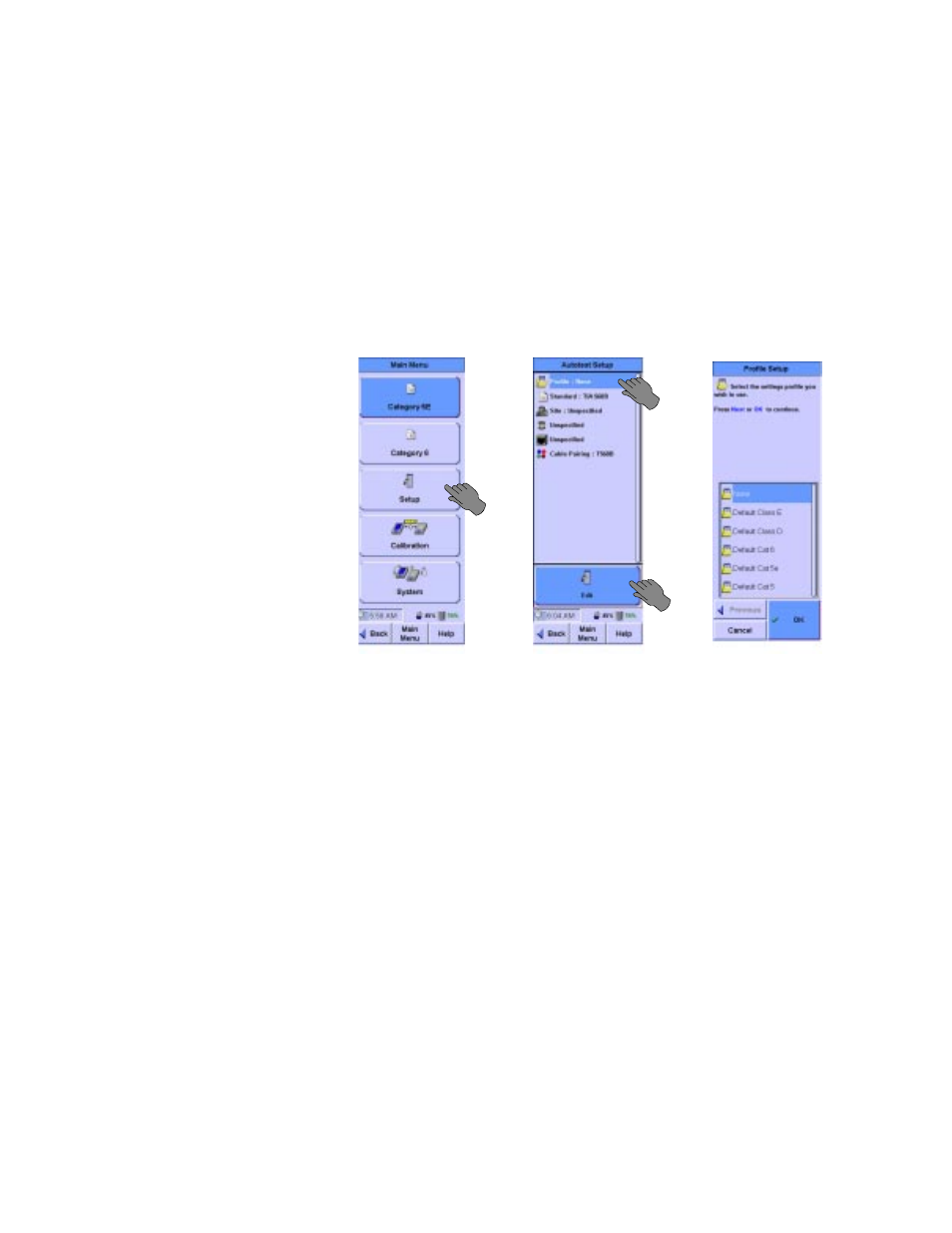

1 On the Autotest Setup screen, press Profile, then Edit. The Profile
Setup screen displays.
2 Press None, or the profile of choice, then press OK. The Autotest
Setup screen will then show your selected profile.
Choosing the Standard
The FrameScope 350 normally tests to the TIA-568B standard.
(For detailed information about test standards, please visit the
website at: http://FrameScope.comms.agilent.com/ ) To test to a
different standard, follow these steps:
