Expert Fiber Testing

6

The Fiber Tools Menu

Agilent FrameScope 350 User’s Manual

151

4

To select the test configuration or to specify the fiber type, press
Quick Setup

.

Measuring Length and Delay

To use the Length & Delay tool:

1

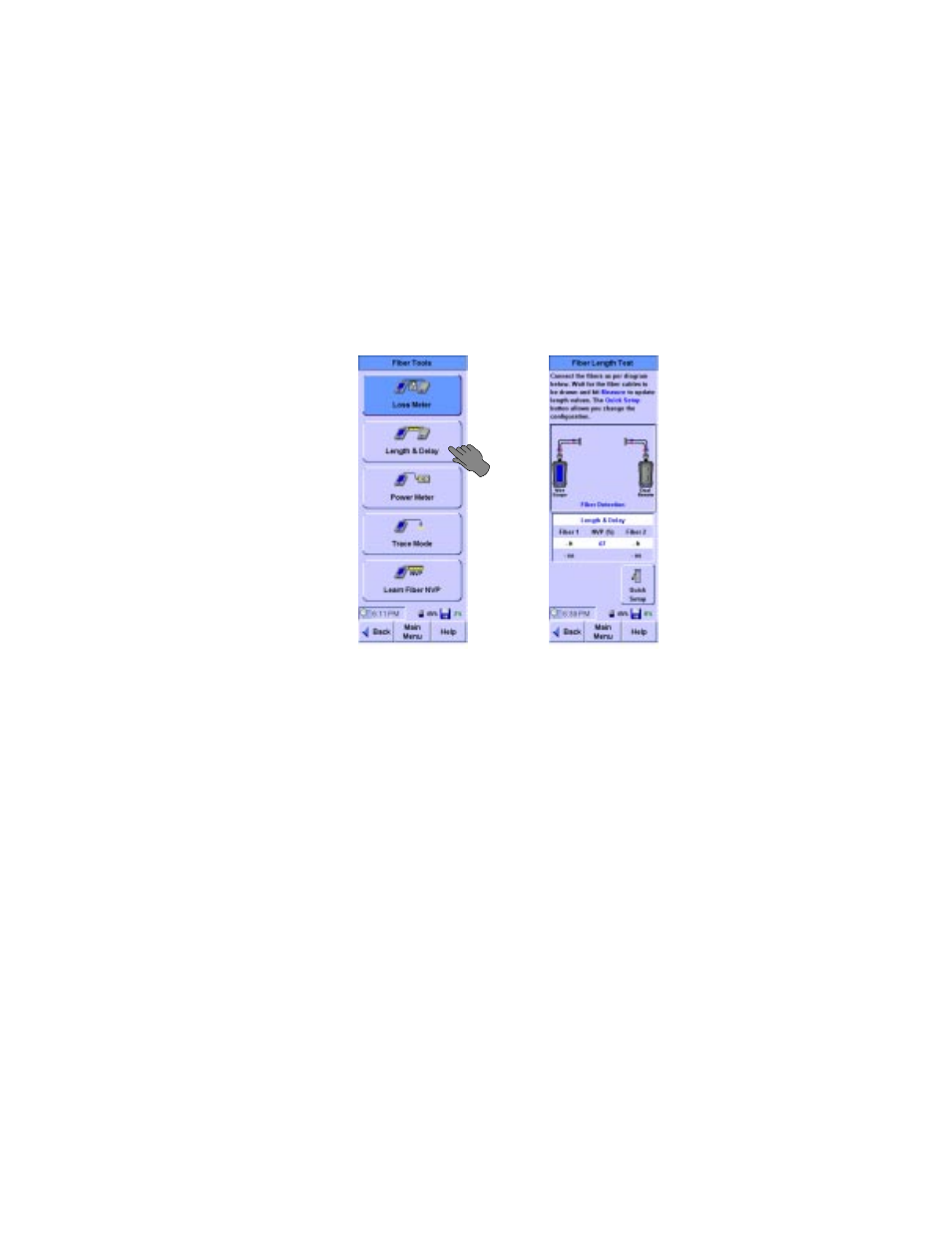

On the Fiber Tools menu, press Length & Delay. The Fiber Length
Test screen displays. If a valid fiber connection is present, a Measure
button appears.

2

To begin the test, press Measure.

3

To select the test configuration, fiber type, or NVP, press Quick
Setup

.

Using the Power Meter

To use the Power Meter:

1

On the Fiber Tools menu. press Power Meter. You may be prompted
to calibrate upon entering this tool. This is not the same calibration as
