Fulton Electric (FB-W) Hot Water Boiler - Manual (Page 10)

© The Fulton Companies 2014
INSTALLATION
FBW-IOM-2014-0311
SECTION 2
2-4

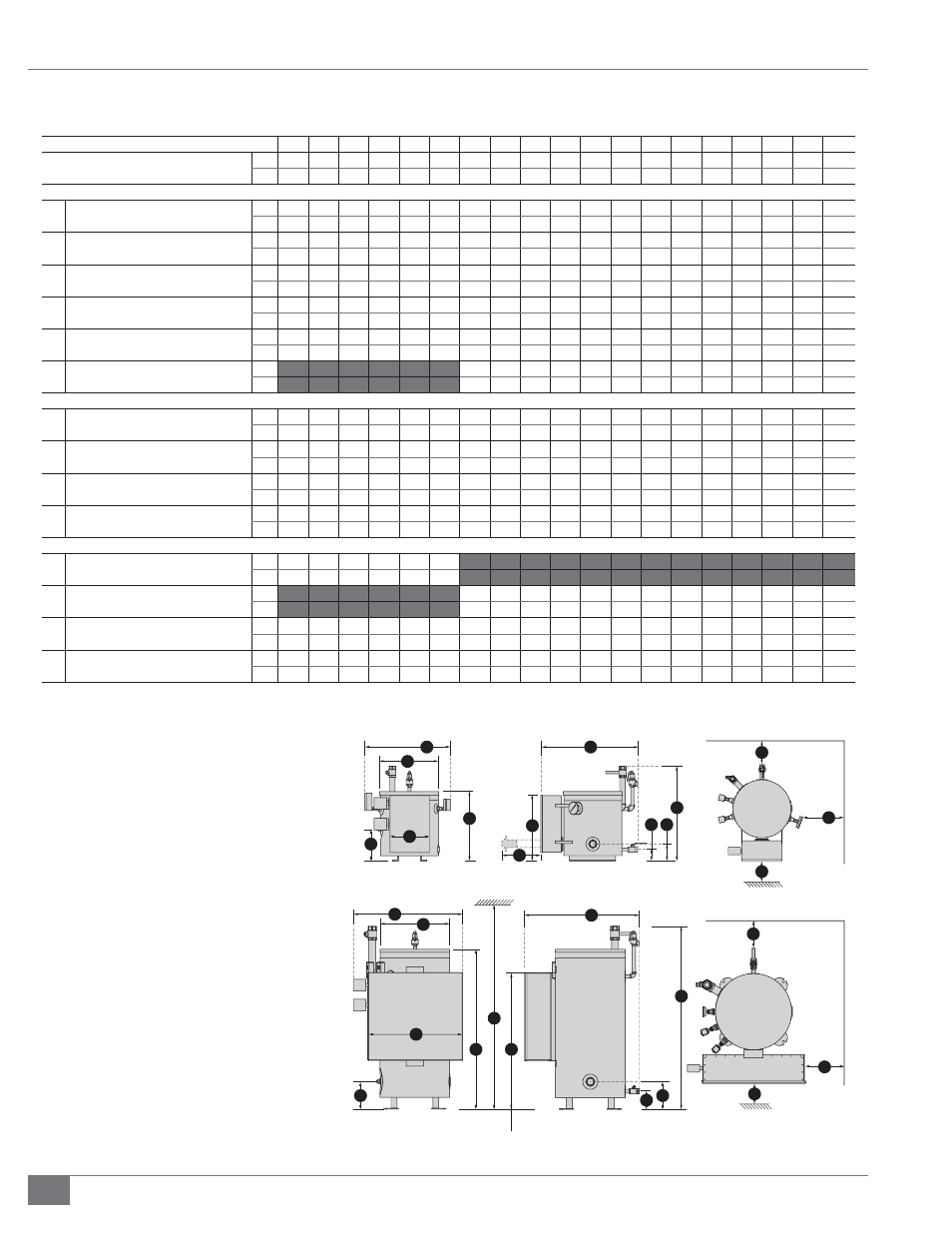

TABLE 1A- BOILER DIMENSIONS
Model FB-W 012 015 018 024 030 036 050 070 105 140 175 210 280 350 420 490 560 630 700
Unit Size kW 12 15 18 24 30 36 50 70 105 140 175 210 280 350 420 490 560 630 700
HP 1.2 1.5 1.8 2.4 3 3.6 5 7 10.5 14 17.5 21 28 35 42 49 56 63 70
Height
(A) Heater Overall
IN 24 24 24 24 24 24 55 55 55 55 55 55 55 55 55 55 55 55 55
MM 610 610 610 610 610 610 1397 1397 1397 1397 1397 1397 1397 1397 1397 1397 1397 1397 1397
(B) Hot Water Outlet
IN 18 18 18 18 18 18 45.5 45.5 45.5 45.5 45.5 45.5 45.5 45.5 45.5 45.5 45.5 45.5 45.5
MM 457 457 457 457 457 457 1156 1156 1156 1156 1156 1156 1156 1156 1156 1156 1156 1156 1156
(C) Return Water Inlet
IN 4.25 4.25 4.25 4.25 4.25 4.25 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5
MM 108 108 108 108 108 108 241 241 241 241 241 241 241 241 241 241 241 241 241
(D) Drain Outlet
IN 4.25 4.25 4.25 4.25 4.25 4.25 6.25 6.25 6.25 6.25 6.25 6.25 6.25 6.25 6.25 6.25 6.25 6.25 6.25
MM 108 108 108 108 108 108 159 159 159 159 159 159 159 159 159 159 159 159 159
(E) Electric Control Box
IN 20.5 20.5 20.5 20.5 20.5 20.5 47 47 47 47 47 47 48 48 52 49 49 54 60
MM 521 521 521 521 521 521 1194 1194 1194 1194 1194 1194 1219 1219 1321 1245 1245 1372 1524
(F) Hand Hole
IN 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5 9.5
MM 241 241 241 241 241 241 241 241 241 241 241 241 241
Width & Depth
(G) Heater Diameter
IN 20 20 20 20 20 20 17 17 24 24 28 28 36 40 40 44 44 50 50
MM 508 508 508 508 508 508 432 432 610 610 711 711 914 1016 1016 1118 1118 1270 1270
(H) Overall Depth Electric Panel to Drain
IN 34 34 34 34 34 34 31 31 38 39 43 43 54 59 59 60 67 67 70
MM 864 864 864 864 864 864 787 787 965 991 1092 1092 1372 1499 1499 1524 1702 1702 1778
(I) Electric Panel Width
IN 22 22 22 22 22 22 22 22 32 32 32 40 40 40 44 44 44 44 60
MM 559 559 559 559 559 559 559 559 813 813 813 1016 1016 1016 1118 1118 1118 1118 1524
(J) Heater Width Overall
IN 30 30 30 30 30 30 23 23 32 32 37 40 41 53 53 53 58 64 64
MM 762 762 762 762 762 762 584 584 813 813 940 1016 1041 1346 1346 1346 1473 1626 1626
Minimum Clearances
(K) Horizontal to remove Elements
IN 15 15 15 15 15 15
MM 381 381 381 381 381 381
(L) Floor to Ceiling to Remove Elements
IN 95 95 95 95 95 95 95 95 95 95 95 95 95
MM 2413 2413 2413 2413 2413 2413 2413 2413 2413 2413 2413 2413 2413
(M) Front of Heater (min. to open door)
IN 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36 36
MM 914 914 914 914 914 914 914 914 914 914 914 914 914 914 914 914 914 914 914
(N) Sides and Rear of Heater
IN 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24
MM 610 610 610 610 610 610 610 610 610 610 610 610 610 610 610 610 610 610 610
All dimensions are approximate. Fulton reserves the right to change dimensions and/or specifi cations without notice.
*For unspecifi ed voltages, consult factory.
A E
J
G
I
FRONT
C F
B
D
H
SIDE
L
N
N
M
TOP
M
N
N
TOP B
D C
H
E
F
SIDE A
J
G
I
FRONT
K
Models FB-W 012-036
12 kW to 36 kW (1.2 to 3.6 BHP)
Models FB-W 050-700
50 kW to 700 kW (5 to 70 BHP)
FIGURE 1 - BOILER DIMENSIONS
