Item Part No.
Description
Qty.
1
E11-4-9000-101 Motor, 1.0 HP (PE1002T)
1
E11-4-9001-103 Motor (PEW1002T)
2
E05-6-9002-107 Gasket, Motor
1
3
E10-6-9003-102 Reservoir Cover Plate
1
4
E05-6-9004-101 Reservoir Gasket
1
5
E05-4-3000-101 Upper Plate Assembly
1
6
E05-6-9006-105 Eccentric 5/8" Shaft
1
7
622-6-0318-203
Bearing
1
8
E05-6-9007-107 Sleeve Eccentric Bearing
1
9(a) E10-4-4000-109 Piston Manifold
2
10
511-7-0064-109
O-ring
2
11
E05-4-5000-101 Lower Plate Assembly
1
12
E10-4-2000-109 Adapter Assy
1
13(b) 649-1-0060-407
Bolt, M6
10
14(b) 601-3-0064-106
Gasket
10
15(c,d) PW4
Control Valve, 4-way
1
16
649-1-0095-204
Socket Head Cap Screw
4
17(e) E05-4-8000-106 Manifold, Safety Valve
1
18
649-1-0063-403
Hex Head Bolt
4
19(f) E05-4-6001-108 Gear Pump Assy
1
20
H23-6-1000-102 Magnet
1
21
E10-3-9005-108 Reservoir
1
22(g) 532-3-0160-104
Special Washer
1
23(g) E05-6-8008-104 Parker Hex Plug
1
24
E11-6-3006-105 Drain Line
1
25
PEW01
Remote Pendant
1
(a)
E05-3-9940-102 Seal Kit for Item #9
-
(b)
E05-3-9902-105 Reservoir Bolt Repair Kit
-
(c)
E05-3-9911-106 Valve Assy Repair Kit
-
(d)
E05-3-9910-104 Valve Assy Bolt Repair Kit
-
(e)
E05-3-9980-105 Seal Kit for Item #17
-
(f)
E05-3-9960-109 Seal Kit for Item #19
-
(g)
E05-3-9901-103 Parker Hex Plug Repair Kit
-
--
F01
BVA Hydraulic Oil, 1 gal
-
--
F05
BVA Hydraulic Oil, 5 gal
-
INCLUDES MODEL NUMBERS:
PE1002T & PEW1002T
Electric Pumps
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com

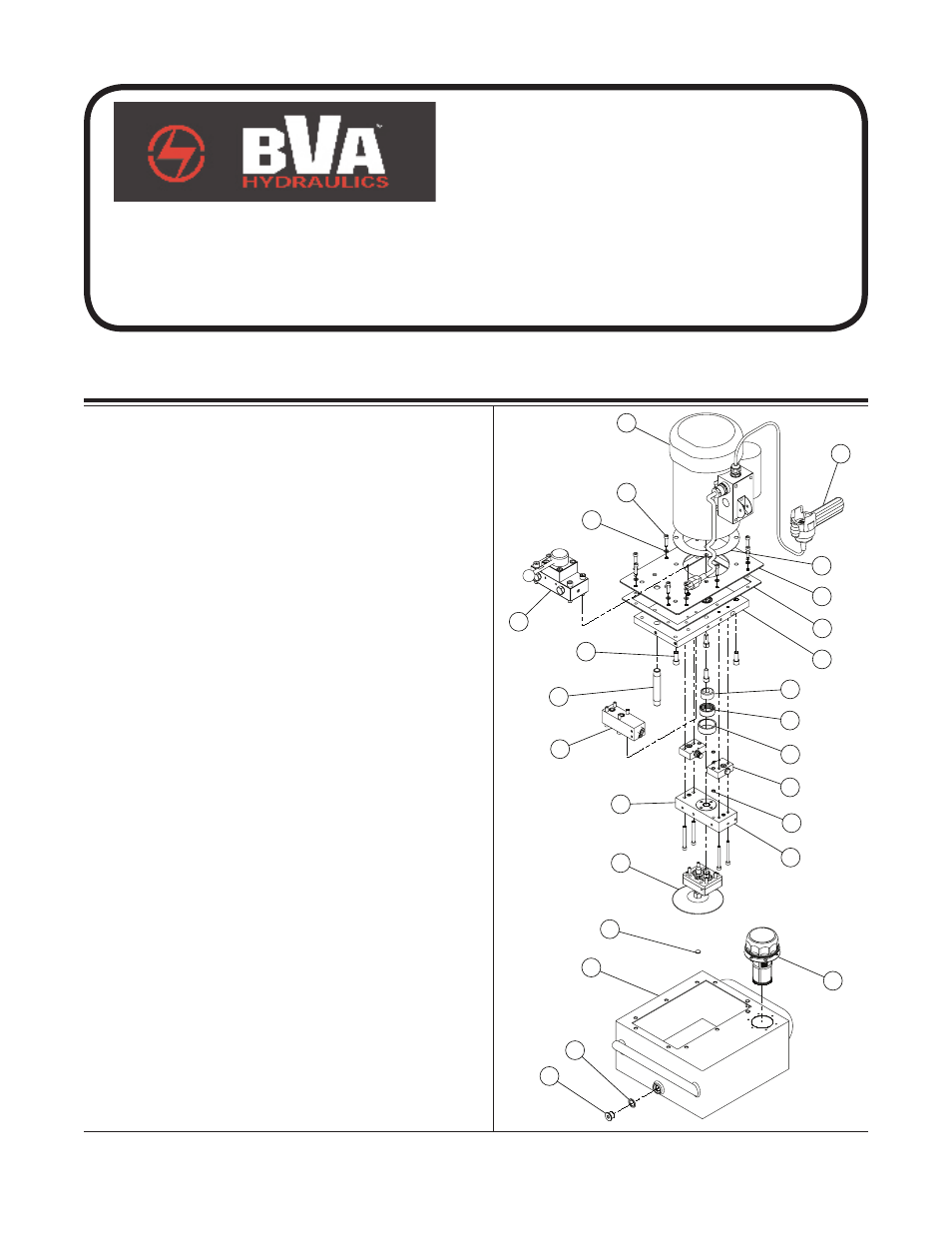

Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in
the assembly sequence.
Parts List
24
23
22
21
20
19
18
17
16
15
14
13
11
12
10
9
8
7
6
5
4
3
2
25
1
