10

Electric Pumps

Service Parts

INCLUDES MODEL NUMBERS:

PE3005T & PEW3005T

SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153

Tel: 888-332-6419 * Fax: 816-891-6599

E-mail: [email protected] Website: www.bvahydraulics.com

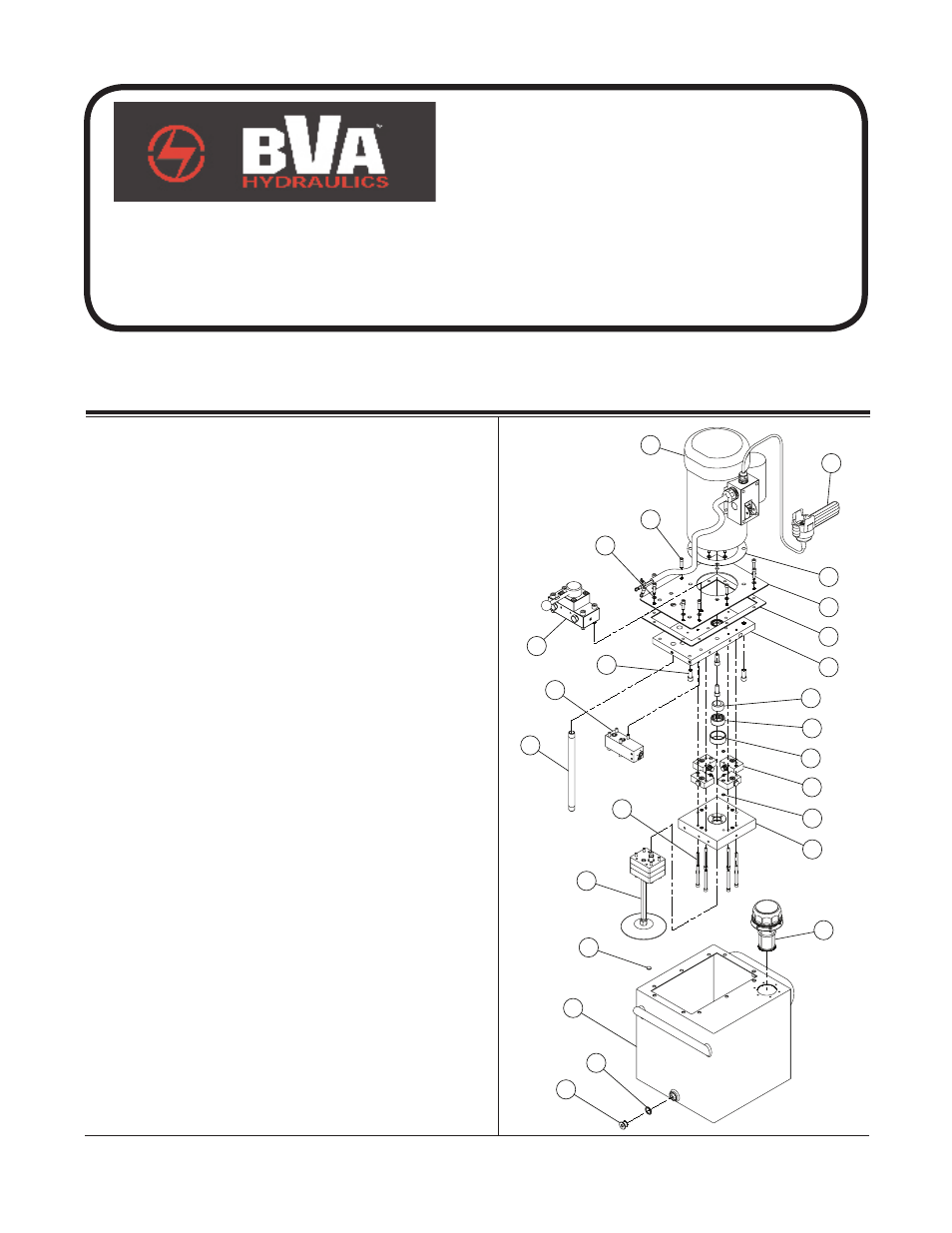

Parts List

Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in

the assembly sequence.

24

25

2

13

23

22

20

21

19

18

17

16

15

14

12

11

10

9

8

7

6

5

4

3

1

Item Part No.

Description

Qty.

1 E30-4-9003-106 Motor, 3 hp (PE3005) 1
E30-4-9001-102 Motor (PEW3005)
2

E05-6-9002-107 Gasket, Motor

1

3

E10-6-9003-102 Reservoir Cover

1

4

E05-6-9004-101 Reservoir Gasket

1

5

E30-4-3000-100 Upper Plate Assembly

1

6

E30-6-9006-104 Eccentric 5/8" Shaft

1

7

622-6-0318-203

Bearing

1

8

E05-6-9007-107 Sleeve Eccentric Bearing

1

9(a) E30-4-4000-105 Piston Manifold

4

10

511-7-0064-109

O-ring

2

11

E30-4-5000-100 Lower Plate Assembly

1

12

E10-4-2000-109 Adapter Assembly

1

13(b) 649-1-0060-407

Bolt

10

14(b) 601-3-0064-106

Gasket

10

15(c,d) E05-4-1000-101 Control Valve, 4-way

1

16

649-1-0095-204

Socket Head Cap Screw

4

17(e) E05-4-8000-106 Manifold, Safety Valve

1

18

649-1-0063-403

Socket Head Cap Screw

8

19(f) E30-4-6000-105 Gear Pump Assembly

1

20

H23-6-1000-102 Magnet

1

21

E30-3-9005-104 Reservoir

1

22(g) 532-3-0160-104

Drain Plug Washer

1

23(g) E05-6-8008-104 Hex Plug

1

24

E11-6-3008-109 Drain Line

1

25

PEW01

Remote Pendant

1

(a)

E15-3-9940-101

Piston Blk Assy Repair Kit

-

(b)

E05-3-9902-105

Reservoir Bolt Repair Kit

-

(c)

E05-3-9911-106

Valve Assy Repair Kit

-

(d)

E05-3-9980-104

Valve Assy Bolt Repair Kit

-

(e)

E05-3-9910-105

Manifold Assy Repair Kit

-

(f)

E15-3-9960-107

Gear Pump Repair Kit

-

(g)

E05-3-9901-103

Parker Hex Plug Repair Kit

-

--

F01

BVA Hydraulic Oil, 1 gal

-

--

F05

BVA Hydraulic Oil, 5 gal

-
