Knape&Vogt PKF-150 Series - Manual (Page 2)

SLIDING DOOR HARDWARE - Pocket Door
1
2

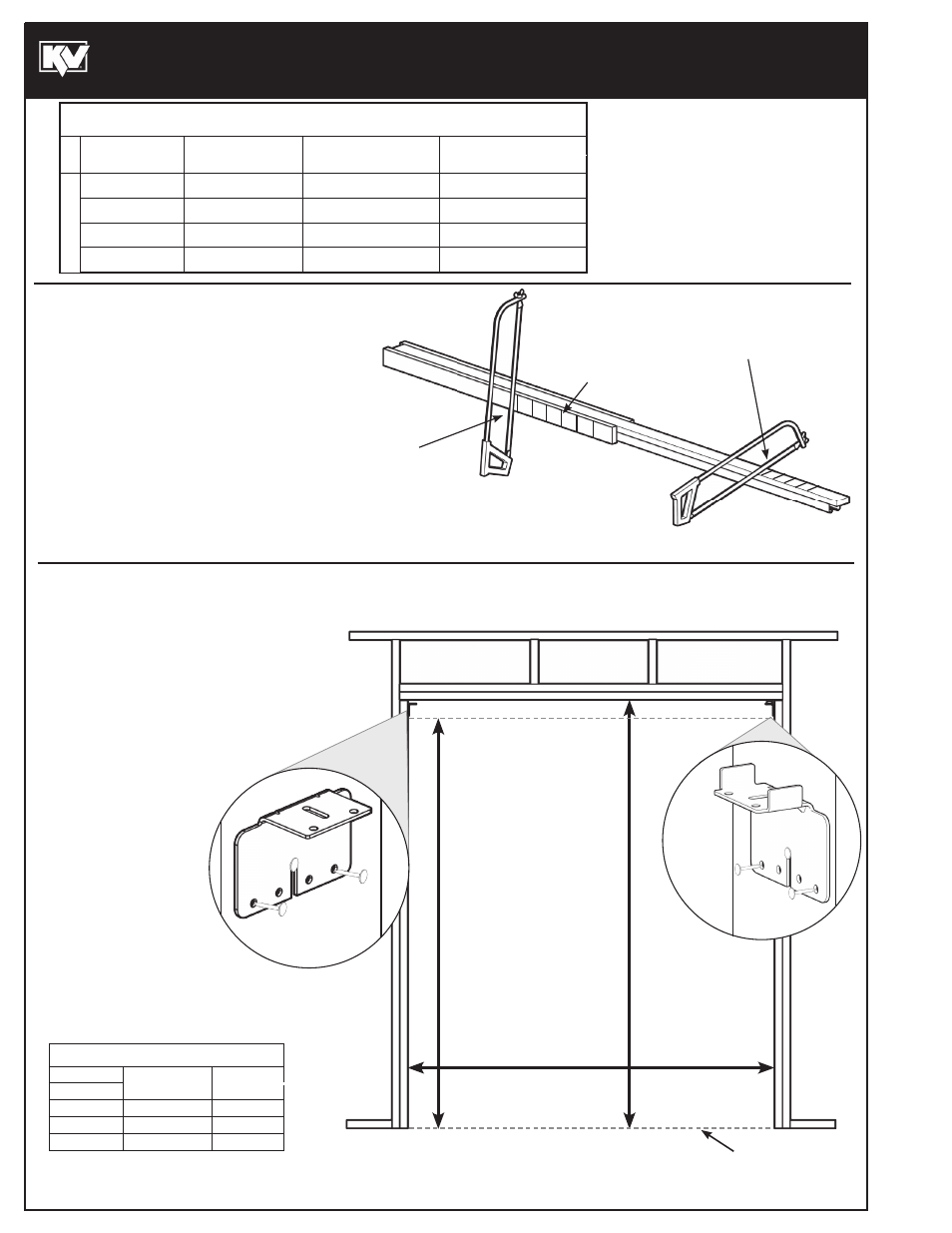

SIZE tRACK & HEADER
PREPARE ROuGH OPENING
• The header assembly comes configured for 3' doors.
• For alternate door widths cut header and nailing
strips to length shown in Table 1.
Assembly
Instructions
#310309_C (1013)
table 1: Key Dimensions by Door Width (D)
Header Length Nailing Strip Length Rough Opening Width
(t) (H) (W)
24" [610] 46-5/8" 25" 49"
30" [762] 58-5/8" 31" 61"
36" [914] 72-5/8" 37" 73"
Custom (2 x D) - 1-3/8" D + 1" (2 x D) + 1" Door Width
(D)
(If floor covering to be used is greater than 3/4" thick,
a sole strip of equal thickness must be added
OR an
equal amount can be cut off the bottom of the door.)
Note: Track will be 1-1/2" shorter than header.
table 2: Dimensions by Door Height
Rough Opening Bracket
Opening Height Nail Height
6'8" door 85-1/8" 81-3/8"
7' door 89-1/8" 85-3/8"
8' door 101-1/8" 97-3/8"
• Prepare rough opening width based on values
from Table 1 and rough opening height based
on values from Table 2.
• Mark each side of rough opening above finished floor
at bracket nail height dimension in Table 2.
• Slide the slot in the “pocket” end bracket over
nail head, level with doorway bracket and
seat nail. Double check, level and
drive additional nails as shown.
• “Doorway” end bracket
mounts to jamb in
“doorway” level
and secure with
additional nails.
• If floor covering
(carpet, etc.) is more
than 1/4” in thickness:
1. Cut off bottom of door
OR
2. Use sole strip in pocket opening
equal to thickness of floor covering and
as wide as the width of the frame.
A) Cut wood header at stamped size
mark line.
A) Coupez le linteau en bois à la ligne
de marquage de taille estampée.
A) Corte la cabecera de madera por la
línea de marca de tamaño estampada.
B) Turn on side to cut nailing boards. Cut both nailing boards at
required mark line. Being careful NOT to cut header board or track.
B) Tournez sur le côté pour couper les fonds de clouage. Coupez
les deux fonds de clouage à la ligne de marquage requise.
B) Gire sobre su lado las placas para clavar. Corte ambas placas
para clavar por la línea de marca requerida. C) Turn track assembly over
and cut track 1-1/2" shorter than
wood header.
C) Retournez l’ensemble de rail et
coupez le rail à 3,8 cm de
l’extrémité du linteau en bois.
C) Gire el conjunto del carril y corte el carril a 3,8 cm más
atrás del extremo de la cabecera de madera.
Note: Markings for standard door
widths.
Nota: Marques pour largeurs de
porte standard.
Nota: Marcas para anchuras de
puerta estándar.
Note: In the following illustrations,
the doorway opening is to the left.
Nota: Dans les illustrations suivantes,
l’ouverture d’entrée de porte est à gauche.
Nota: En las figuras siguientes, la apertura
de la entrada es hacia la izquierda.
Width (from Table 1)
Largeur (Du Tableau 1)
Anchura (de la Tabla 1)
Finished floor OR Sole Strip
Sol fini Ou Semele
Piso acabado O listón del piso
Opening Height
Hauteur d’Ouverture
Altura de la abertura
Bracket Nail Height
Hauteur de Clou de Support
Altura del clavo del soporte
Pocket
Partie
coulissante
escamotable
Cavidad
Doorway
Entrée de porte
Entrada
