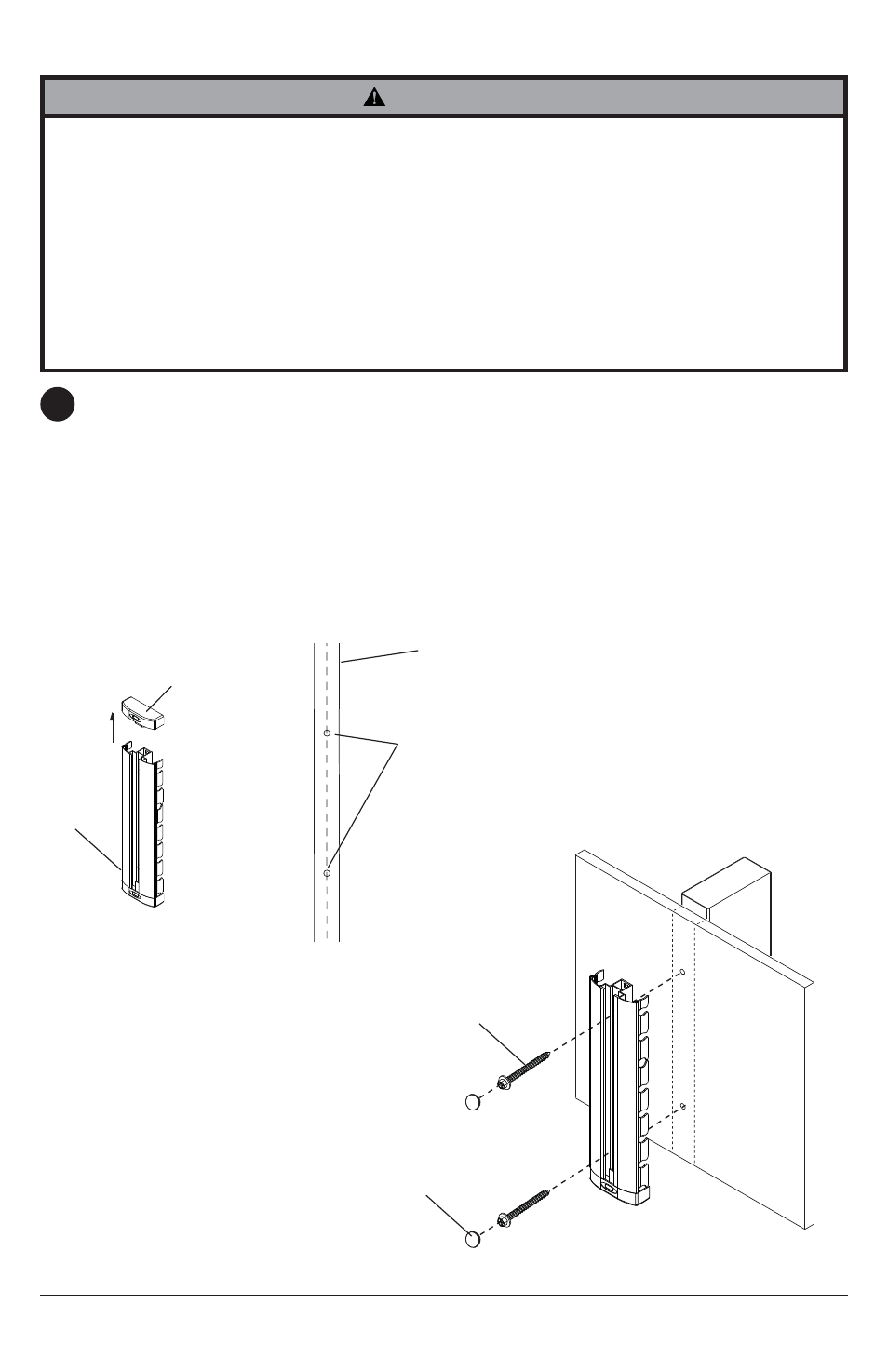

Remove end cap with bubble level from column (A). Column (A) can be mounted to a single
stud. Use a stud fi nder to locate the edges of the stud. Use of an edge-to-edge stud fi nder is
highly recommended. Based on their edges, draw a vertical line down the stud’s center. Place
column (A) on wall as a template. Level column and mark the center of the two mounting holes
as shown in fi gure 1.1. Make sure that the center mounting holes are on the stud center lines.
Drill two mounting holes .12" (3mm) dia. by 2" (51mm) deep. Secure column (A) with two
M5 X 44mm wood screws (B) as shown in fi gure 1.2.
Tighten fasteners then cover M5 X 44mm wood screws (B) with screw covers (H).
Skip to step 3
Installation to Single Wood Stud Wall
STUD
DRILL .12" DIA
HOLES
END CAP
A
B
H
• Installer must verify that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
• Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening
can damage the screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to
edge" stud fi nder is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into
wood studs. Installers are responsible to provide hardware for other types of mounting situations.
WARNING
