Page 38

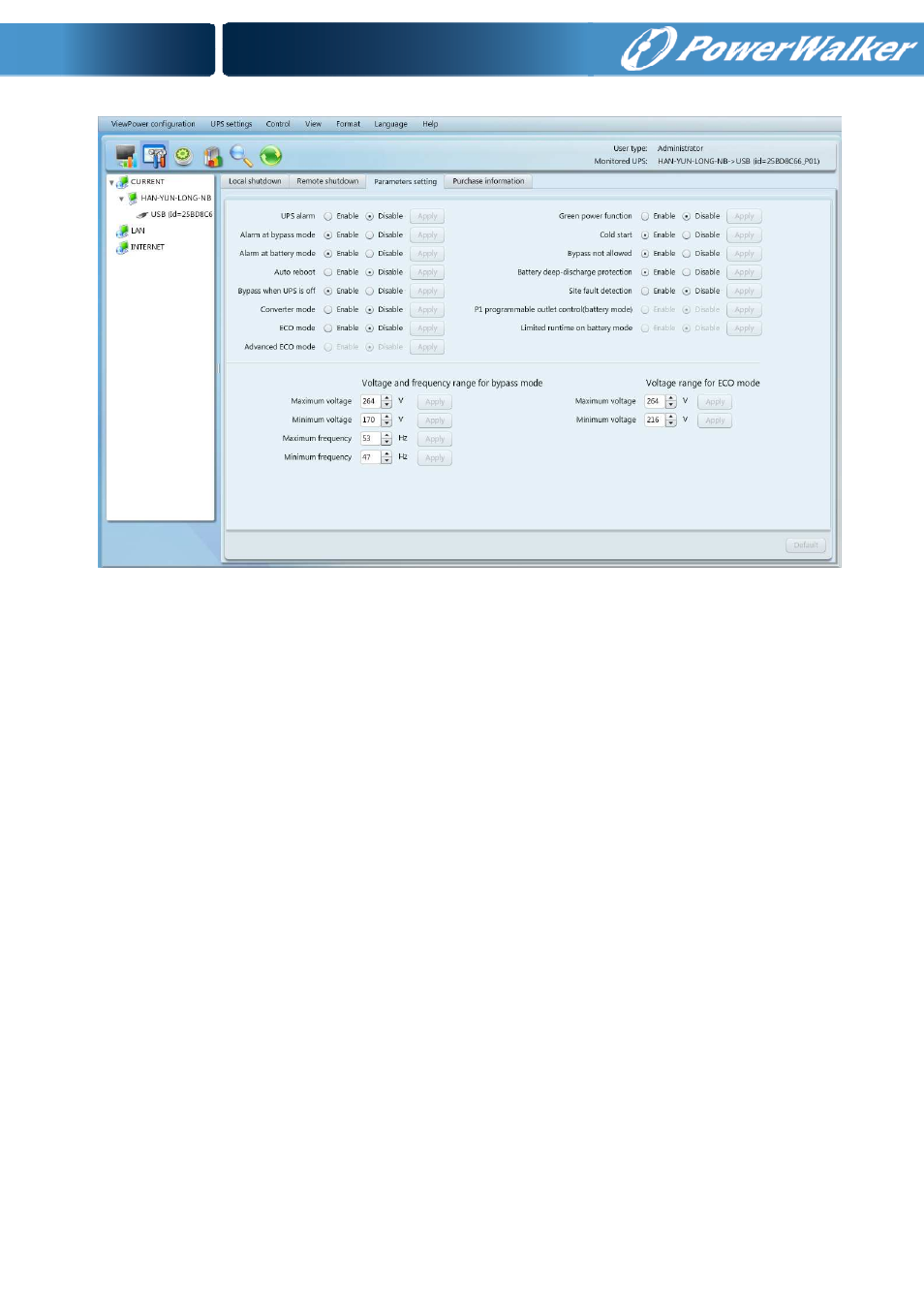

Diagram 5-13

NOTE: This screen may be different for different types of UPSs.

Step 2

Select the functions by clicking “Enable” or “Disable” button. Or change the

numbers by clicking up-down arrows or modify the numbers directly in the

number column.

Step 3

Click “Apply” button to save the settings. Each function setting is saved by

clicking each “Apply” button.

NOTE1: Any functions which are not supported by UPS will not be able to access.

NOTE2: Click “Default” button to recover the default setting.

UPS alarm: If enabled, UPS alarm will be activated. Vice versa.

Alarm at bypass mode: If enabled, UPS alarms when it’s working at bypass

mode. Vice versa.

Alarm at battery mode: If disabled, UPS will not alarm when it’s working at

battery mode. Vice versa.

Auto reboot: If enabled, UPS will auto recover when AC is recovering. Vice

versa.

Bypass when UPS is off: If enabled, AC will directly provide power to connected
