INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU03945
Seats
Rider seat
To remove the rider seat
1. Insert the key into the seat lock,
and then turn it as shown.
2. Pull the rider seat off.
To install the rider seat
1. Insert the projection on the front of
the rider seat into the seat holder
as shown, and then push the rear
of the seat down to lock it in place.
2. Remove the key.
Passenger seat
To remove the passenger seat
1. Remove the rider seat.
2. Pull the passenger seat up.
To install the passenger seat
1. Slide the receptacle on the rear of
the passenger seat over the seat
holder as shown, and then push
the front of the seat down.
2. Install the rider seat.
NOTE:
_
Make sure that the seats are properly
secured before riding.
_

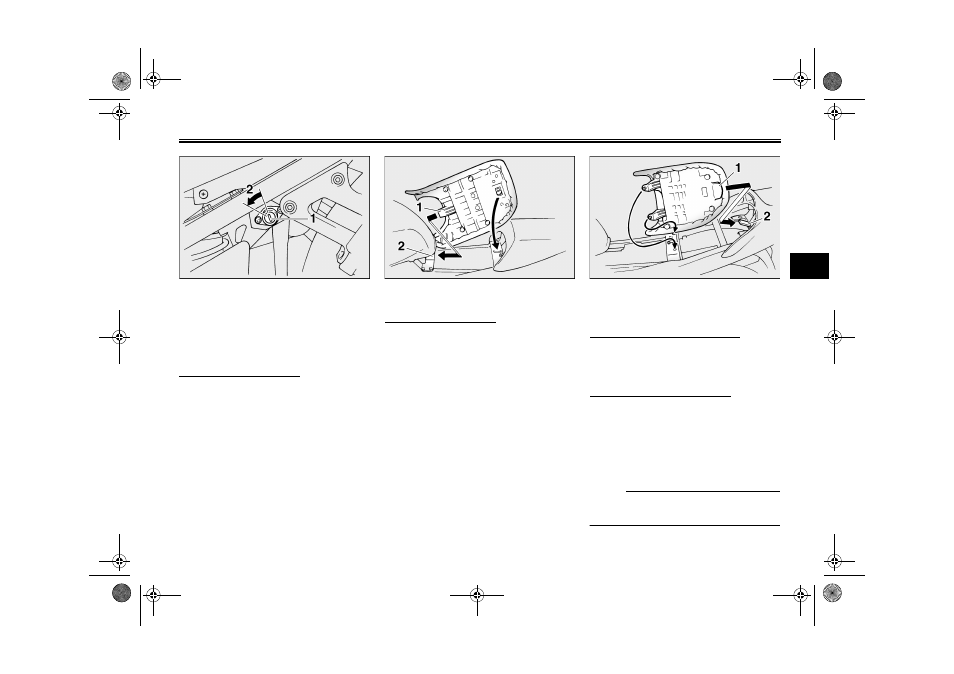

1. Rider seat lock
2. Unlock. 1. Projection
2. Seat holder 1. Receptacle
2. Seat holder
