Prints a ruler line across the paper.
A ruler line is normally used to divide the printout into logical parts to make it easier to read. A
ruler line is actually an area defined by a start X-Y position and a stop X-Y position. This area
is filled with black or a checkered pattern.

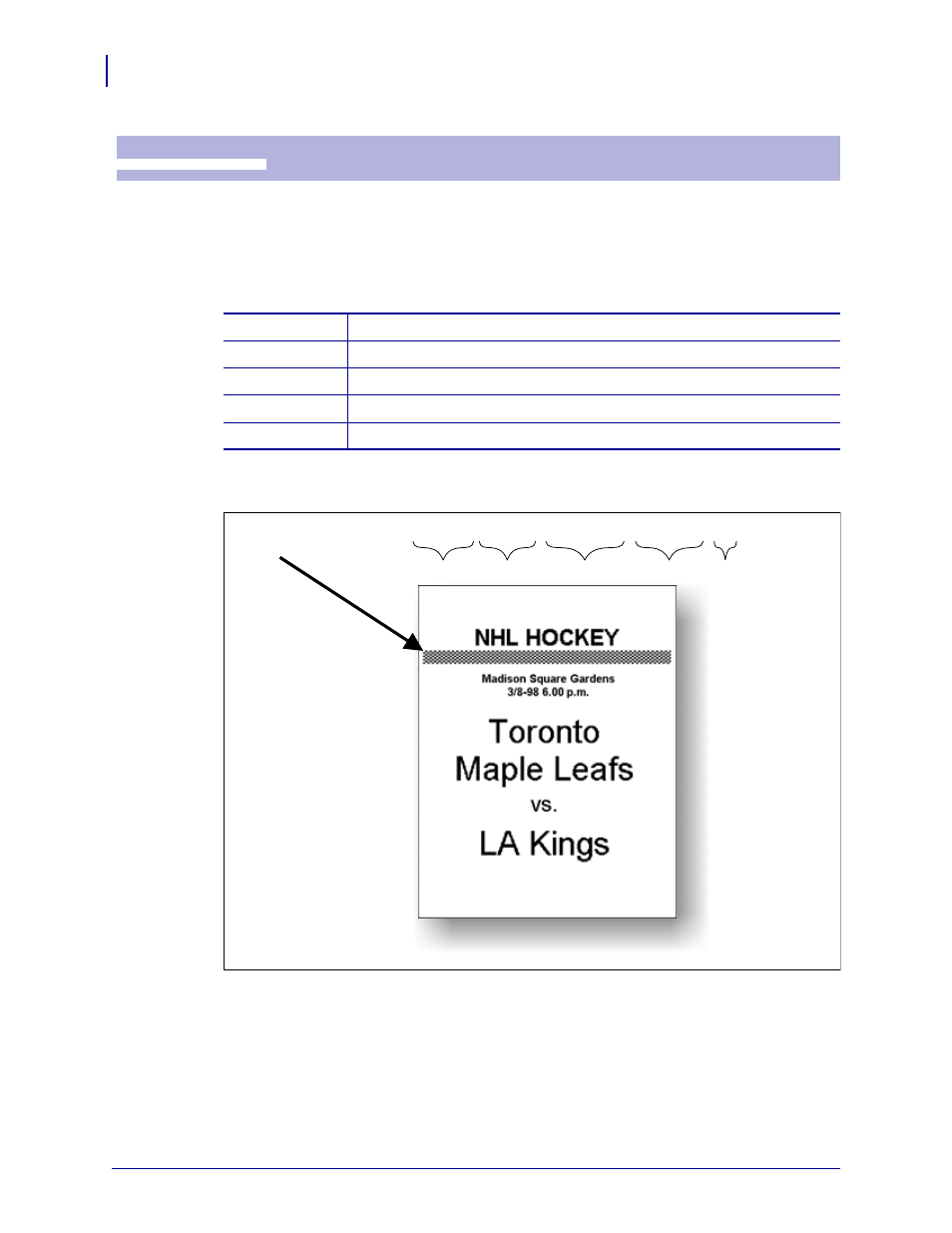

Figure 18 • Printout with checkered ruler line
ESC r n1...n9
Print Ruler Line
1B 72 n1...n9 hex
27 114 n1...n9 decimal
n1n2 Two byte definition of the X start position
n3n4 Two byte definition of the Y start position
n5n6 Two byte definition of the X stop position (must be larger than n1n2)
n7n8 Two byte definition of the Y stop position (must be larger than n3n4)
n9 Fill pattern, 0=black, 3= Checkered
r<0><0><0><0><1><193><0><24><3>
X start Y start X stop Y stop Fill:
0=black
1=fine
2=medium
3=coarse
SW99006B
