Using the PFM R33 / R36 Receiver
IMPORTANT: If Alkaline (nonrechargeable) batteries are being installed, slide the battery selec-
tion switch in the battery compartment to the “Alkaline” position. See FIG 5 below. If installing
NiMH (or rechargeable) batteries, slide the battery selection switch to the “NiMH” position.
1. Install two (2) AA batteries. Note: rechargeable batteries must be charged before use. See Bat-
tery Information on page 11.
2. (Applies only to R36) Insert the small plug mount microphone (MIC 014) into the “Mic Jack” ( )
on the top of the receiver. See FIG 7 below.
3. Plug the earphone or headphone into the “Headphone Jack” ( ) on top of the receiver. See FIG 8 /
FIG 9. Place the headphones on your head or earphone in your ear.
4. Turn the power on by rotating the “On/Off/FM Volume” knob clockwise. The “Power On Indicator”
( ) should illuminate green.
5. Select the desired operating frequency. Locate the “Channel Selector” inside the battery door (See
FIG. 5). Use the supplied small screwdriver to rotate the switch to the desired channel (See FIG. 9,
Page 10: Channel Selection Chart).
7
H e l p i n g P e o p l e H e a r
6
H e l p i n g P e o p l e H e a r

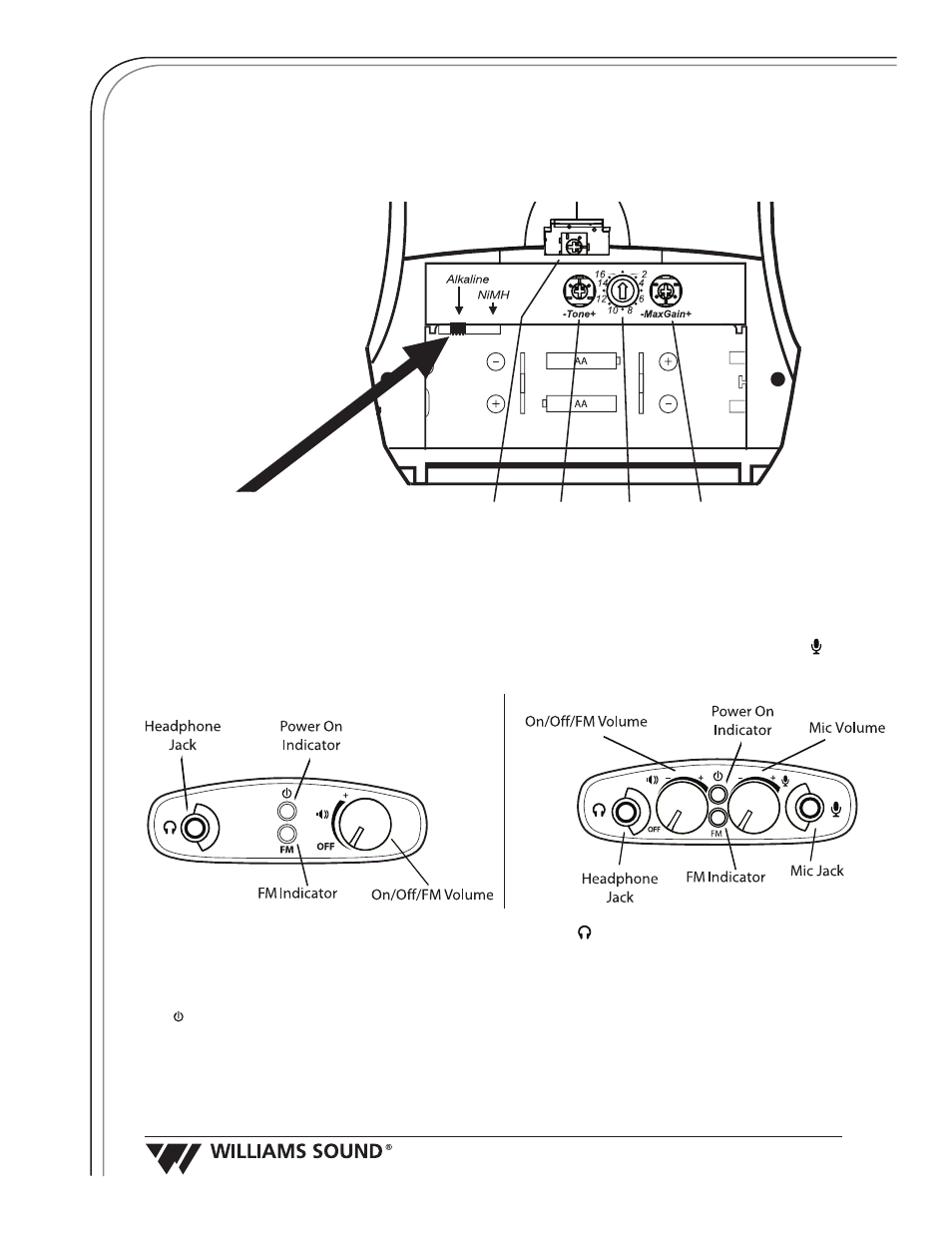

FIG. 5: Battery Selection Switch /
ConFIGuration Controls
1 2 3 4
1. Squelch 3. Channel Selector
2. Tone Control 4. Max Gain Control
Battery Selection Switch
FIG. 6: R33 Top View
FIG. 7: R36 Top View
