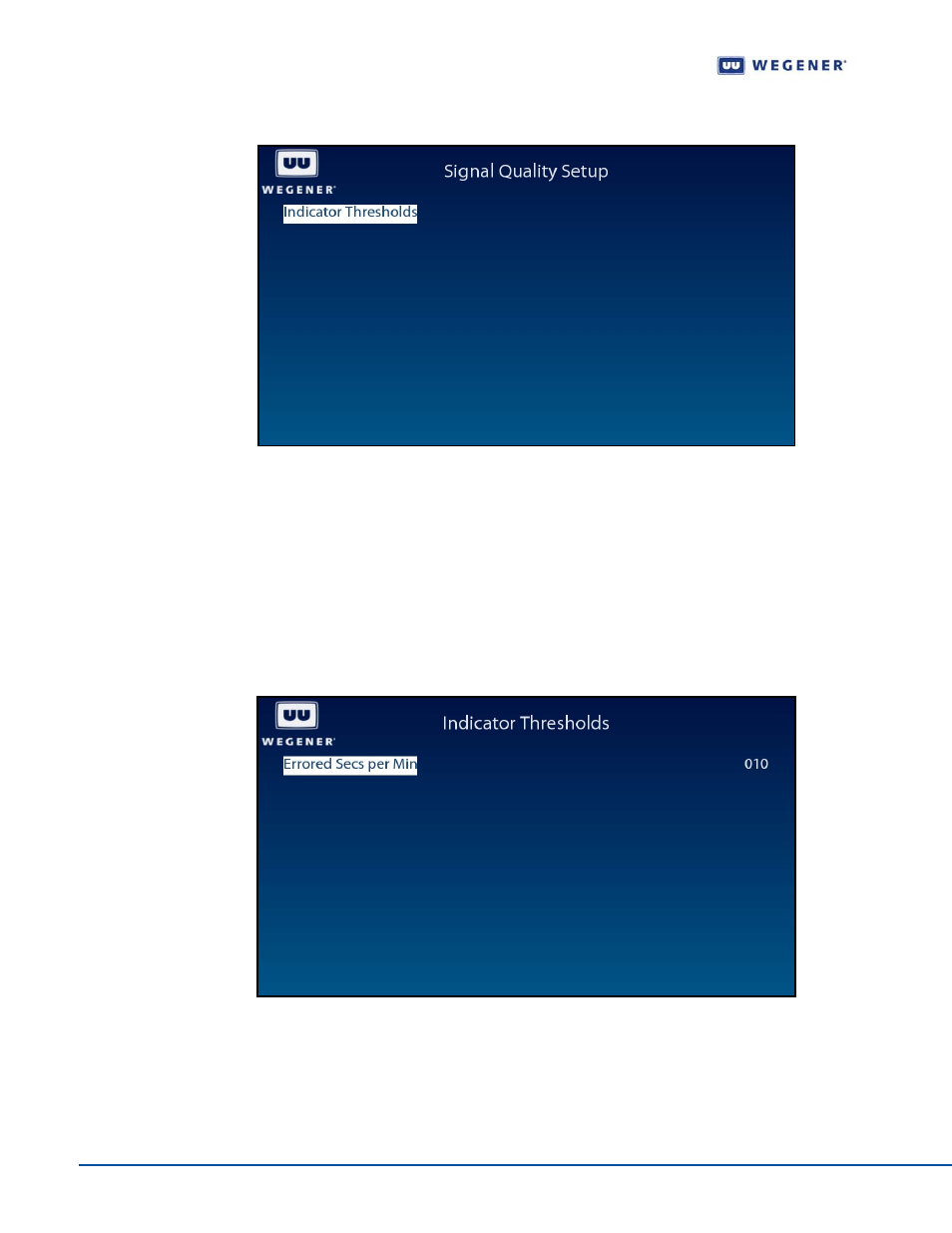

Figure 3.7: iPump 562 OSD Signal Quality Setup Screen
Indicator Threshold screen
Use following steps to display the
Indicator Threshold
screen on the OSD menu:
1. From the
Signal Quality Setup
screen, ensure that
Indicator Thresholds
is selected.
2. Press
Enter
to display the
Indicator Threshold
screen shown in
.
3. To navigate the screen, press
Enter
to highlight the value. Use up or down buttons to
set to the desired setting. Press
Enter
when done. Use left arrow to exit to the
previous menu level.
Figure 3.8: iPump 562 OSD Indicator Threshold Screen
Use the
Indicator Threshold
screen to set and display the warning condition.
