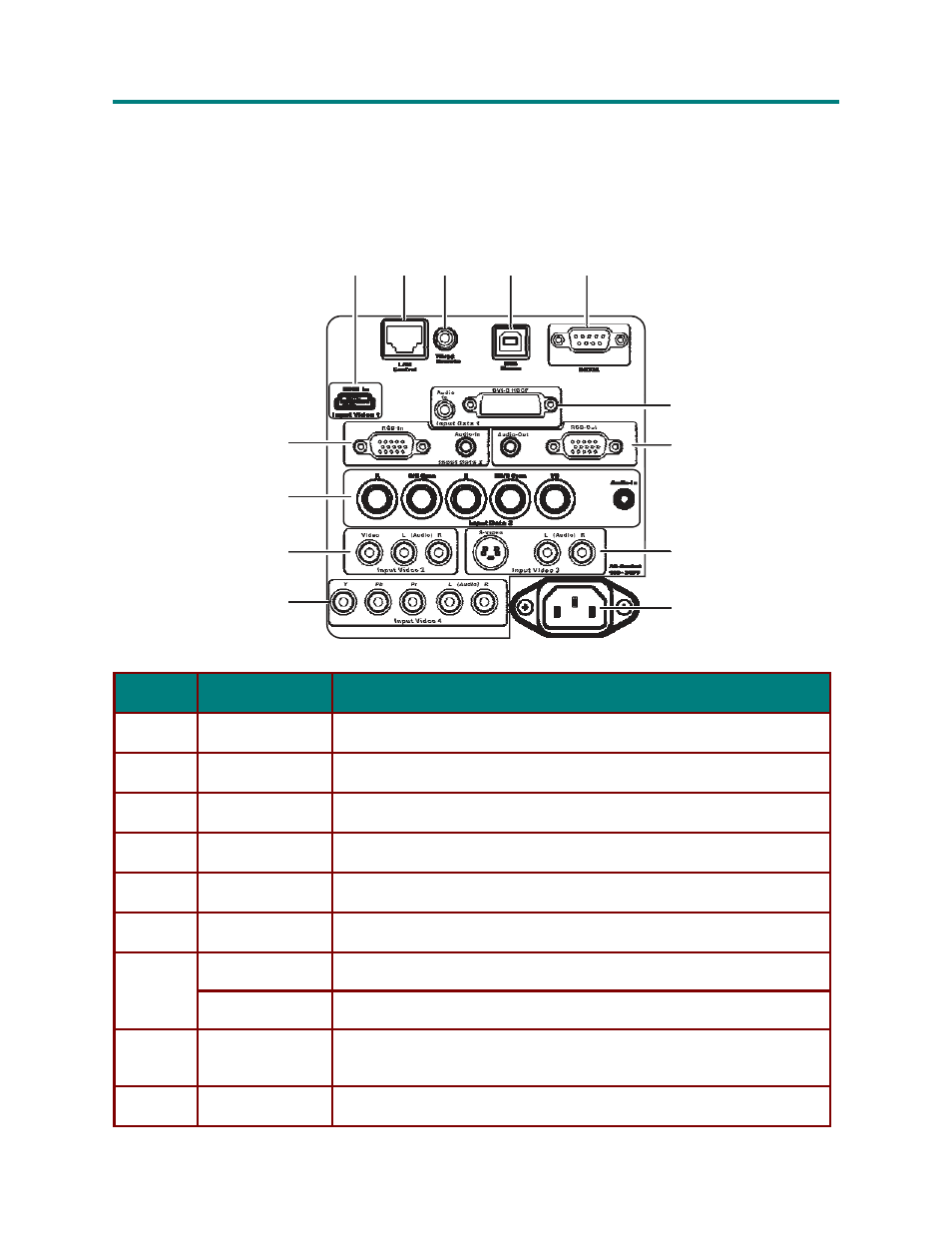

Connecting Input Devices
A PC or notebook computer as well as video devices can be connected to the projector at the same
time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital
still cameras. Check the user manual of the connecting device to confirm it has the appropriate output
connector.
1
2
3
4
5
6
13
7
12
11
8
10
9
I
TEM
L
ABEL
D
ESCRIPTION
1.
Input Video 1
Connect an HDMI cable from an HDTV
2.
LAN Control
Connect a LAN cable for controlling projector through a PC
3.
Wired Remote
Connect a wired remote control
4.
USB Mouse
Connect the USB cable from a computer
5.
RS232
This is a service port for firmware upgrades.
6.
Input Data 1
Connect a DVI computer cable from a computer
Audio-Out
Connect an audio cable to external speakers
7.
RGB-Out
Connect an RGB cable to an external monitor
8.
Input Video 3
Connect an S-video cable to the S-video connector
Connect an RCA audio connector to L/R audio connectors
9.
Power
Connect the supplied power cord
