United States Stove Company 1600EF - Manual (Page 9)

9 USSC
Read and follow these instructions in the event you have
to replace or re-assemble components of your furnace.
Insert door handle into door. From rear side of door, place
a 1/2” washer over the threaded part of the handle, then
attach the lock nut. Tighten the nut, then back off 1/4
turn to allow free operation of the handle.
Follow these same directions for the ash door handle as-
sembly.
(2) Door Handle
(2) 1/2” Washer
(2) 1/2” Lock Nut
Screw the spin draft onto the 3/8” x 2-1/2” carriage bolt.
Then screw the spin draft and bolt into the ash door al-
lowing approximately 1/2” of the bolt to stick through the
back side of the ash door. Secure the bolt in place with
the 3/8”-16 lock nut.
(1) Spin Draft
(1) 3/8-16 Carriage Bolt
(1) 3/8-16 Lock Nut
With two 1/4-20 x 3/4 hex bolts each, attach the door
latches to the door latch mounting brackets on the left
side of the door frames as illustrated. The slots in the brack-
ets and latches are for door seal adjustment. Make the
proper adjustments, then tighten the nuts. The door’s gas-
ket should be snug against the door frame on the furnace.
Feed Door
Illustration
Ash Door
Illustration
(1) Feed Door Latch
(1) Ash Door Latch
(4) 1/4-20 x 3/4 Hex Bolt
(4) 1/4-20 Kep Nut
BRACKET
Insert the Shaker Rod into the hole on the ash door frame
as shown. Then attach the Shaker Bracket to the front of
the furnace using two 1/4-20 x 3/4” Hex Bolts and two 1/4-
20 Lock Nuts. Next, insert the shaker Rod into the bracket
and attach to the shaker grate bar using the 1/4-20 x 1”
Hex Bolt and a 1/4-20 Lock Nut. The bolt and nut retaining
the shaker bar and rod should be left loose to allow free
movement of the grates.
(1) Shaker Rod
(1) Shaker Bracket
(1) 1/4-20 x 1” Hex Bolt
(2) 1/4-20 x 3/4” Hex Bolt
(3) 1/4-20 Lock Nut
FRONT
SMOKE CURTAIN
SMOKE CURTAIN
CLIP
NUT
BOLT
1/4-20 NUT
SMOKE CURTAIN
CLIP
1/4-20 x 1-1/4
CARRIAGE BOLT
SMOKE CURTAIN
Using two 1/4-20 x 1-1/4” Carriage bolts, the smoke cur-
tain clips and two nuts, attach the smoke curtain in place
above the Fuel Feed Door as shown below. After installa-
tion, the smoke curtain should swing freely back into the
furnace.
(1) Smoke Curtain (2) Smoke Curtain Clips
(2) 1/4-20 x 1-1/4 Carriage Bolt (2) 1/4-20 Kep Nut

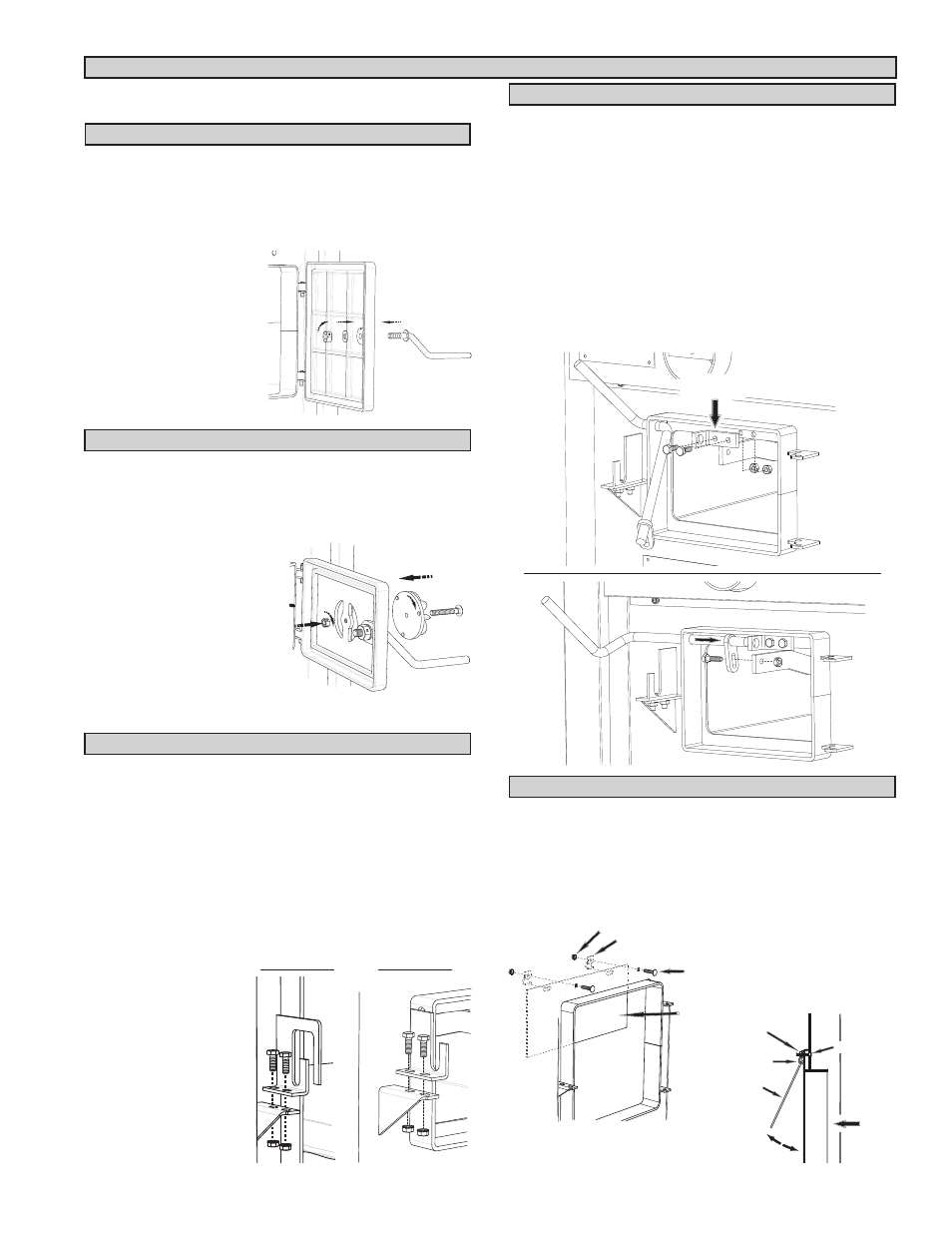

FURNACE ASSEMBLY INSTRUCTIONS
DOOR HANDLES
SHAKER GRATE HANDLE
ASH DOOR SPIN DRAFT
SMOKE CURTAIN
FUEL & ASH DOOR LATCH
