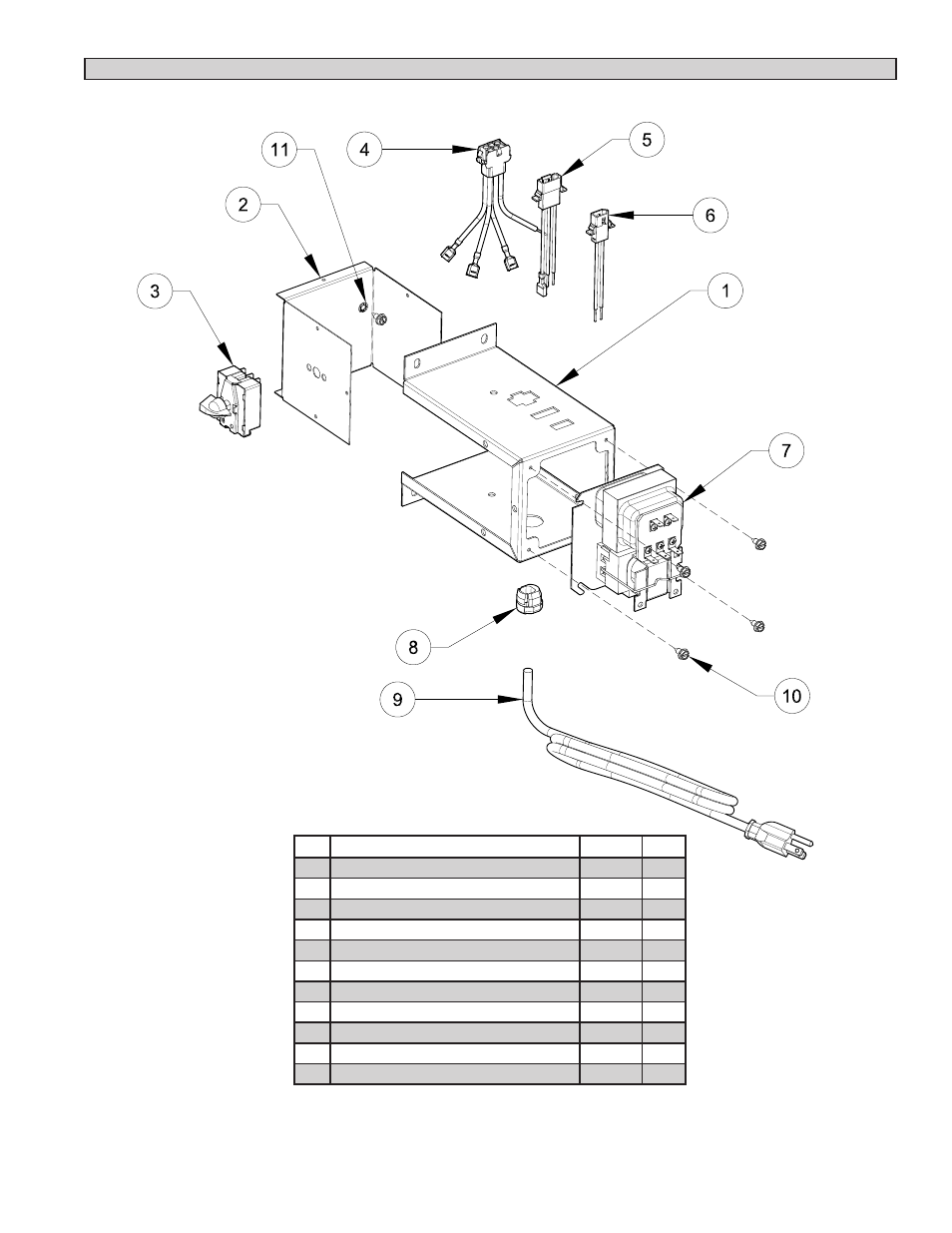

PARTS DIAGRAMS AND LISTS - FAN CENTER CONTROL

Key Description

Part #

Qty

1

Electrical Box Cover

25742

1

2

Electrical Box Body

25743

1

3

Switch, 3-Position

80361

1

4

Harness, 6 Circuit Receptacle

80583

1

5

Harness, 3 Circuit Receptacle

80584

1

6

Harness, 2 Circuit Receptacle

80585

1

7

Transformer, Fan Center

80130

1

8

Strain Relief

80154

1

9

Power Supply Cord

80232

1

10

#10 x 1/2 Sheet Metal Screw

83172Z

13

11

Washer, Internal tooth, #10

83240

1
