5.2.2 Viewing bandwidth summary
Via Web Interface
To view the bandwidth statistics via the web interface:
• Click on one of the “Fibre Channel” graphics
• Click on the “Statistics” tab
• Click the radio button next to “Bandwidth”
The graphing tool provides the option to view read, write, and total
bandwidth, as well as a running average of each of these statistics.
To decode the colors on the graphical display, see the legend below
the check boxes.

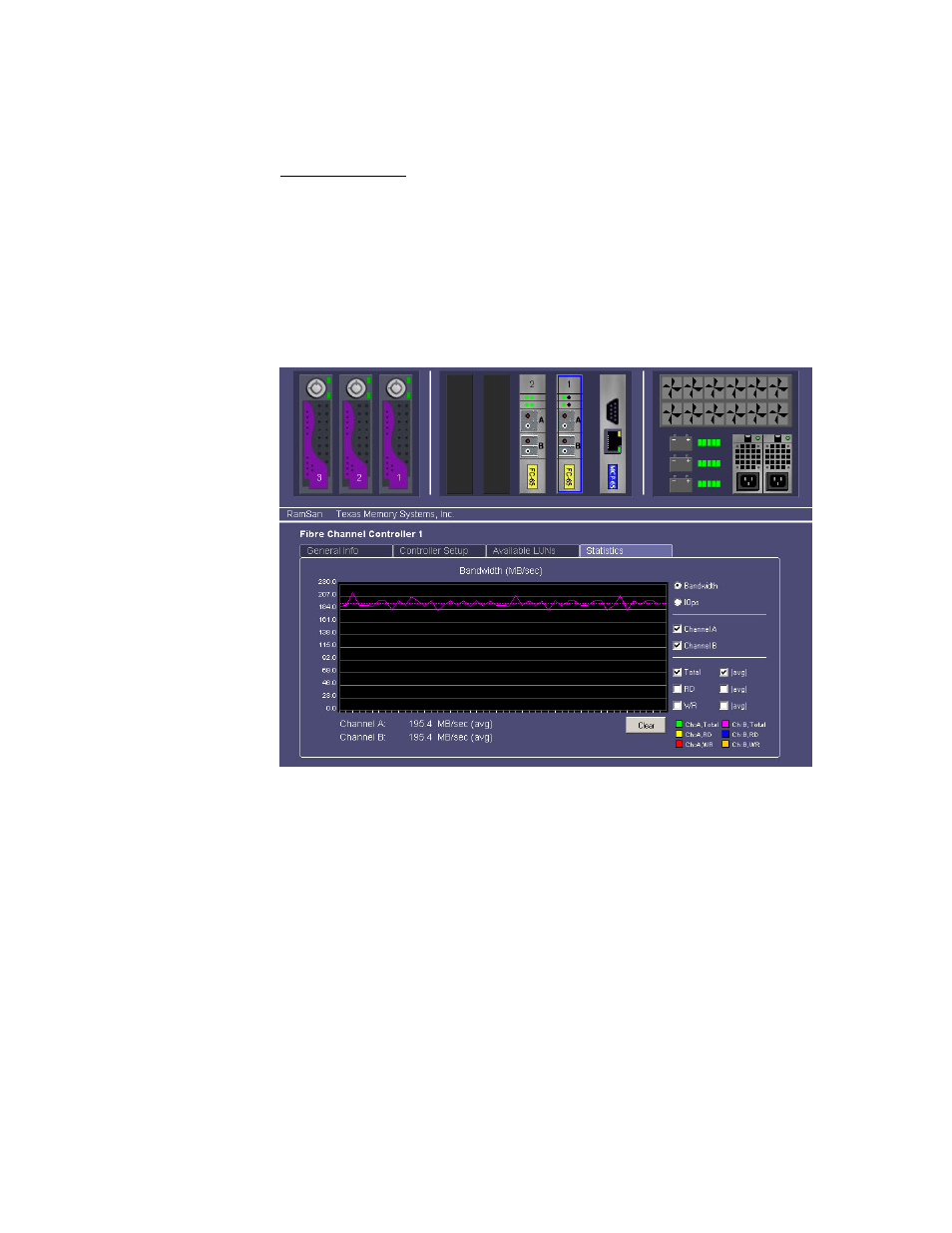

Figure 5-14: Bandwidth Performance Graph via Web Interface
RamSan-300/320 User’s Manual - 48 -
