Netopia 4652 - Manual (Page 11)

Making the Physical Connections 2-11
Netopia 4652 SDSL/IDSL Router Status Lights

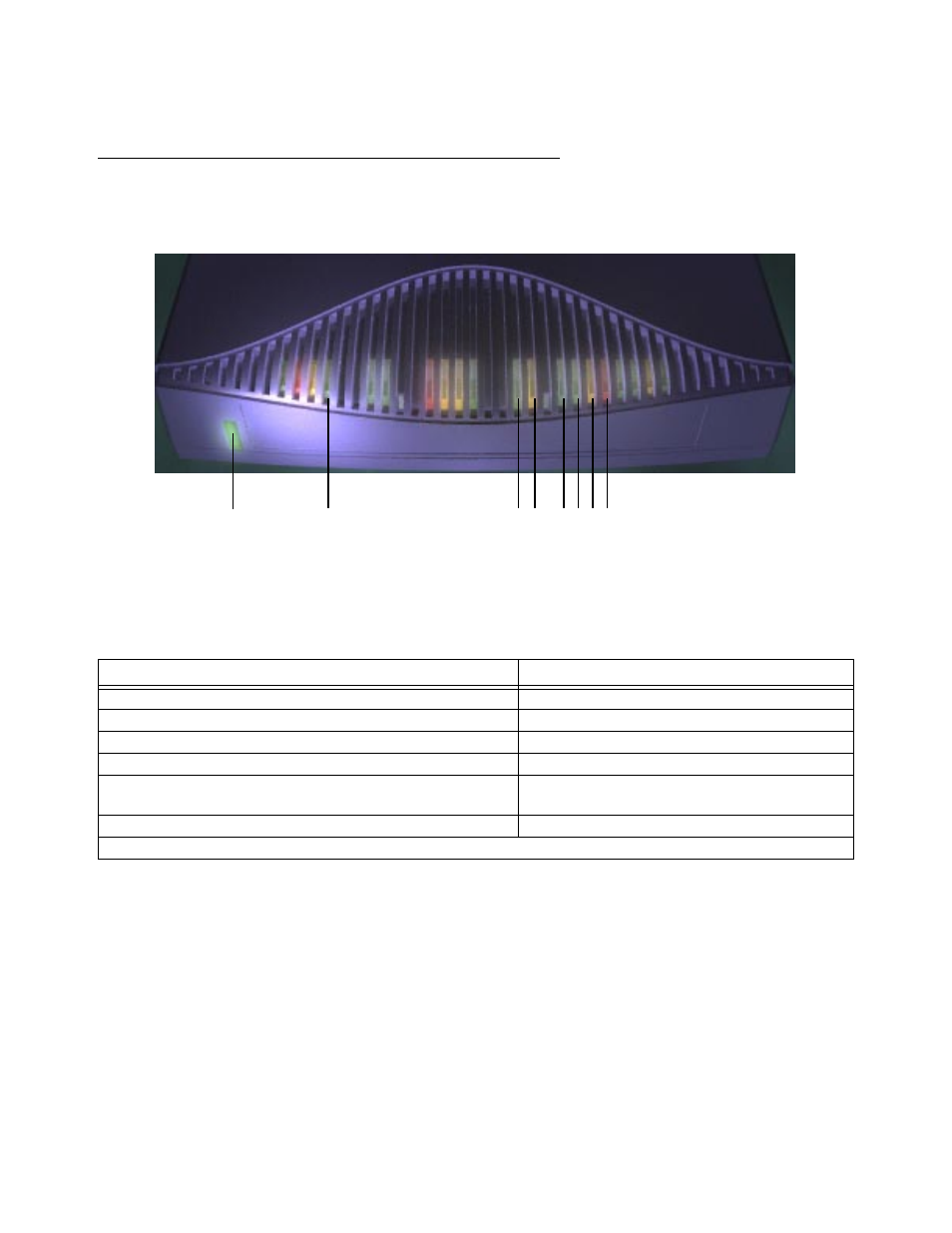

The figure below represents the Netopia 4652 status light (LED) panel.
Netopia 4652 LED front panel
The following table summarizes the meaning of the various LED states and colors:
When this happens... the LEDs...
The power is on Power is green.
The Router detects an error Alert is red.
The WAN is training SDSL or IDSL flashes green.
The WAN has trained SDSL or IDSL is green.
An Ethernet por t is connected to an Ethernet link par tner
device P1 , P2 , P3 , or P4 Ethernet is solid green.
An Ethernet por t has traffic P1 , P2 , P3 , or P4 Ethernet flashes green.
Note: The remaining LEDs are not used.
POWER
SDSLIDSL
P1 P2 P3 P4
ETHERNET
ALERT
