Page 62 of 906 Overview
553-3001-211 Standard 3.00 August 2005
3 Install the cable that connects the backplane connector on the IPE
module to the module I/O panel.
4 Connect a 25-pair cable from the module I/O panel connector to the Main
Distribution Frame (MDF).
5 Connect the trunk card output to the selected terminal equipment at the
MDF.
6 Configure the individual trunk interface unit using the Trunk
Administration program (LD 14) and the Trunk Route Administration
program (LD 16).
Once these steps have been completed, the trunk card is ready for use.

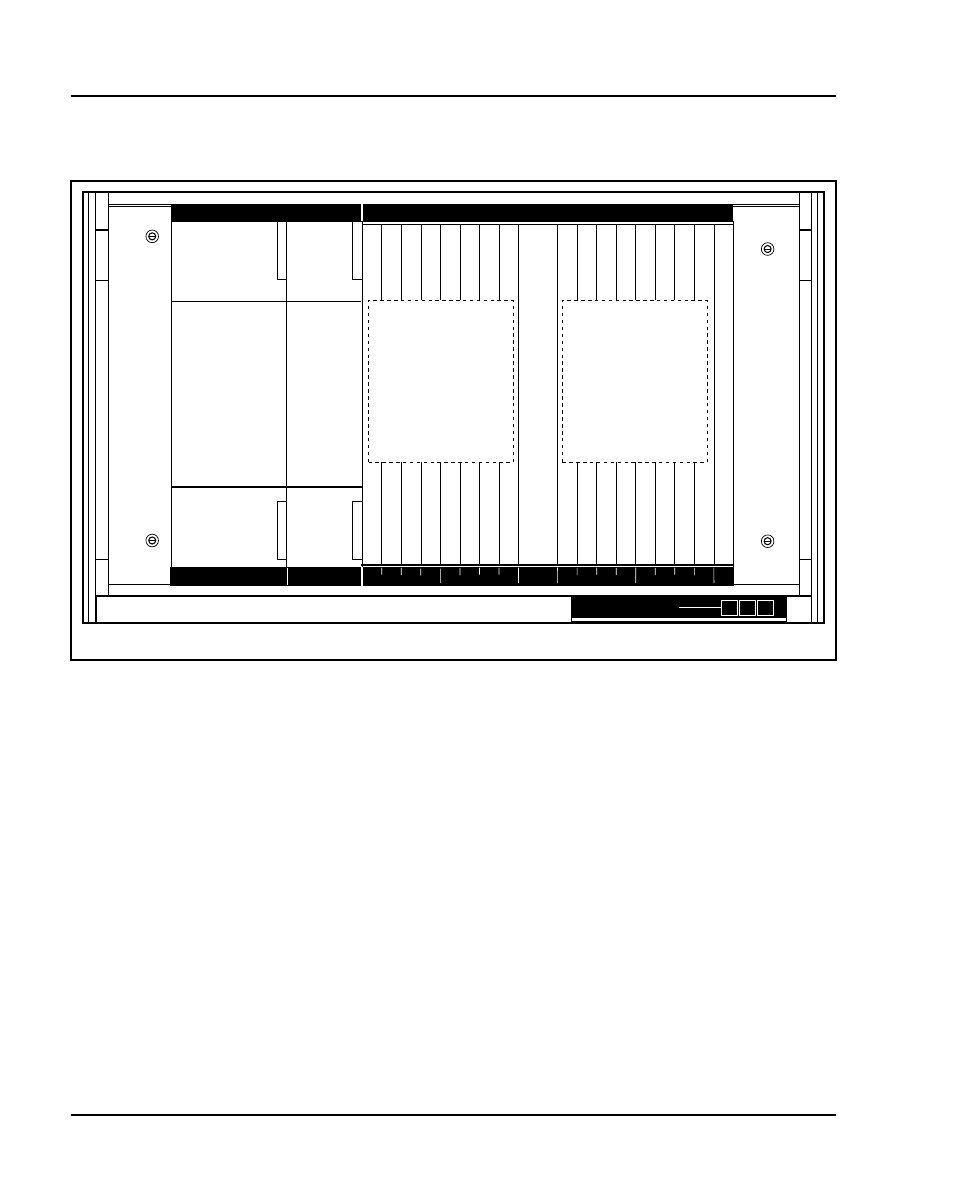

Figure 10
IPE trunk cards installed in an NT8D37 IPE module
Intelligent
Peripheral Equipment Superloop
Shelf
IPE PE Module
PE Pwr Sup Rng Gen
Intelligent line cards
Intelligent trunk cards
BRSC
Intelligent line cards
Intelligent trunk cards
BRSC
NT8D01 Controller Card
553-6321
0 2 3 4 5 6 7 Cont 9 11 12 13 15 1 8 14 10
