2. Preparation for operation
Start up all outdoor sensors first, then the base station.
2.1. The outdoor sensors
The following outdoor sensors are available for the weather station:
- E 9301 combi-sensor: This is a permanently addressed combination sensor
consisting of rain sensor, instant rain detection sensor, wind speed sensor, outdoor
temperature/humidity sensor and integrated transmitter unit. Operation is by means
of three AA batteries.
- E 9305 outdoor temperature/humidity sensor: Addressable sensor, battery-
operated (2 AA batteries). Up to 8 sensors of this type can be used for operation on
the E 9300.
Commissioning
E 9301
The E 9301 is commissioned according to the following procedure:
- Assemble the pipes of the sensor mast via the pipe-connectors. The pipe, which
is squeezed on one side, is used as earth spike. Connect the twin-connector with
the E 9301 to the top of the mast.

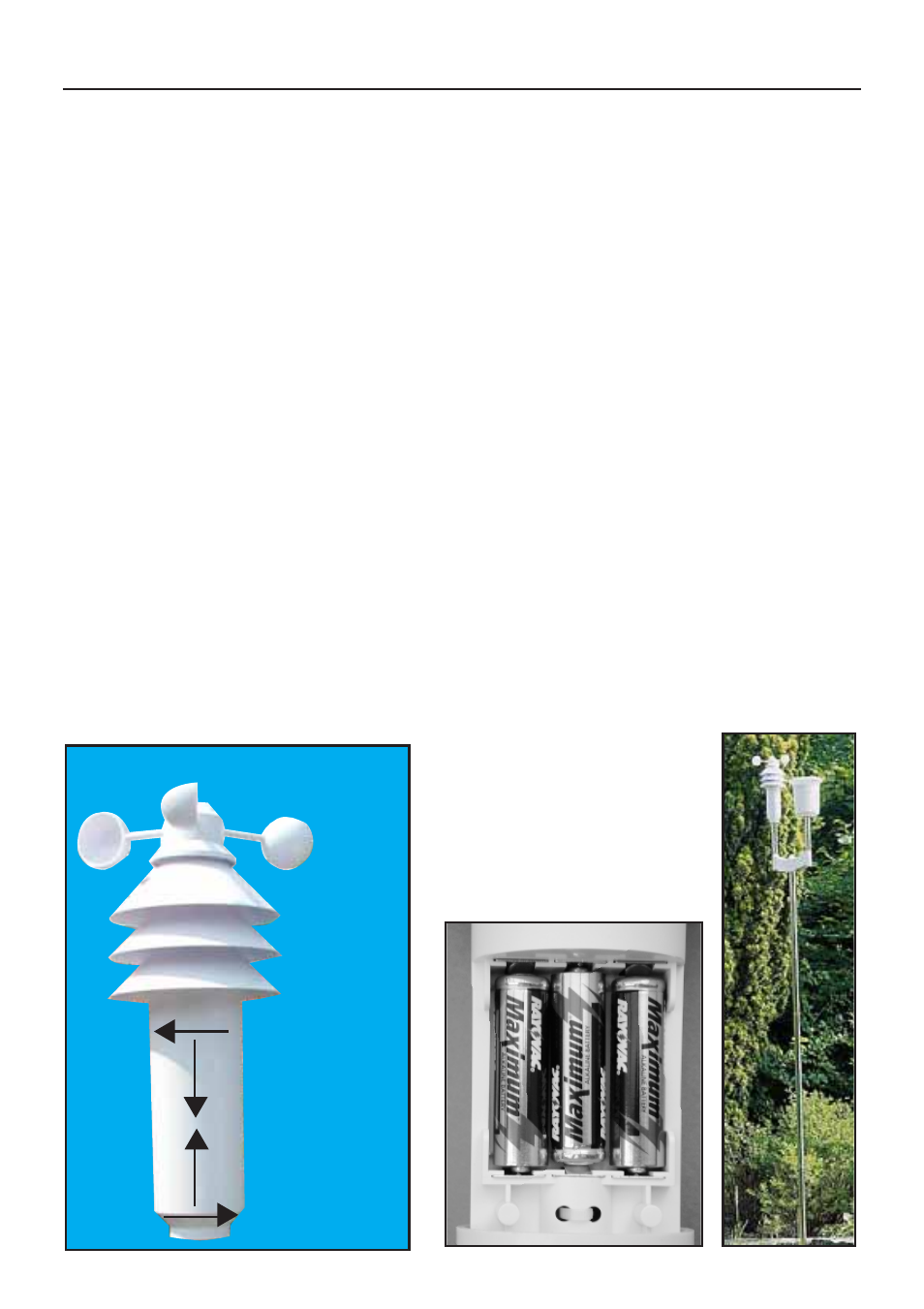

- Open the housing of the sensor by turning the housing counter-clockwise and
pulling from underneath (see picture bottom left).
- Insert three AA batteries into the battery compartment as indicated by the pole
markings in the compartment.
To detach:
Turn to the left,
remove from
underneath
To attach:
Attach,
turn to the right
+ +
+
–
– –
Bottom
