21
- Clean residue from the collector funnel, contacts, counter rocker and drain hole
at the bottom of the housing.
- Insert the counter rocker back into its bracket. The magnet of the counter rocker
must be on the side next to the cable.
- Insert the rainfall sensor into its bracket. It will automatically hold the counter
rocker firmly. The cable of the rainfall sensor and the magnet of the rocker arm
must be on the same side.
- Then put the collector funnel onto the sensor holder from above and engage it by
turning it to the right.
- Push the housing back in again from underneath and engage it in the sensor
holder by turning it to the right until it slots in. Make sure that the drain holes of
the housing and sensor holder coincide (drain hole of the housing points to the
outside).

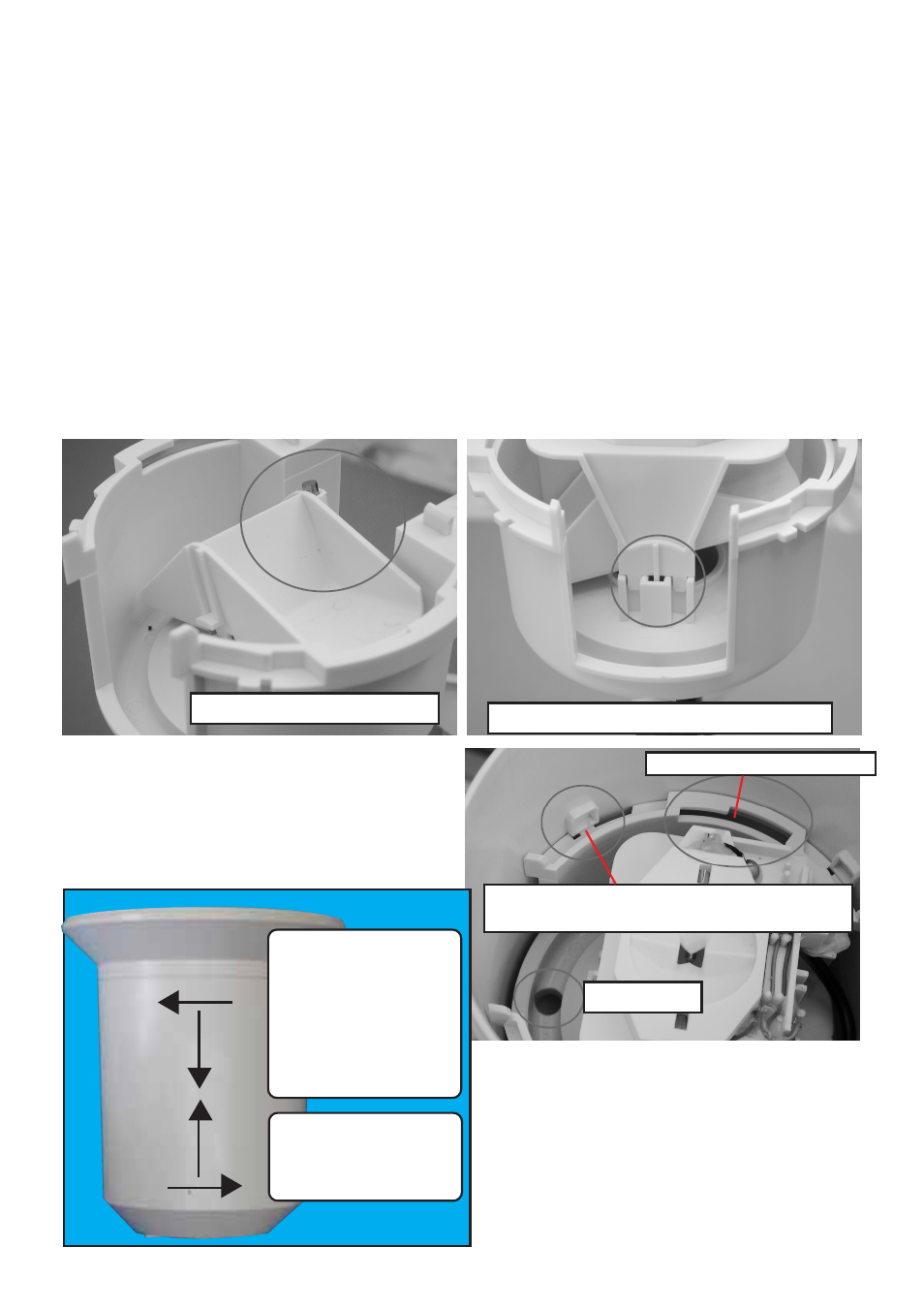

The following pictures illustrate the disassembly/assembly process
1 - Full moon
2 - Waxing
3 - New moon
4 - Waning
Rocker correctly installed
Rainfall sensor correctly installed
Drain hole
Housing correctly engaged at bottom (collec-
tion funnel removed for illustrative purposes)
Slot for collection funnel
To detach:
Turn to the left,
remove housing
from underneath,
remove collection
funnel from above
To attach:
Attach,
turn to the right
