100i Commercial AMT Assembly Guide 4
Important: Temporarily cover the pivot arm holes on the
front covers with packing material so fasteners or tools do
not inadvertently fall inside.
Use a Phillips-head screwdriver to remove the four screws
that secure the back console plate to the display console.
Set the fasteners and cover aside.
Hold the display console above its mounting bracket on
the AMT. Feed the lower board cable through the hole and
out the base of the display console bracket.
Connect the heart rate cable to the 4-prong receptacle on
the electronics board.
Important: Make sure to move the lower board and heart
rate cables out of the way as you place the display
console onto its mounting bracket.
Connect the lower board (RJ45) cable to its receptacle.

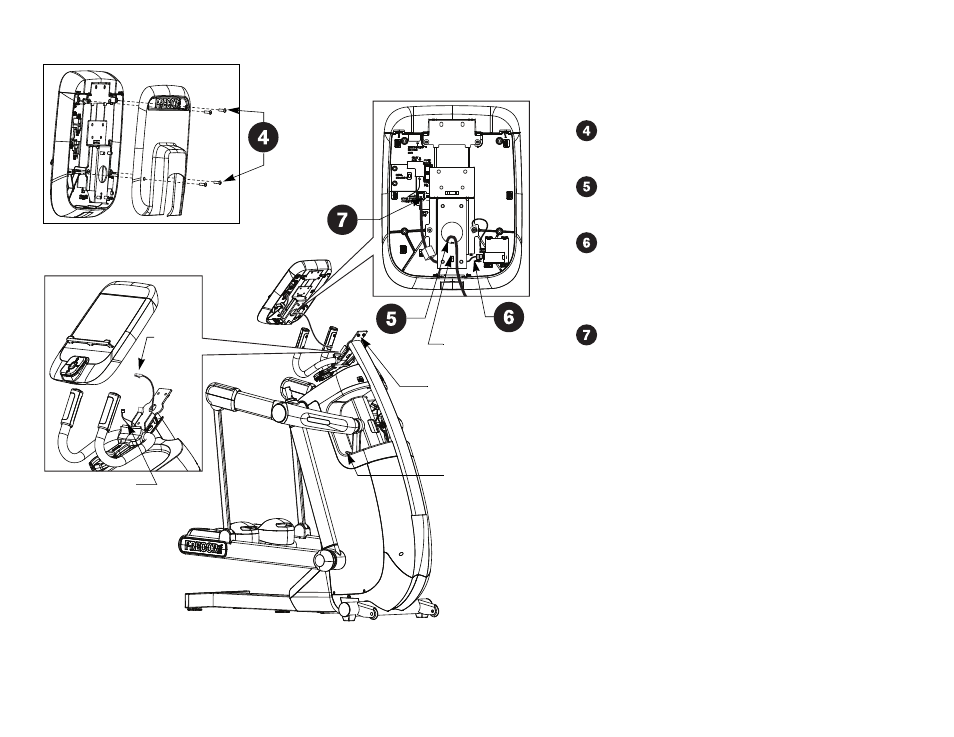

Lower
board
cable
Heart rate cable
Mounting bracket
Pivot arm hole
Display console
bracket
