Front tail light bulb Type: ALL GLASS
Power: 12V - 3W
Quantity: 1 RHS + 1 LHS
Instrument panel bulb Type: ALL GLASS
Power: 12V - 2W
Quantity: 4
03_19
03_20
Front light group (03_19, 03_20, 03_21, 03_22, 03_23, 03_24,
03_25, 03_26, 03_27)

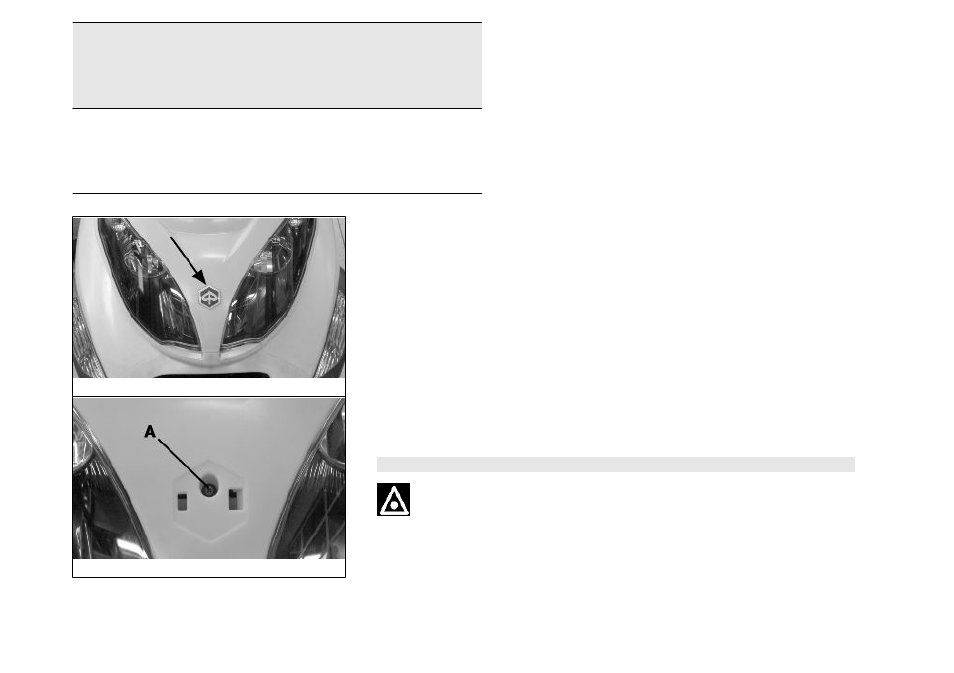

To remove the front headlight assembly, proceed as follows:
1. Remove the Piaggio clip-on badge
2. Remove the screw «A» and the headlight assembly central cover
3. Remove the two headlamp upper fixing screws «B»
4. Remove the two grille front fixing screws «C »
5. Remove the two screws «D» located under the grille
6. Remove the two screws «E» located inside the front shield
7. Remove the grille
8. Remove the two headlight lower fixing screws «F»
9. Take out the front headlight assembly
Refit the components following the above operations in reversed order
WARNING
HIGH AND LOW BEAM LIGHT ARE OF THE HALOGEN TYPE: DO NOT TOUCH
WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION.
Headlight adjustment (03_28, 03_29)
Proceed as follows:
