7-41
The Effects and Parameters
Mix 0-100% Dry/Wet ratio
Level* Off, -89 to +6dB Amount of effect in the processed signal
LoCut 100-10000Hz Corner frequency for the low cut (highpass)band
HiCut 100-10000Hz Corner frequency for the high cut (lowpass) band
Bal* -50 to +50 Relative level of the low and high band

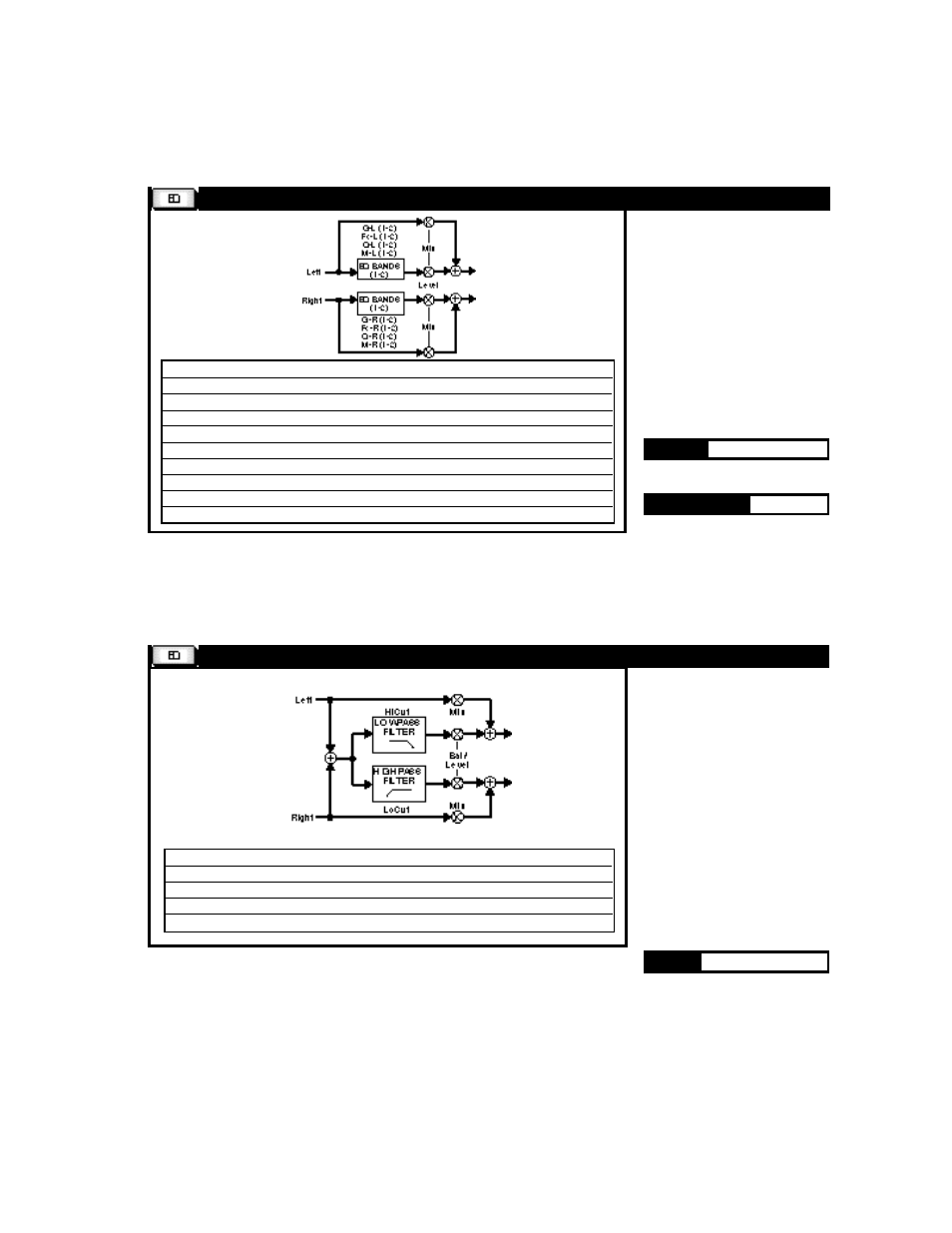

The Fc Splitter effect splits a
mono input into a low-passed out-
put on the left channel and a high-
passed output on the right, with
independent control of the corner
frequencies of both filters. If the
corner frequencies are the same,
and the balance is set to 0, the
frequency response will be flat
when the two outputs are summed.
Bal controls the relative level of left
and right outputs. When Bal=0, the
left and right outputs are not at-
tenuated. Negative values attenu-
ate the right output (highs). Posi-
tive values attenuate the left (lows).
Fc Splitter
Mix 0-100% Dry/Wet ratio
Level Off, -89 to +6dB Amount of effect in the processed signal
G-L, G-L1, G-L2 -72 to +24dB Boost/cut gain of left filter(s)
Fc-L, Fc-L1, Fc-L2 20-20000Hz Center or corner frequency of left filter(s)
Q-L, Q-L1, Q-L2 0.1-10.0 Q of left filter(s)
M-L, M-L1, M-L2 LShlf, Band, HShlf Determines EQ type(s)
G-R, G-R1, G-R2 -72 to +24dB Boost/cut gain of right filter(s)
Fc-R, Fc-R1, Fc-R2 20-20000Hz Center or corner frequency of right filter(s)
Q-R, Q-R1, Q-R2 0.1-10.0 Q of right filter(s)
M-R, M-R1, M-R2 LShlf, Band, HShlf Determines EQ type(s)
1-Band (D) and 2-Band (D)
1-Band (D) has two bands of
double-precision parametric EQ,
one on each channel. 2-Band (D)
has four bands of double-preci-
sion parametric EQ, two on each
channel.
Center frequency, Q, boost/cut
and filter type (low shelf, band,
high shelf) are adjustable.
68 190
1-Band (D)
109 190
2-Band (D)
55 190
* = Interpolated; ( ) = Option of preceding parameter
