Page 36
26 Reconnection/Adjustments
TP-6335
9/04
8.1 Four-Lead Reconnection

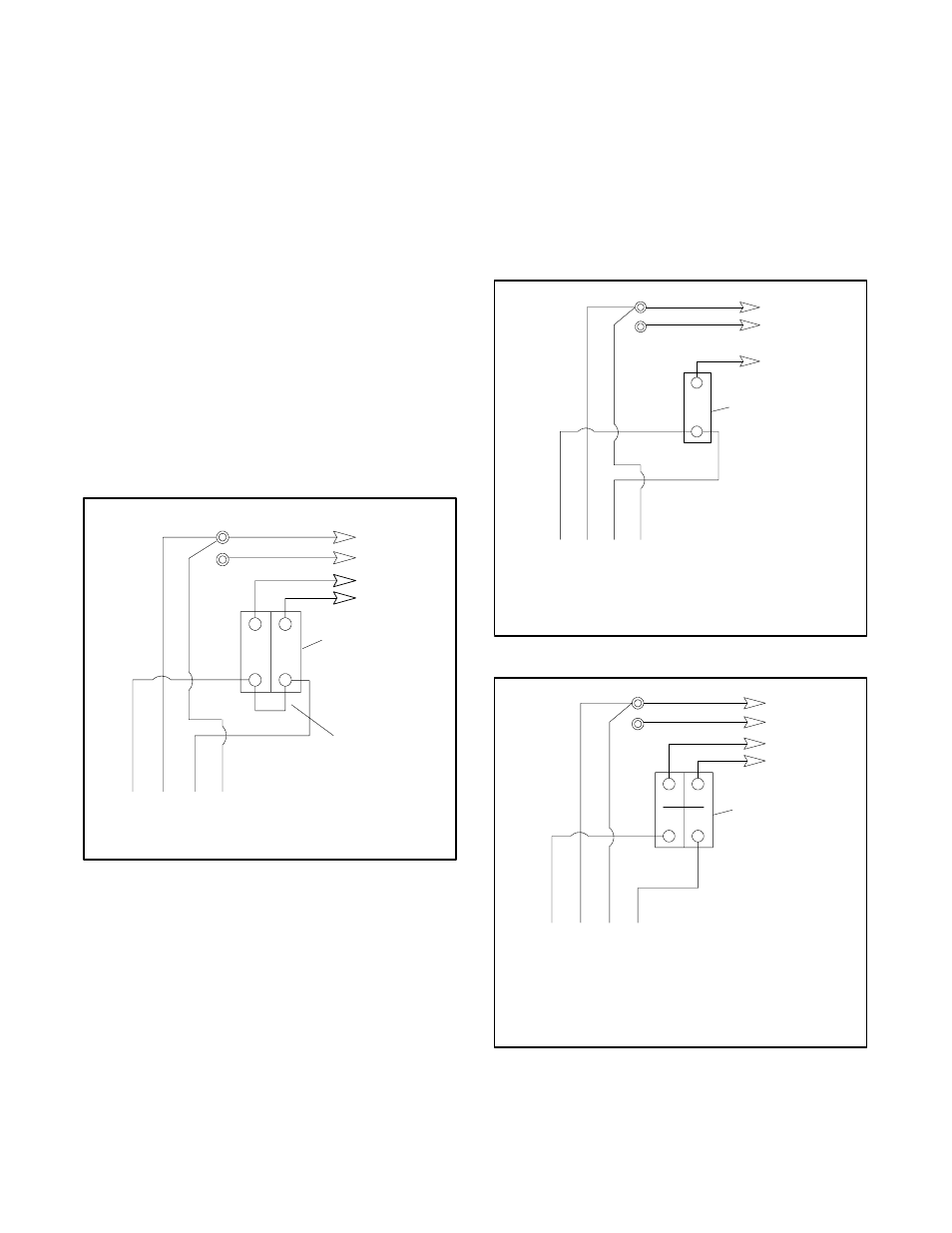

The following drawings illustrate the reconnection of
four-lead generator sets. In all cases, conform to the
National Electrical Code (NEC).
NOTICE
Voltage reconnection. Affix a notice to the generator set after
reconnecting the set to a voltage different from the voltage on
the nameplate. Order voltage reconnection decal 246242
from an authorized service distributor/dealer.
100--120-Volt Configurations
If the installation requires a factory two-pole circuit
breaker, do not connect the load-side terminals of the
circuit breaker.
See Figure 8-1.
If the installation
requires a 100--120-volt, 2-wire system, use a
single-pole circuit breaker.
See Figure 8-2.
When
connecting stator phase leads together, size the output
lead (L1) to handle the amperage. Use a jumper lead on
the line side of the circuit breaker to balance the load of
the generator set.
GRD.
L1
L2
4
3
2
1
L0 (Neutral)
L0
Ground
Load
Side
Line
Side
Two-Pole
Circuit
Breaker
Jumper
Lead
Figure 8-1
100--120-Volt, 3-Wire Configuration
100--120/200--240-Volt Configurations
The 100--120/200--240-volt configuration does not use
a jumper lead. If the unit was originally wired for straight
100--120 volt, 3 wire, remove the jumper lead (see
Figure 8-1 for location).
Select a two-pole circuit
breaker. Application of two single-pole circuit breakers
does not conform to NEC requirements for supplying a
200--240 volt
load—even
if
the
breakers
are
mechanically attached.
Leads L1 and L2 are for
different phases—never connect them.
4
3
2
1
Stator Leads
L0
GRD.
L1
L0 (Neutral)
Line
Side
Single-Pole
Circuit
Breaker
Ground
Load
Side
60 Hz
L0--L1
100--120 Volt
L0--L2
100--120 Volt
Figure 8-2
100--120-Volt, 2-Wire Configuration
4
3
2
1
Stator Leads
L0
GRD.
L2
L1
L0 (Neutral)
Line
Side
Factory
Two-Pole
Circuit
Breaker
Ground
Load
Side
100--120/200--240 Volt,
3 Wire
60 Hz
L0--L1
100--120 Volt
L0--L2
100--120 Volt
L1--L2
200--240 Volt
Figure 8-3
100--120/200--240-Volt,
3-Wire Configuration
