Integrated Remote Commander
RM-AX4000A
RM-AX4000

Operating Instructions

Refer to the PDF file “Operating
Instructions”

Refer to the PDF file “Operating Instructions” for more information and for
troubleshooting.

How to display the PDF file “Operating Instructions”

The PDF file “Operating Instructions” will be installed when the AX Remote
Editor software is installed. Click [Start] - [All Programs] - [Sony Remote
AX] - [RM-AX4000 Operating Instructions] on your PC.

You need Adobe Acrobat Reader 5.0 or later, or Adobe Reader software in
your PC.

© 2005 Sony Corporation Printed in Malaysia

2-635-473-14(1)

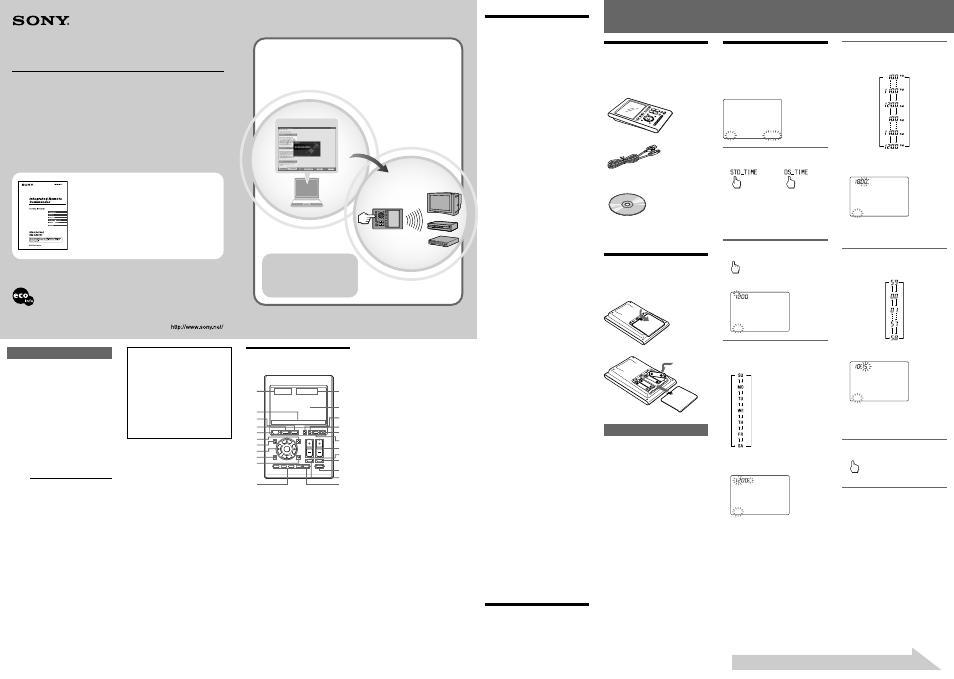

Quick Start Guide

Continue to reverse side

Preparing

Comfortable operation with
the Remote Commander

You can easily download a variety of settings from your PC to the Remote Commander (RM-AX4000)
using the “AX Remote Editor.”

Easy setup on your PC!

Comfortable

operation

Use the Remote Commander to control all
your components!

AX Remote Editor

Download setting files to
the Remote Commander

You can also set up the
Remote Commander yourself,
without using a PC. See the
PDF file “Operating
Instructions” for details.

Location and function of
controls

EPG

MENU

SYSTEM CONTROL

OK

1

MORE

4

3

COMPONENT

VOLUME

BACK

X PRESS

2

RECALL

OFF

LIGHT

TIMER

COMMANDER

MUTING

SYNC-UP

CHANNEL

EXIT

TOOLS

ALL OFF

qs

wa

wd

ws

qd

qh

qj

ql

qk

w;

qg

qf

1

2

qa

9

0

7

6

5

4

3

8

The CHANNEL + button has a tactile dot.

1

Clock display
Displays the clock, the transmission mark, the
battery mark and the timer mark.

2

Label keys
Different keys appear depending on the
selected function. The Label keys are used
mainly to choose the XPRESS function/
component/System Control/Timer/setting
items, etc. You can change the names of the
XPRESS function, components, System Control
key and Timer as the Label keys.

3

COMPONENT button
The component names appear as the Label
keys. When you press a component name, the
operating display for that component appears.

4

BACK button
Used to return to the previous display.

5

XPRESS button
The XPRESS names appear as the Label keys.
When you press an XPRESS name, the
operating display for that XPRESS function
appears, and its macro is performed.

6

MENU button
Calls up the menu screen for components that
have menu function.

7

EPG button

8

OK and Cursor Control buttons

9

EXIT button

q;

TOOLS button

qa

SYSTEM CONTROL buttons
You can automatically carry out the entire
program by pressing one button.

qs

Display title
Shows the title of the LCD Display. If a page
number such as “/1” appears, multiple pages
are available. If you press the number, next
page displays.

qd

Touch-keys
The keys are used for setting the Remote
Commander and operating each component
appear on the LCD display.

qf

SYNC-UP button
Used to synchronize the Remote Commander
with the status of a component .

qg

TIMER button
Used to set the timer program on/off.

qh

COMMANDER OFF button
Turns the power of the Remote Commander
off.

qj

LIGHT button
Used to brighten the backlight in the dark.
Press the button once to turn on/off the
backlight.

qk

CHANNEL +/– buttons
Selects the channel.

ql

VOLUME +/– buttons
Adjusts the volume.

w;

RECALL button

wa

ALL OFF button

ws

MUTING button
Silences the sound. Press the button to silence,
and again to return to the previous volume
level.

wd

MORE button
The System Control keys (SYSTEM5-8) are
displayed as the Label keys. When you press a
System Control key, its macro is performed.

Note on the LCD display’s power
on/off
To turn on the LCD display, press any button
except the COMMANDER OFF button.
To turn off the LCD display, press the
COMMANDER OFF button. If you do not use the
Remote Commander within 5 minutes, the LCD
display automatically turns off.
This interval can also be changed.

WARNING

To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.

To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.

You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.

Owner’s Record

The model number is located on the rear of the
unit and the serial number is located in the battery
compartment.
Record the serial number in the space provided
below. Refer to them whenever you call upon your
Sony dealer regarding this product.
Model No. RM-AX4000
Serial No.

INFORMATION:

This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment

and receiver.

– Connect the equipment to an outlet on a circuit

different from that to which the receiver is
connected.

– Consult the dealer or an experienced radio/TV

technician for help.

If you have any questions about this product, you
may call; Sony Electronics Support 1-866-922-7669
or http://www.sony.com/remotesupport

Declaration of Conformity

Trade Name:

SONY

Model Number: RM-AX4000
Responsible Party:

Sony Electronics Inc.

Address:

16530 Via Esprillo,
San Diego, CA 92127 USA

Telephone Number:

858-942-2230

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.

Notice for users
On the supplied software

• Copyright laws prohibit reproducing the

software or the manual accompanying it in
whole or in part, or renting the software without
the permission of the copyright holder.

• In no event will SONY be liable for any financial

damage, or loss of profits, including claims made
by third parties, arising out of the use of the
software supplied with this unit.

• In the event a problem occurs with this software

as a result of defective manufacturing, SONY
will replace it.
However, SONY bears no other responsibility.

• The software provided with this unit cannot be

used with equipment other than that which is so
designated.

• Please note that, due to continued efforts to

improve quality, the software specifications may
be changed without notice.

• Operation of this unit with software other than

that provided is not covered by the warranty.

Program © 2005, 2006 Sony Corporation
Documentation © 2005, 2006 Sony Corporation

Microsoft, Windows and Windows Media are
trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
All other trademarks and registered trademarks
are trademarks or registered trademarks of their
respective holders.
In this guide, ™ and ® marks are not specified.
Adobe Reader is a trademark of Adobe Systems
Incorporated.
• Microsoft Windows XP Media Center Edition,

Microsoft Windows XP Professional and
Microsoft Windows XP Home Edition are
mentioned as Windows XP in this guide.

• Microsoft Windows 2000 Professional is

mentioned as Windows 2000 in this guide.

Features

The RM-AX4000 Remote Commander provides
centralized control of all your AV components
from a single remote control and saves the trouble
of operating different AV components with
different remote control devices. The following are
its main features.

Control up to 16 components
With the Remote Commander, you can control up
to 16 components, including your TV, VCR, DVD,
DVR, CD, RCVR, etc.

Centralized control of Sony AV components
with this one Remote Commander
The Remote Commander is preset at the factory to
operate Sony brand components, so you can use it
out of the box as a control center for your Sony AV
components.

Remote control signals for non-Sony
components are also preset
The Remote Commander also recognizes the preset
codes for most major brands components, as well
as Sony. Just select the corresponding codes to
control all your AV components.

XPRESS functions for executing a series of
actions to operate several AV components
by pressing just one key.
Groups of commands from different components
can be set for up to 8 XPRESS functions. For
example, when you watch a DVD using a TV and
amplifier/receiver, you can press just one key to
turn on/off each component, and select the correct
inputs. Available keys for the XPRESS function
appear on the LCD display.
Also, the XPRESS function can memorize the
status of power on/off, input select status of each
component, and send a signal to synchronize them
to the Remote Commander, regardless of their
current.

Air-Slide executes an XPRESS function by
“sliding your finger” across the LCD
display
You can also perform an XPRESS function by
sliding your finger in a set pattern across the
Remote Commander’s LCD Display. This function
is called an “Air-Slide”, and 6 different patterns are
available.
The AX Remote Editor software allows you to
make advanced settings for the Remote
Commander.

Clock display and Timer function
Up to 8 Timer macros can be programmed to
automatically turn on/off components and other
controls (such as recording, stopping, etc.).

Learning function lets you program other
remote control signals you may need
The Remote Commander can learn the remote
control infrared signals of non-preset components.
The Remote Commander can learn remote control
signals (infrared signals only) of other devices such
as air conditioners, lights, etc. (some specific
appliances or functions may not be available).

System Control function executes a series
of actions (a macro) by pressing one
button/key
In addition to the XPRESS function, more settings
can be programmed to perform a series of actions
(a macro) just by pressing one button. You can
program up to 8 System Control functions.
Furthermore, you can program a series of actions
(a macro) to other buttons as a single step of an
XPRESS function or component operation.

KeyMacro function allows you to select a
channel with a single key
The Remote Commander allows you to program a
macro for a key to operate an AV component. For
example, you can create a macro that enters the
numbers 1, 2, and 3, to select channel 123 just by
pressing one key.
The AX Remote Editor software allows you to
make advanced settings for the Remote
Commander.

Easy-to-operate Touch-key LCD with blue
back light
The Remote Commander has a Touch-key LCD
that changes keys and labels according to the
selected component. The Remote Commander is
easy to operate as only the keys necessary to
operate the selected component are shown. The
display backlight allows operation even in the
dark.

The supplied software “AX Remote Editor”
for easy Remote Commander setup
By installing the “AX Remote Editor” on the
supplied CD-ROM onto your PC, you can
customize the setting of the Remote Commander
according to your preferences. You can also
program various advanced settings easily.
The settings programmed on your PC can be
transferred to the Remote Commander as
necessary using the supplied USB cable.

Specifications

See the PDF file “Operating Instructions” for the
Specifications.

Unpacking

Check the contents of the package before using the
Remote Commander.

• Remote Commander RM-AX4000 (1)

Although the packaging may say RM-AX4000A,
the Remote Commander is RM-AX4000.

• USB cable (1)

• CD-ROM* (1)

– AX Remote Editor software
– Operating Instructions (PDF file)

• Quick Start Guide (1)
• Preset Code Lists (1)
• Warranty Card (1)
* Do not attempt to play this CD-ROM in an audio

CD player.

Installing the batteries

Slide and open the battery compartment lid and
insert four size AA (R6) alkaline batteries (not
supplied). Be sure to match the + and – of the
batteries with the + and – of the battery
compartment.

When to replace the batteries

When replacing the batteries, do it
quickly. Otherwise, the memory settings
for the clock will be erased. The clock
does not work while replacing the
batteries.

Alkaline batteries will last up to 5 months (a Sony
TV turned On/Off up to approx. 300 times per
day). If the Remote Commander does not operate
properly, the batteries are getting weak and E
appears on the LCD display. When the LCD
display dims or the backlight for the touch keys
grows dim, the batteries are getting weak, and
need to be replaced.

Notes on replacing the batteries
• Do not attempt to recharge dry batteries.
• Do not carry dry batteries together with coins or

other metallic objects. This can generate heat if
the positive and negative terminals of the
batteries accidentally come into contact with
metallic objects.

• When you are not going to use the unit for a long

time, remove the batteries to avoid damage from
battery leakage and corrosion.

• Do not use different types of batteries at the same

time.

• When you replace the batteries, replace them

both with new ones.

Setting the clock

When you install batteries the first time, the
Remote Commander enters clock setup mode.
“DS_TIME” appears as the Display title.
“STD_TIME” lights and “SET” and “DS_TIME”
flash on the Label keys.
STD_TIME: standard time
DS_TIME: daylight savings time

DS_TIME

SU

LEARN
NG

SET [STD_TIME] DS_TIME

1

Press “STD_TIME” or “DS_TIME”
on the Label keys.

The current setting is shown inside the [ ],
while the other flashes.
If the summer time (daylight savings time) is
used in your area, press the DS_TIME key.
When the time change occurs (in spring and
autumn), the Remote Commander will
automatically adjust itself.
If the summer time is not used in your area,
press the STD_TIME key.

2

Press “SET” on the Label keys.

SET

A beep sounds, “SET” and “SU” flash, and
“12:00 AM” lights on the Clock display.

CLOCK

SU

AM

LEARN
NG

SET

STD_TIME

3

Set the day of the week by pressing
the

F or f button.

The selected day of the week flashes.

Next, press the

g button. The day of the week

is set.
“12” (hour) “AM” and “SET” flash.

CLOCK

SU

AM

LEARN
NG

SET

STD_TIME

Note
If you press the

G button, the day of the week

is set and setting mode skips to step 5.

or

SU : Sunday
MO : Monday
TU : Tuesday
WE : Wednesday
TH : Thursday
FR : Friday
SA : Saturday

4

Set the hour and AM (or PM) by
pressing the

F or f button.

The selected hour and AM (or PM) flash.

Next, press the

g button. The hour and AM (or

PM) are set.
“00” (minute) and “SET” flash.

CLOCK

SU

AM

LEARN
NG

SET

STD_TIME

Note
If you press the

G button, the hour and AM (or

PM) are set and the setting mode returns to
step 3.

5

Set the minute by pressing the

F or

f button.

The selected minute flashes.

If you want to finish the clock setting, go to
step 6.

CLOCK

SU

LEARN
NG

SET

STD_TIME

Notes
• If you press the

g button, the minute is set

and the setting mode returns to step 3.

• If you press the

G button, the minute is set

and the setting mode returns to step 4.

6

Press “SET” on the Label keys.

SET

The beep sounds, and the clock starts from the
0 second of the current minute.

Note
If you press the SET key in any step above, the
clock starts from the 0 second of the current
minute.

Printed on 100% recycled paper using
VOC (Volatile Organic Compound)-free
vegetable oil based ink.

This manual is related to the following products:
