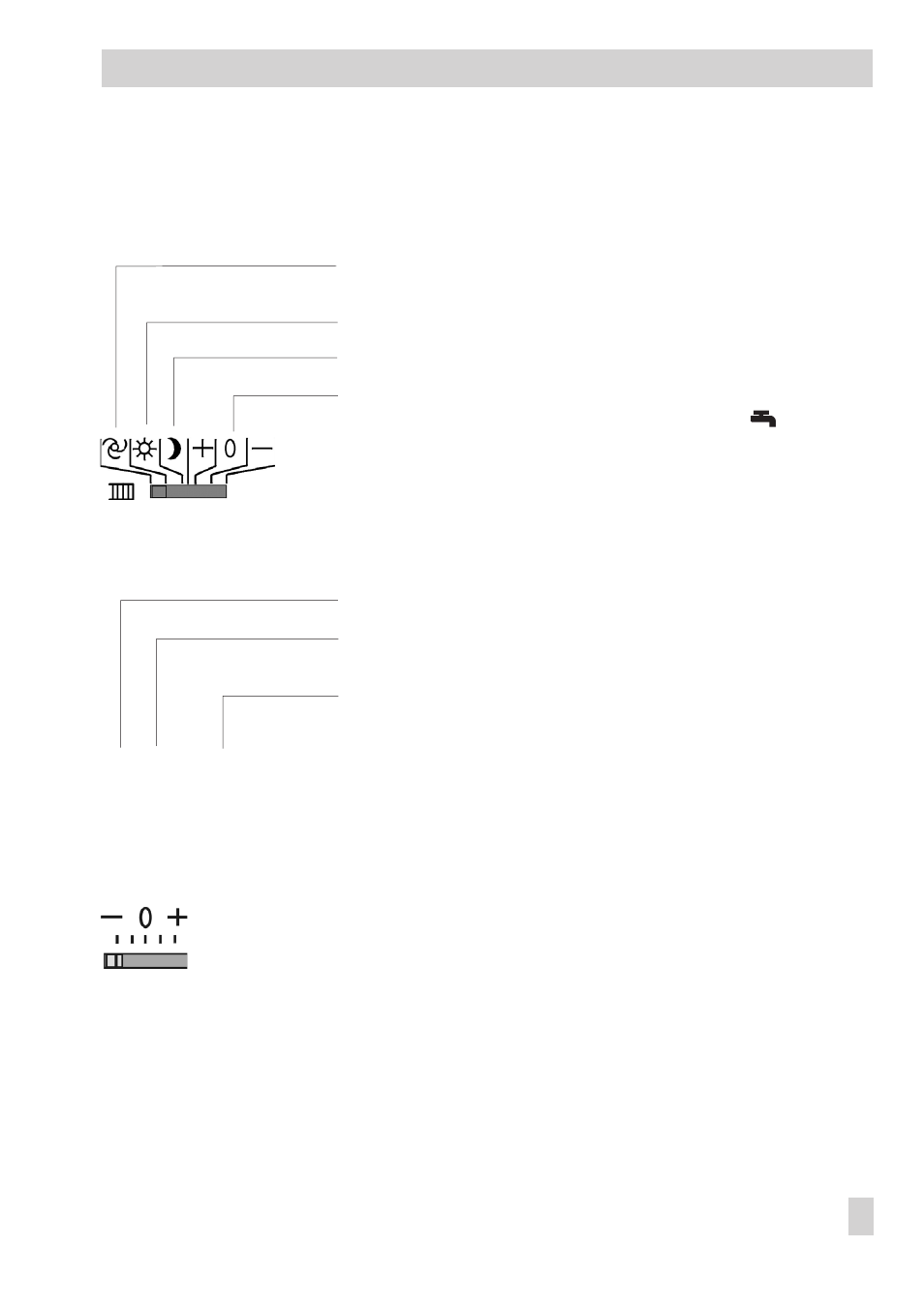

1.1.2 Operating switches
Heating circuit mode selector switch
Automatic mode with switchover between
rated operation and reduced operation or standby mode
Day mode (rated operation)
Night mode (reduced operation) or standby mode
Manual operation: Control valve RK1 open - stationary - closes
UP1 in operation, no reaction in switch position
DHW circuit mode selector switch · Underfloor heating circuit (Anl 9)
Automatic mode with deactivation of DHW heating
Heating circuit(s) deactivated, frost protection only
DHW heating unchanged
Manual operation: Control valve RK2 open - stationary - closes
Correction switch
Correction of flow temperature set point in times-of-use to become warmer (+)
or colder (–)
D
T
Flow max
=
±
4 °C x Gradient of the heating characteristic (
±
10 °C for 4-point
characteristic)
Adaptation operation only when switch position is at 0
EB 5476 EN
7
Operation
