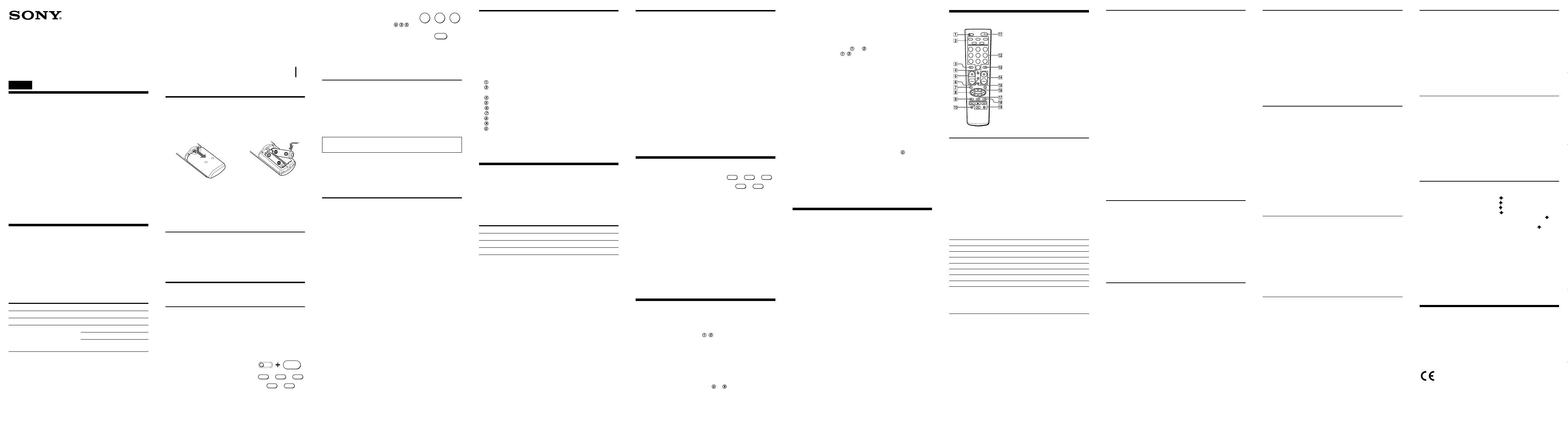

Installing the Batteries

Before replacing the batteries, have new ones ready beforehand.

Slide open the battery compartment and insert two size AA (R6)
batteries (not supplied).
Be sure to line up the + and – on the batteries with the + and – on the
battery compartment.

1

2

When to replace the batteries

Under normal conditions, batteries will last up to six months. If the
Commander does not operate properly, the batteries might be worn
out. Replace the batteries with new ones.

Notes

• Replace both batteries with new ones.
• Do not take more than 3 minutes to replace the batteries; otherwise,

your setting of the code numbers will be erased.

Notes on Batteries

• Do not mix old batteries with new ones or mix different types of

batteries together.

• If the electrolyte inside the battery should leak, wipe the

contaminated area of the battery compartment with a cloth and
replace the old batteries with new ones. To prevent the electrolyte
from leaking, remove the batteries when you plan not to use the
Commander for a long period of time.

Setting the Code

Follow the steps 1 and 2 below for each component you plan to use
with the Commander.

Step 1: Entering the Code Number

1 See the supplied “Component Code numbers”, and find the three-

digit code number for the desired component.
If more than one code number is listed, use the number that’s
listed first to complete the steps below.
For example, if you’re setting up a Philips’ VCR, you would use
the code number 035.
If your component isn’t listed, see “Searching for the Correct
Code.”

2 While pressing the SET button, press the

POWER button.

3 Press the button of the component that

you want to set up.

Note

On the CBL/SAT, RCVR, and DVD buttons, “cable box”, “receiver”,
and “DVD player” are assigned respectively at the factory. But you
can also assign other components on these buttons. For details, see
“Changing the Component Type on the CBL/SAT, RCVR, and DVD
buttons.”

Changing the Factory Setting for the
Volume Control

1 While pressing the SET button, press the POWER button.

2 Press the RCVR button.

3 Press the VOL+ button.

4 Press the ENT button.

The volume control setting is changed to “receiver/amplifier.” You
can control the volume of the receiver (or amplifier) of the RCVR
button while selecting any component.

Notes

• If you are using more than one receiver (or amplifier) and have set

it on the CBL/SAT or DVD button, when selecting these buttons you
cannot control the volume of the receiver (or amplifier) of the RCVR
button.

• If you change the setting of the RCVR button to a component other

than a receiver or amplifier, the volume control setting of video
components will return to “TV” even if you have changed the
factory preset volume control. In this case, you will not be able to
control the volume from audio components other than a receiver
or amplifier.

To reset to factory preset volume control

In step 3 above, press VOL– instead.

Operating a Component

1 Press the button of the desired

component on the Commander.

2 Point the Commander directly at the

component.

3 Press the button for the function you want to use.

See “Remote Button Descriptions” for complete descriptions of the
buttons on the Commander.

Notes on Using the Remote Commander

Basically, use this Commander in the same way as the Commanders
supplied with your components.
• Using this Commander will not increase the functions of your

components. The functions of the Commander are limited to the
functions of the components themselves. For example, if your TV
does not have a MUTING function, the MUTING button on this
Commander will not function with your TV.

• Some functions of the component may not work with this

Commander.

• If your cable box can control volume, be sure to set its volume

switch to a medium position. If the volume on the cable box is
turned down completely, you will not be able to adjust your TV’s
volume with the Commander.

Setting a channel with a single button
(Channel Macro function)

You can program the Channel Macro function on any of the buttons
listed below (macro keys).
For example, instead of pressing , , and then ENT button to
change the TV channel, you can perform these operations by
pressing only the N button.

The macro keys are:
N

, m, M, x, X, and zREC.

(During TV, analog cable box, or digital satellite receiver operations
only.)

The series of operations that can be programmed must be consisted
of two to four sequential pressings of to

buttons or ENT button.

Note

The Channel Macro function may not work correctly for some
components.

For the customers in the U.S.A.
WARNING

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.

Setting Up the Remote Commander

About Presetting the Commander

The Commander is preset at the factory to operate Sony brand
components.
If you’re using the Commander with a Sony component, you won’t
need to preset the Commander before you start using it.
To set up the Commander to use with other (non-Sony)
manufacturers’ components, or to use with a component that is not
preset at the factory, you’ll need to follow the instructions in this
manual to preset the Commander with the correct code number for
your components. (See the supplied “Component Code Numbers”
also.)

Notes

• The Commander can be set up to operate only one component per

button – unless their code numbers happen to be the same. For
example, you cannot set up the Commander to operate a Sony TV
and a Panasonic TV simultaneously (because they use different
code numbers).

• You may not be able to operate even a Sony brand component with

the factory presetting. In such a case, follow the procedure in
“Setting the Code.”

Remote Button Descriptions

4 Enter the component’s code number.

For example, if you’re entering the code
for a Philips VCR, you would press .

5 Press and release the ENT button to store

the code number in the Commander’s
memory.

6 Go to “Step 2: Checking if the Code Number Works” to finish

setting up.

If you press a wrong button in step 4

Press the POWER button while pressing the SET button and then go
back to step 3.

Step 2: Checking if the Code Number Works

1 Power on the component you want to set up.

2 Aim the Remote Commander at the component and press a button

to check if that button works.
For example, press the POWER button to see if it works on your
component .

3 Check that the other buttons of the Commander is operating the

corresponding functions of the component.

You can write down the code number on the label inside the
battery compartment lid.

If the Commander Doesn’t Seem to Be Working...
• First, try repeating these setup procedures using the other codes

listed for your component (see the supplied “Component Code
Numbers”).

• If – after trying all the codes listed for your component – you still

cannot get the Commander to work properly, try the search
method described in “Searching for the Correct Code.”

Searching for the Correct Code

If you’ve tried all the code numbers listed for your component and
you still cannot get the Commander to work (or if your component is
not listed in the “Component Code Numbers” tables), try these
steps.

1 Power on the component you want to set up. Insert a tape or disc

if necessary.

2 While pressing the SET button, press the POWER button.

3 Press the button of the component on the Commander that you

want to set up.

4 Press and release the CH+ button. Then press and release the

POWER button.

5 Repeat step 4 until the correct code number is found.

Each time you press the CH+ button and then the POWER button,
a new code number will be transmitted.
Keep trying until your component operates by receiving the
transmitted signal from the Commander (e.g., the power turns off,
the CH+ function works, playback starts, etc.) Be patient as you do
this; it may take about 100 tries until the correct code number is
located.

6 When the correct code is found, press the ENT button to store the

code number in the Commander’s memory.

7 Check that the Commander is operating the other functions of

your component by pressing the corresponding buttons on the
Commander. If they seem to be working properly, you’re done
setting up the Commander.

If the component does not operate properly, repeat steps 1 to 6 and
search for another code.

If you still cannot get the Commander to work properly, see
“Troubleshooting.”

Changing the Component Type on the CBL/
SAT, RCVR, and DVD buttons

At the factory, “cable box” is assigned on the CBL/SAT button,
“receiver” on the RCVR button, and “DVD player” on the DVD
button. By completing the following procedure, you can change this
setting so that you can set up any component on these buttons.

1 While pressing the SET button, press the POWER button.

2 Press the CBL/SAT, RCVR, or DVD button.

3 Press and release the x (stop) button.

4 Press and release one of the following buttons;

to assign a VCR
to assign a digital satellite receiver, a digital cable box or a

digital video recorder

to assign a receiver
to assign a CD player
to assign a tape deck
to assign an MD deck or a DAT deck
to assign a TV
to assign an analog cable box
to assign a DVD player

5 Press and release the ENT button.

6 Enter the component’s code number by following steps 2 to 6 of

“Entering the Code Number”, or steps 1 to 7 of “Searching for the
Correct Code.”

Controlling the Volume of Video
Components Connected to an Audio
System

The Commander is factory preset based on the assumption that you
hear the sound of your video components from your TV’s speakers,
and that you hear the sound of your audio components from the
loudspeakers connected to your receiver (or amplifier).

Factory Setting:

*

If you assign an audio component on the CBL/SAT or DVD button, you can
control the volume of the receiver (or amplifier) on the RCVR button. If you
assign video components on these buttons, you can control the volume of the
TV.

Thus you can control the volume of your TV or receiver (or
amplifier) while operating a video or audio component without first
having to press the TV or RCVR button. For example, to control the
volume for your VCR channels, you don’t need to press the TV
button first.
However, if your video components are connected to an audio
system, you probably hear your TV’s or VCR’s sound from the
loudspeakers connected to your receiver (or amplifier), not from
your TV speakers. In this case, you need to change the factory setting
so that you can control the volume of your video components
without first having to switch to the receiver (or amplifier).
To change the factory setting for the volume control, follow the
procedures below.

Note

This feature is effective only when a receiver or amplifier is set up on
the RCVR button. You cannot control the volume of a receiver (or
amplifier) set up on CBL/SAT or DVD button while operating a
component of another button.

Button

TV

VCR, CBL/SAT*, DVD*

RCVR

Controls the volume of

TV

TV

Receiver (or amplifier)

Component that can be preset

TV

VCR

Analog cable box/Digital cable box/
Digital satellite receiver/Receiver/
CD player/Tape deck/
MD deck/DAT deck/DVD/TV/
VCR/Digital video recorder

Button

TV

VCR

CBL/SAT

RCVR

DVD

Factory setting

Sony TV

Sony VHS VCR

Sony receiver

Sony DVD player

Operating a tape deck

English

3-252-841-11(1)

Remote Commander

RM-V302

Operating Instructions
Manual de instrucciones (parte posterior)

© 2003 Sony Corporation

Printed in China

General

1

To set up the Commander,
press SET while pressing
POWER.

2

Component select buttons. To
switch to the operations of each
component, press the button on
which that component is
assigned.

5 *

1

Volume up: +

Volume down:

7 *

1

To mute the volume on TV or

receiver (amplifier).

qa

To turn on and off the power of
the selected component.

*

1

These buttons control the volume of
either TV or receiver (amplifier). See
“Controlling the Volume of Video
Components Connected to an
Audio System” for details.

3

, q;, and ql

Tape operation buttons.
For dual cassette decks,
operation buttons for Deck A
(for Sony-brand dual cassette
deck, buttons for Deck B).
PIP: To reverse.
N

: To play.

m

: To rewind.

M

: To fast-forward.

z

REC: To record, press N

while pressing zREC.
First release N, then
release zREC.

x

: To stop.

X

: To pause.

8

, 9, qd, and qk

Operation buttons for Deck B
(for Sony-brand dual cassette
deck, buttons for Deck A).

Specifications

Operable distance

Approx. 7 m (23 ft) (varies depending of the
component of each manufacturer)

Power requirements

Two size AA (R6) batteries (not supplied)

Battery life

Approx. 6 months (varies depending on frequency of
use)

Dimensions

Approx. 55

Ч 200 Ч 32 mm (w/h/d)

(2

1

/

4

Ч 7

7

/

8

Ч 1

5

/

16

in.)

Mass

Approx. 95 g (3.4 oz.) (not including batteries)

Design and specifications are subject to change without notice.

The CE mark on the unit is valid only for products
marketed in the European Union.

SET

POWER

TV

DVD

RCVR

VCR

CBL / SAT

1

4

5

6

7

8

0

PIP

ENT

POWER

CH

VOL

TV / VIDEO

DVD

TV

MD

CD

TUNER

TAPE

VIDEO 2

PHONE

TV

DVD

RCVR

VCR

CBL / SAT

SET

DISPLAY

SLEEP

MUTING

RECALL

GUIDE

MENU

REC

OK

9

VIDEO 1

AUX

2

3

Operating an analog cable box

qs

and qd
To change the channel. For
example, to change to channel
5, press 0 and 5 (or press 5 and
ENT).

qf

Channel up: +
Channel down:

Notes
• There may be cases you may turn on/off the cable box by pressing the CH+ or

CH– buttons on the Commander.

• If your cable box can control volume, be sure to set its volume control to a

medium position. If the volume on the cable box is turned down completely,
you will not be able to adjust your TV’s volume with the Commander.

ENT: To reverse.

: To play.

: To rewind.
: To fast-forward.

: To stop.

MENU: To record, press

while pressing MENU.
First release

, and

then release MENU.

OK: To pause.

qh

To select Deck A or Deck B
(dual cassette deck only).

If your tape deck’s commander has
one set of tape operating buttons, and
has an A/B button for the deck
selection, use the RECALL button to
select Deck A or Deck B.

To program a series of operations

1 Press the desired component select button.

(You can select “TV”, “ analog cable box”, or “digital satellite
receiver” only.)

2 While pressing the desired macro key, press the buttons required

for the operations in sequence.
For example, to program t t ENT on the N button, hold
down N first, press , , and ENT in sequence, and then release
N

.

Notes

• Even if you try to program more than four operations and press the

corresponding buttons in step 2 above, only the first four buttons
that were pressed will be programmed.

• If you try to program only one operation on a macro key, the

setting operation will be rejected.

• You can program the Channel Macro function for up to three

components only. To program for the fourth component, first clear
all macro keys for a component.

To change or clear the program

When you want to change the setting or if you are no longer using
that programmed operation, follow the procedure below to
overwrite or clear the program.

1 Hold down the macro key that you want to change or clear.

2 After waiting for about three seconds, press the new sequence of

buttons, or, to clear the program, press and release , and then
press and release ENT.

3 Release the macro key.

Note

Be sure to wait for about three seconds in step 2 above. While you
are holding down the macro key and waiting, the programmed
signals are transmitted; therefore, if you are aiming the Commander
at your component, the programmed operations may be performed
before you go on with the procedure.

Troubleshooting

If you have problems setting up or using the Commander:
• When setting up the Commander, carefully go through the procedures

described in “Setting the Code.” If the code that’s listed first for your
component doesn’t work, try all the codes for your component - in the order
in which they’re listed. If all the codes fail to work (or if your component is
not listed in this manual), try using the procedures in “Searching for the
Correct Code.”

• Check that you’re aiming the Commander directly at the component, and that

there are no obstructions between the Commander and the component.

• Make sure the batteries you’re using are not worn out, and that they’re

inserted correctly.

• Check that the button of the TV, VCR, CBL/SAT, RCVR, or DVD is pressed to

choose your desired component.

• Check that the component has infrared remote capability. For example, if

your component didn’t come with a remote commander, it probably isn’t
capable of being controlled by a remote commander.

• If your video components are connected to an audio system, make sure

you’ve set up the Commander as described in “Controlling the Volume of
Video Components Connected to an Audio System.”

• Should any problem persist, reset the Commander to the factory setting by

pressing the POWER, TV/VIDEO and VOL– buttons simultaneously.

For the customers in the U.S.A.

Customer Support Information

If – after you’ve read through this manual – you still cannot get the
Remote Commander to work properly, call the Sony Customer
Support Helpline at 1-800-822-2217.

Operating a TV

3

To operate the Picture-in-
Picture function. Press each
button or combination of
buttons as described in the
table below.

4

To change the input mode.

6

To display the current channel
on TV.

8

To move the cursor upward,
downward, to the left, or to the
right.

9

To call up the MENU display.

qs

and qd
To change the channel. For
example, to change to channel
5, press 0 and 5 (or press 5 and
ENT).

PIP operations

Press

To

PIP

Turn on/off the “window” picture.

GUIDE

Turn off the “window” picture.

m

or M

Change the TV channel in the “window” picture.

z

REC

Change the input mode of the “window” picture.

x

Move the location of the “window” picture.

N

Swap the “main” picture and the “window” picture.

X

Freeze the “window” picture.

Note
If you have programmed the Channel Macro function for TV operation, the
button used as a macro key cannot be used for PIP operation.

qf

CH+: Channel up.
CH: Channel down.

qg

To operate SLEEP function on
the TV. (Works only for a TV
with the SLEEP function.)

qh

To operate JUMP, FLASHBACK
or CHANNEL RETURN function
on the TV depending on the
setting of the TV’s
manufacturer.

qk

To enter the selection.

Operating a VCR

q;

, and ql

N

: To play.

x

: To stop.

m

: To rewind.

M

: To fast-forward.

z

REC: To record, press N

while pressing zREC.

4

To switch the antenna output.

6

To expose the on-screen
display.

8

To move the cursor upward,
downward, to the left, or to the
right.

9

To call up the MENU display.

qs

and qd
To change the channel. For
example, to change to channel
5, press 0 and 5 (or press 5 and
ENT).

qf

CH+: Channel up.
CH: Channel down.

qg

To change the input mode.

qk

To enter the selection.

qh

To operate JUMP, FLASHBACK
or CHANNEL RETURN function
on the TV depending on the
setting of the TV’s
manufacturer.

Operating a DVR (Digital video recorder)

3

(*

2

LIST)

To call up the title of the
recorded program.

4

To switch the output of the SAT
receiver to the TV.
(When connecting a TV cable or
antenna to the receiver, the
output switches between a TV
and SAT program.)
(*

2

THUMBS+)

To select the desired recorded
program.
(It is necessary to have
recorded the desired program.)

6

To turn on the display.
(*

2

THUMBS–)

To select the desired recorded
program.
(It is necessary to have
recorded the desired program.)

8

To move the cursor upward,
downward, to the left, or to the
right.

9

To call up the MENU display.
(*

2

EPG)

To access to all aspects of the
service.

0

, and ql

N

:

To play.

m

:

To rewind.

M

:

To fast-forward.

z

REC: To record, press N

while pressing zREC.
First release N, then
release zREC. To stop
recording, perform the
same procedure.

x

:

To stop.

X

:

To pause.

qs

and qd
To change the channel.
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENT.)

qf

CH+: Channel up.

(*

2

PAGE+) Page up.

CH: Channel down.

(*

2

PAGE–) Page down.

qg

To clear the setting.
To exit the setting menu.

qh

(*

2

REPLAY)

To replay.
Or to go into REC/REVIEW
mode during play. (After about
5-second rewind, replay
begins.)

qj

To bring up Master Guide.
(*

2

Live TV)

To bring up Master Guide.

qk

To bring up the Station Index
when a program guide is not
displayed.
To select the channel that is
highlighted.

*

2

This key corresponds to Tivo service or the replay service. Refer to its
instruction manual for details.

Operating a digital cable box

3 To use the “FAVORITE” function.
4

To switch the output of the SAT
receiver to the TV .(When
connecting a TV cable or
antenna to the receiver, the
output switches between a TV
and SAT program.)

6

To turn on the display.

8

To move the cursor upward,
downward, to the left, or to the
right.

9

To call up the MENU display.

0

, and ql

*

3

N

: To play.

*

3

m

: To rewind.

*

3

M

: To fast-forward.

*

3

z

REC:

To record, press N
while pressing zREC.
First release N, then
release zREC. To stop
recording, perform the
same procedure.

*

3

x

:

To stop.

*

3

X

:

To pause.

qs

and qd
To change the channel.
(for example, to change to
channel 5, press 0 and 5, or
press 5 and ENT.)

qf

CH+: Channel up.
CH: Channel down.

qg

To exit the setting menu.

qh

To turn on the display of a
shortcut menu.

qj

To call up the title bar and
toggle the title bar on/off in
CABLE mode.

qk

To bring up the Station Index
when a program guide is not
displayed.
To select the channel that is
highlighted.

*

3

The operation of the built-in DVR or the video on demand.

Operating a DAT deck

3

To select numbers 10 and
above. For example, to select
track 15, press PIP and then
press 5.

6

To change the display mode or
turn the display on/off.

q;

To record, press N while
pressing zREC/First release
N

, then release zREC.

qs

To select the track number. 0
selects track 10. To select track
numbers above 10, see the
descriptions on the PIP button
above.

qf

CH+: To select the next track.
CH: To select the previous

ql N

:

To play.

m

: To rewind.

M

: To fast-forward.

x

:

To stop.

X

:

To pause.

Operating a CD player

3

To select numbers 10 and
above. For example, to select
track 15, press PIP and then
press 5.

6

To switch the display of the CD
player to on/off.

qs

To select the track number. 0
selects track 10. To select track
numbers above 10, see the
descriptions on the PIP button
above.

qd

To enter the setting.

qf

CH+: To select the next track.
CH: To select the previous

track.

qg

To clear the setting.

qh

To select next disc.

ql N

: To play.

m

: To rewind.

M

: To fast-forward.

x

:

To stop.

X

:

To pause.

Operating an MD deck

3

To select numbers 10 and
above. For example, to select
track 15, press PIP and then
press 5.

6

To switch the display of the CD
player to on/off.

q;

To record, press N while
pressing zREC/First release
N

, then release zREC.

qs

To select the track number. 0
selects track 10. To select track
numbers above 10, see the
descriptions on the PIP button
above.

qd

To enter the setting.

qf

CH+: To select the next track.
CH: To select the previous

track.

qg

To clear the setting.

qh

To select next disc.

ql N

: To play.

m

: To rewind.

M

: To fast-forward.

x

:

To stop.

X

:

To pause.

Operating a digital satellite receiver

3

To use the “FAVORITE”
function.

4

To switch the output of the
digital satellite receiver to the
TV. (When you connect a TV
cable or antenna to the receiver,
the output switches between a
TV and SAT program.)

8

To scroll through the Master
Guide.

9

To call up the MENU display.

qs

and qd
To change the channel. For
example, to change to channel
5, press 0 and 5 (or press 5 and
ENT).

qf

Channel up: +
Channel down:
To page through the guide
when a program guide is
displayed.

qg

To bring up the Station Index.

qh

To tune to the last tuned
station.

qj

To bring up the Master Guide.

qk

To select the channel that’s
highlighted. To bring up the
Station Index when a program
guide is not displayed

ql N

: To exit the mode.

Operating a receiver/amplifier

4

To switch input source by each
pressing.

qs

To select the input source:
1 selects VIDEO 1
2 selects VIDEO 2
3 selects AUX
4 selects TUNER
5 selects CD
6 selects TAPE
7 selects MD
8 selects TV
9 selects PHONO
0 selects DVD

qf

Presetting frequency up: +,
down:
Tuning frequency up: +,
down:

qh

To shift band (FM/AM).

ENT

TV

DVD

RCVR

VCR

CBL / SAT

Operating a DVD

3

To select numbers 10 and
above. For example, to select
track 15, press PIP and then
press 5.

4

To change the sound.

6

To show the current play status
on the screen.

8

To move the cursor upward,
downward, to the left, or to the
right.

9

To display the DVD menu.

q;

To record, press N while
pressing zREC.
First release N, then release
z

REC.

qs

Number buttons : To set items
selected from the screen.

qd

To enter the setting. To set
items selected from the screen.

qf

CH+: To proceed to the next

location or song.
Channel up.

CH: To proceed to the

previous location or song.
Channel down.

qg

To switch the subtitle.

qh

To display the title menu.

qj

To clear the selected characters
from the screen.

qk

To execute items selected from
the screen.

ql N

: To play.

m

: To rewind.

M

: To fast-forward.

x

:

To stop.

X

To pause.

Your Code Number

0

3

5
