Installing and Connecting the TV
US

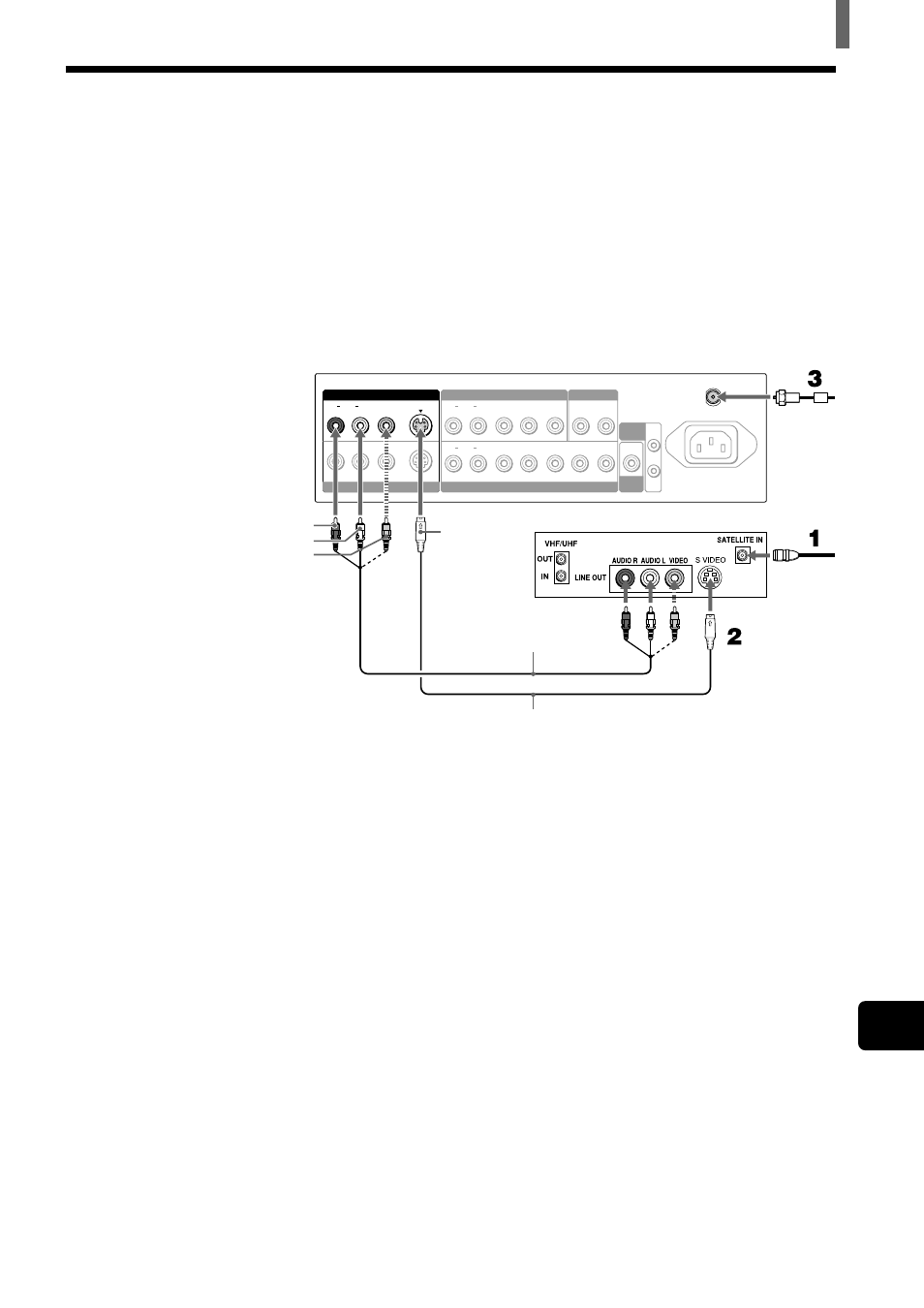

Connecting a Satellite Receiver
Disconnect all power sources before making any connections.
1
Connect the satellite antenna cable to the satellite receiver’s SATELLITE
IN jack.
2
Using AUDIO and S VIDEO cables, connect the satellite receiver’s AUDIO
and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
3
Connect the supplied 75-ohm coaxial cable from your cable or antenna to the
TV’s VHF/UHF jack.
HD VD
IN
OUT
P B /B Y/G P R /R L R AUDIO
L R
VHF/UHF
AC IN
AUDIO OUT
COMPONENT VIDEO IN 2 / RGB IN
SUB
WOOFER
CONTROL
S
VIDEO L R AUDIO P B Y P R L R AUDIO S VIDEO
VIDEO IN 1 COMPONENT VIDEO IN 1
VIDEO IN 2
YC-15V/30V (not supplied)
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
VMC-810S/820S (not supplied)
Satellite
antenna
cable
S VIDEO
Rear of TV
Satellite receiver
75-ohm
coaxial
cable
(supplied)
Tip
If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable (yellow) instead
of the S VIDEO cable.
