22 - English
C
onnecting & Setting Up
Case 3: Connecting to an AV
amplifier with a digital output jack
If your AV amplifier has a Dolby Digital, MPEG2
or DTS decoder and a digital input jack, use this
connection. To enjoy Dolby Digital, MPEG2 or
DTS sound, you will need to set up the audio
settings. (See page 38)
Case 2 : Connecting to a stereo
amplifier with AV output jacks
If your stereo amplifier only has AUDIO INPUT
jacks(L and R), use the AUDIO OUT jacks.
white red
white red
Front(L)
speaker Front(R)
speaker
or
Rear(L)
Front(L)
Subwoofer Centre
Front(R)
Rear(R)

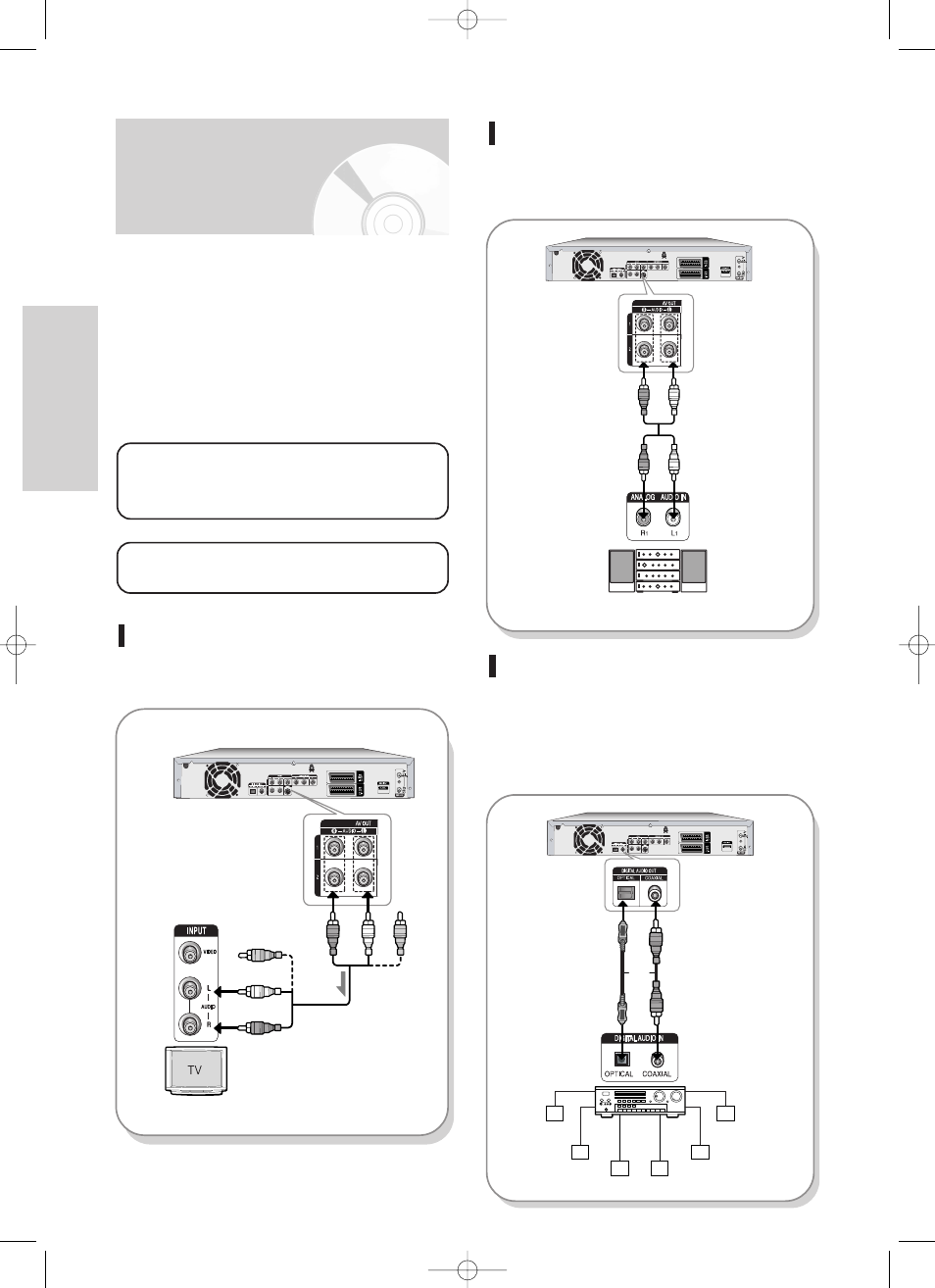

There are several ways to output audio signal not
using scart cables. Select the audio connection that
best suits you below.
• Case 1 : Connecting to your TV
• Case 2 : Connecting to a stereo amplifier with AV
output jacks
• Case 3 : Connecting to an AV amplifier with a
digital output jack
Case 1 : Connecting to your TV
If your TV has audio input jacks, use this connection.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks
of Digital Theater Systems, Inc.
Other type of connecting
the Audio output cable
yellow
white
red
yellow white red
