46

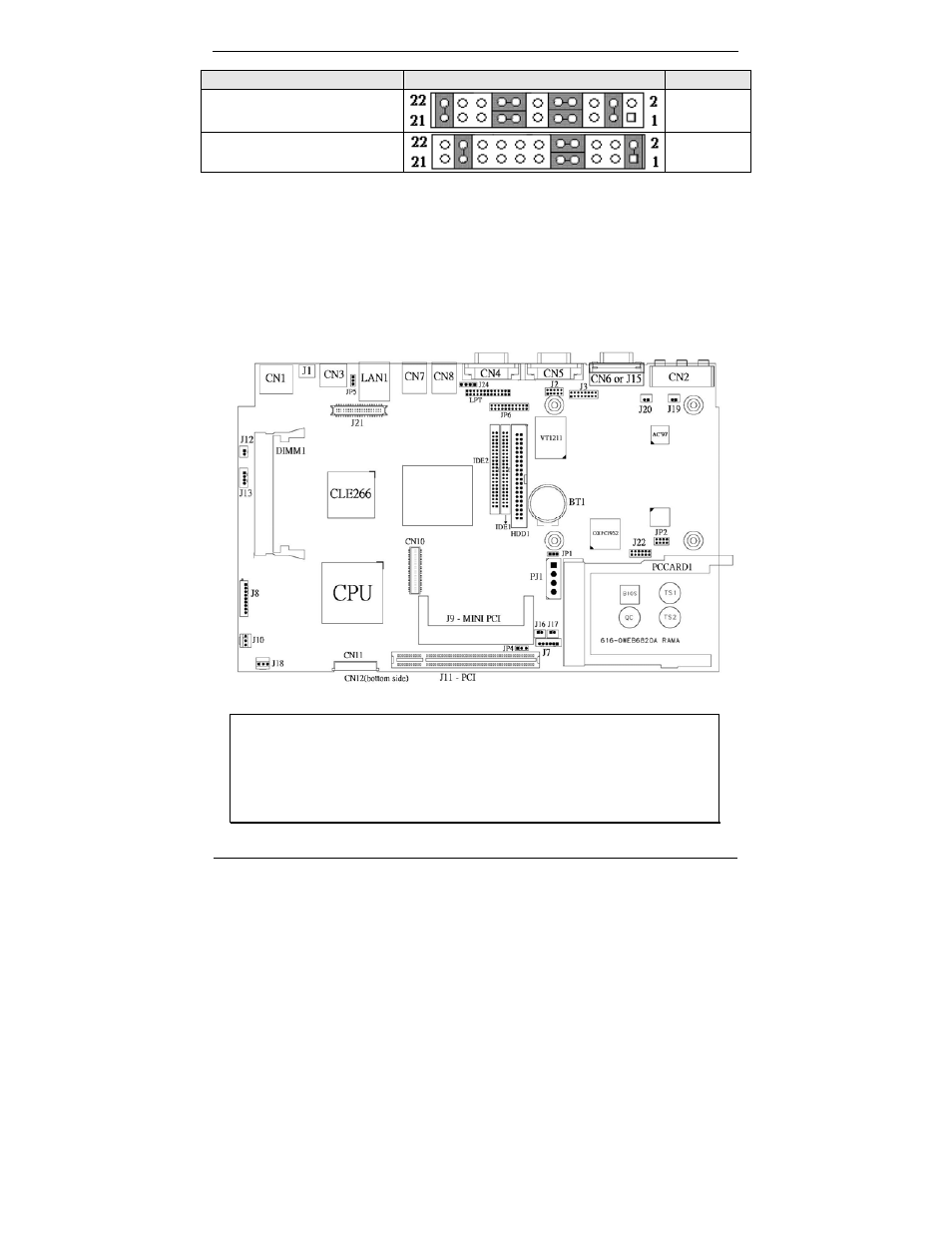

Jumper Setting
Illustration
Description.
3-4,7-9,8-10,13-15,14-16,21-22
RS-422
1-2,7-9,8-10,19-20
RS-485
Connector Definitions
Connectors Location
CAUTION:
When connecting the power connector to the
motherboard, make sure that the system is not
connected to an electrical outlet.
VT8235M
