C to 52, C csa rating - 0, C to 60 – I.R.I.S. FLAME MONITORING SYSTEM P522 User Manual
Page 42
MODEL P522DC
FLAME OFF
STORE
GAIN SET
F.F.R.T.
1-9
LOCKOUT
TIME DELAY ON
RESET
O.K.
SELF-CHECK
FLAME ON
ON
B
FLAME
A
NO
CAL
YES
Approved
FM
F1
.75A
F2
.25A
IRIS MODEL P522 APPLICATION MANUAL ADDENDUM 2B
15 May 2008
GND
+26V
BAT
S
C
C
S
C
O
F
F
S
C
O
N
R
F
C
R
F
O
F
F
R
F
O
N
R
F
O
N
R
F
O
F
F
R
F
C
+
T
X
-T
X
+
R
X
-R
X
G
N
D
S
IG
G
N
D
S
IG
S
C
+
V
G
N
D
METER
+
RMT
+
CHAN
SEL
+
V.H.
SEL
V.H. A
____ _____
S
IG
G
N
D
S
IG
S
C
+
V
G
N
D
V.H. B
____ _____
RS-422
ANALOG
CURRENT DRIVE
0-20mA OR 4-20mA
CHAN
SELECT
SIG
SIG GND
SC
RELAY
RF
RELAY
+24V
SHUTTER
DRIVE
VH
SEL
RELAY

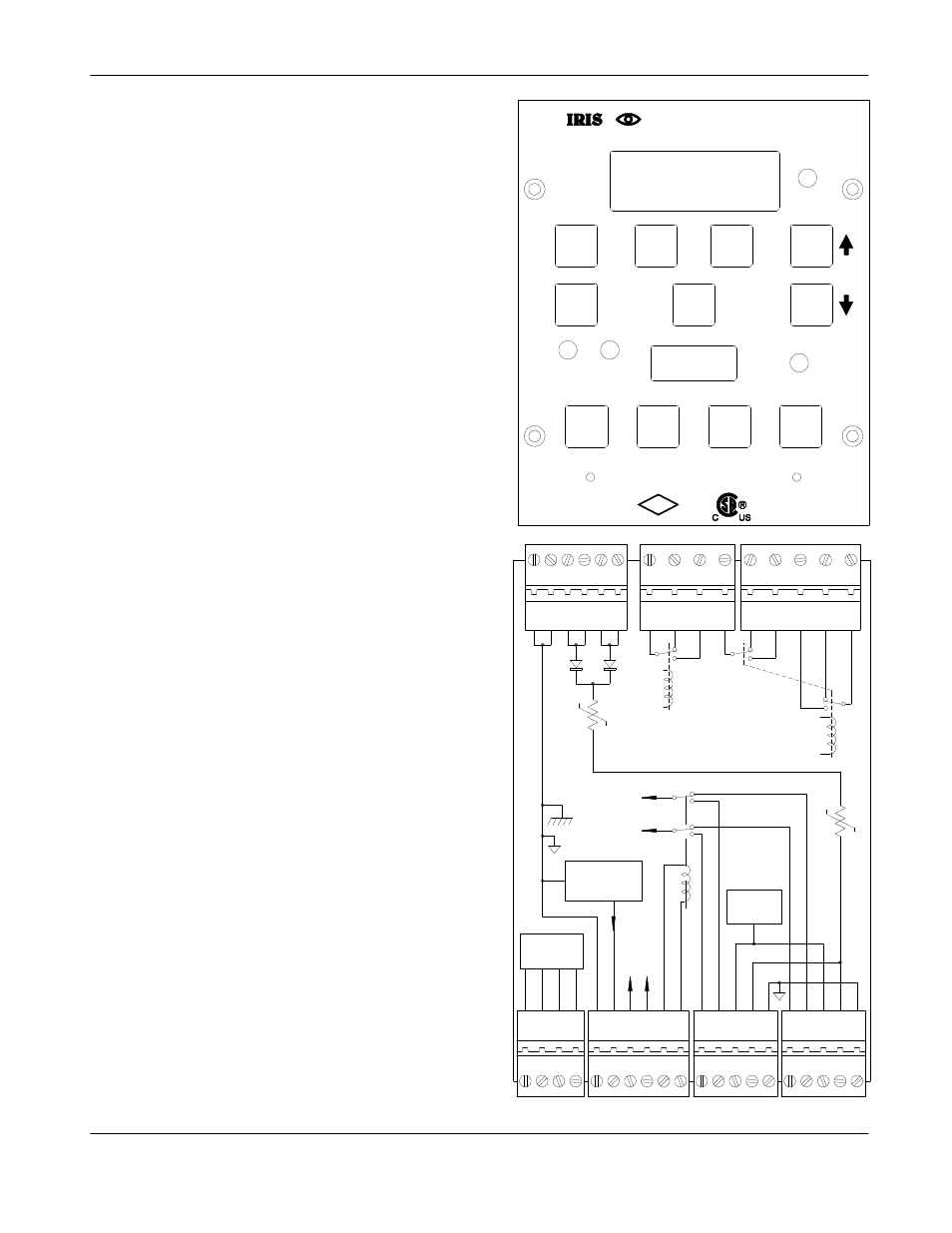

CHANGES FOR P522DC SIGNAL PROCESSOR
The P522DC is an upgrade of the P522 Signal Processor.
It features a higher current rating for the relay
contacts and is compatible with all S5XX viewing
heads. The front panel and the internal connections
are shown on the right. All the user features of the
earlier P522 are maintained plus the self-resetting
fuses, front panel lettering and the source impedance
resistor requirement of Addendum 1.
P522DC SPECIFICATIONS
ELECTRICAL
Main Power
-
22-26 VDC, 130mA
plus 100mA/View Head
Battery Power
-
22-26 VDC, 130mA
(Battery V < Main V)
plus 100mA/View Head
ENVIRONMENTAL
Ambient Temp.
-
0
o
C to 52
o
C CSA Rating
-
0
o
C to 60
o
C FM Rating
OUTPUTS
Flame Relay
-
2 Form C Contacts
Self-Checking Relay -
1 Form C Contact
Contact Ratings
-
5A @ 30VDC, 125VAC
and 277VAC
Analog Signal
-
0-19.8mA or 4-19.8mA
360 ohms max. resistance
Power to View Heads -
fused with self-resetting
fuses at 0.25A
INPUTS
Isolated Chan. Select -
7.5 – 30 VDC
Input R = 3900 ohms
Coil for V.H. Select -
17- 48 VDC (24 VDC nom)
SERIAL COMM.
RS-422 baud rate
-
4800 to 38400 user selected
Cable
-
Two twisted pairs
VIEWING HEAD CABLE:
When using S5XX
view heads in ordinary locations, use IRIS C-328 cable
or another cable running in a metal conduit to the
control room or signal processor enclosure, or use
IRIS C-330 cable or a shielded cable with UL ITC and
CSA CIC (C22.2 No. 239) ratings without conduit.
When using S55X viewing heads in hazardous
locations, the above cabling specifications also apply,
except that if conduit is used, it must be sealed at both ends.
Contact information:
Sales and Applications: Factory and Repairs:
IRIS Systems Inc.
JB Systems, Inc.
#7583 Vantage Place
4944 113
th
Ave. N
Delta, B.C. Canada
Largo, FL 33760
V4G 1A5
Ph: 727-545-3900
Ph: 800-667-IRIS
Fax: 727-547-9589
Ph: 604-584-4747
Fax: 604-581-9790
