Appendix F – Old Cable Connector Definitions
The previously used SmartSensor cable is comprised of six twisted pairs of wire. Each
pair is comprised of a black and a red wire, accompanied by a drain wire and surrounded
by a shield. A numeric label (1 through 6) identifies each pair of black and red wires.

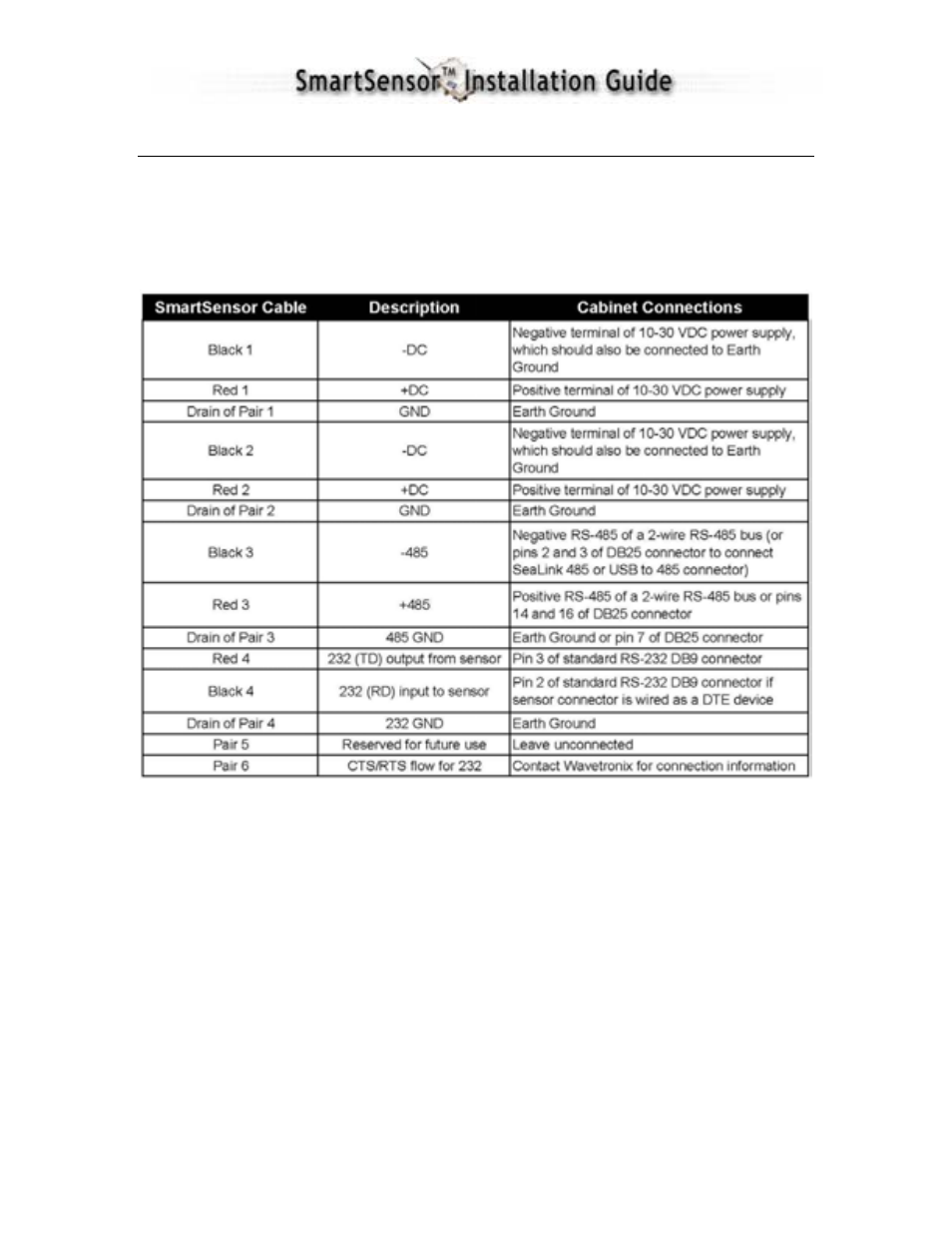

The following table details the pin out of the cable and the appropriate connection inside
the cabinet for each wire:
Table 5 – Cabinet Connection
Use the illustration below if you are using the old SmartSensor cable:
