Intermec EasyCoder PD4—User’s Guide
43
Chapter 6—Options
3

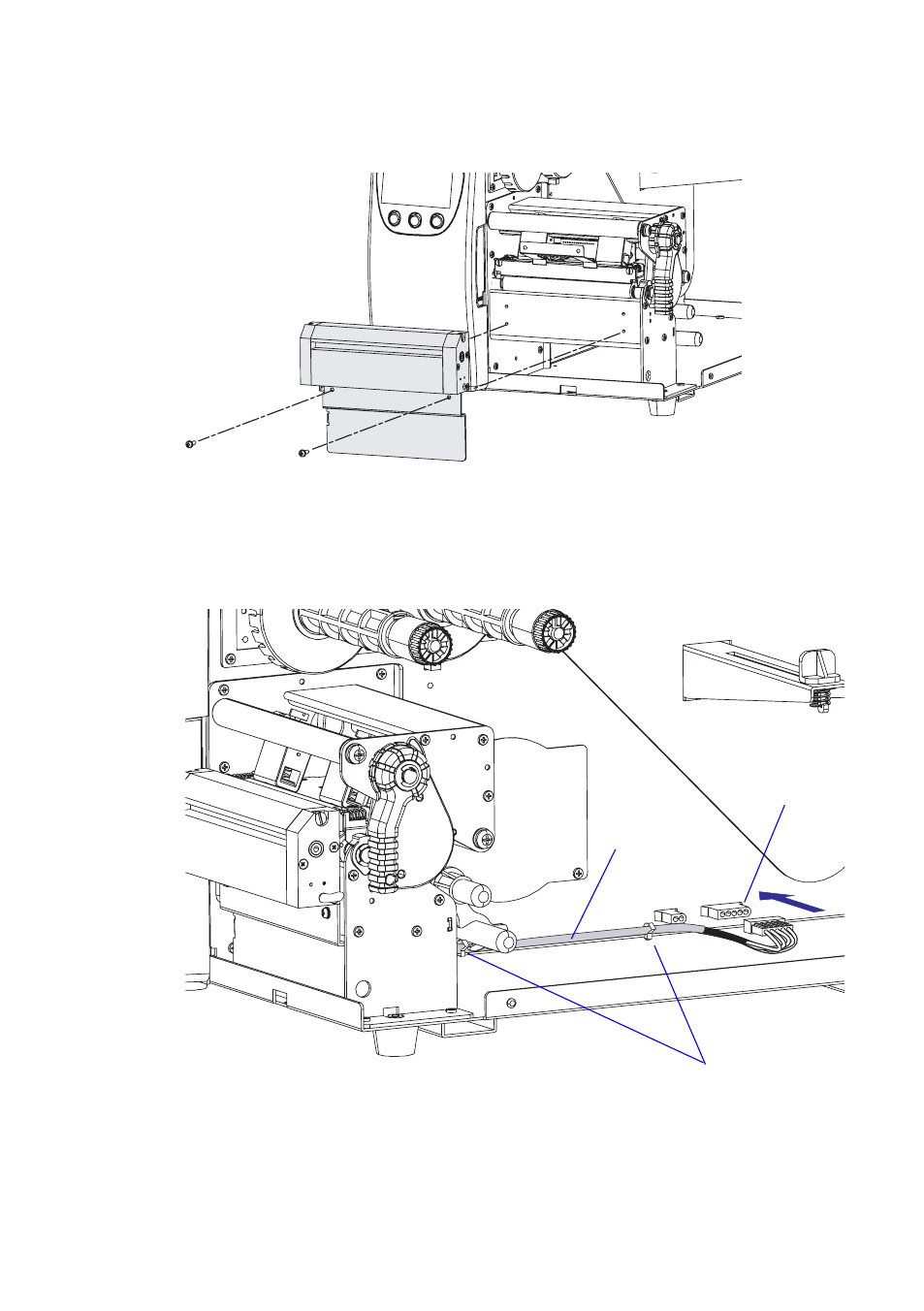

Attach the cutter mechanism to the printer using the two Phillips
screws and washers included in the kit.
4
Plug in the cable from the cutter into the rear one of the two con-
nectors in the center section and fasten the cable to the bottom plate
using the two cable clips included in the kit.
Cable clips
Cutter cable
Cutter
connector
