6.4 Alarm Action Setup
The Alarm Actions allow the administrator to define how the digital
video recorder responds to the triggered alarm from the Alarm Inputs.
There are up to 16 Alarm Actions that correspond to 16 (Focus)
Cameras for most applications. For each Alarm Action, you may
configure its behaviors as shown on the screen and described below.
Operations:

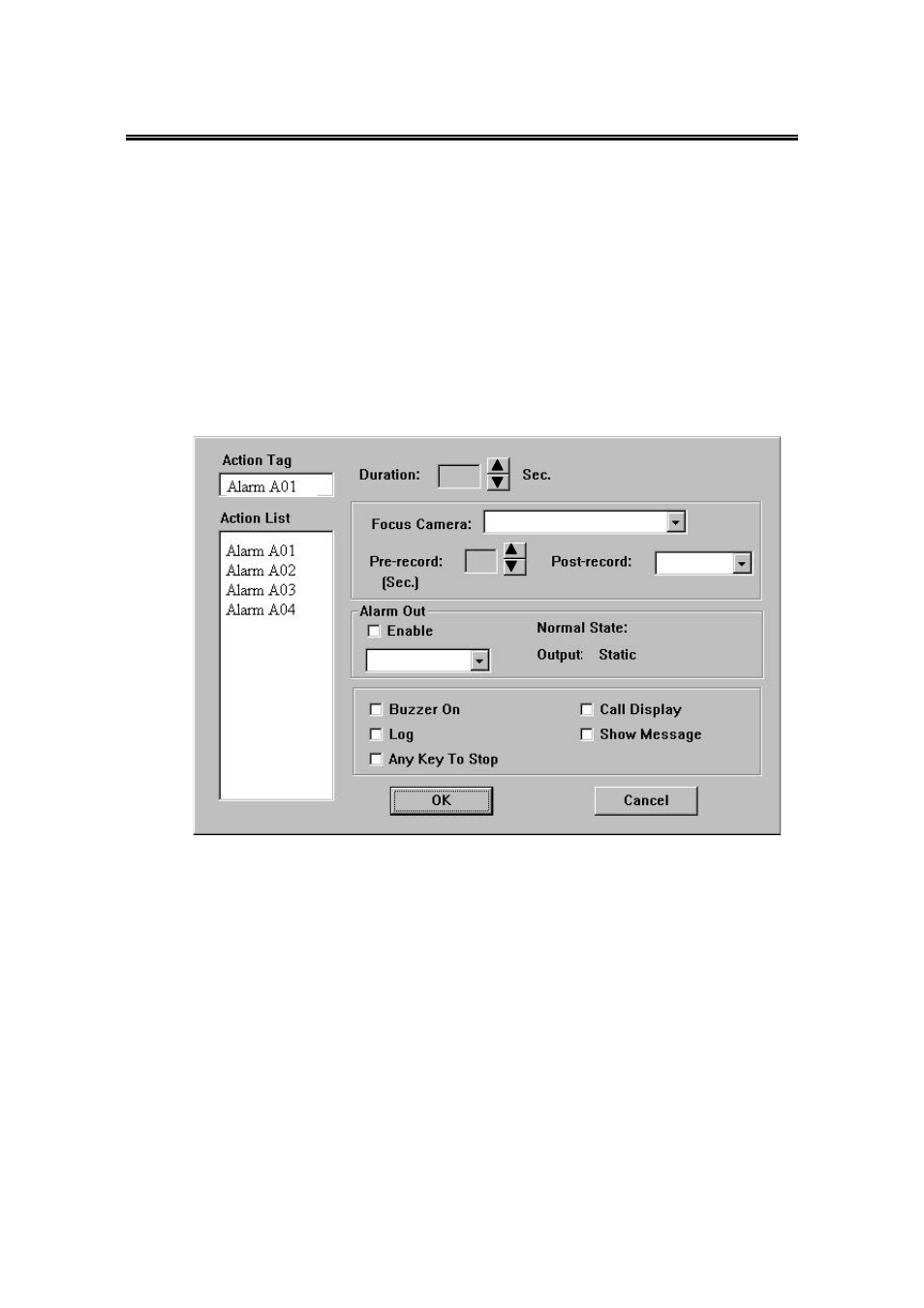

After the Alarm Action menu item is selected, the Alarm Action
Setup dialog box will be shown on the screen.
Please click on the item in the Action List, then click on the Action
Tag, and then enter the new tag name for the selected Action by
using the mouse or the keyboard. All the other settings correspond
to the selected Action shown in the Action Tag. The following is a
brief description for each item shown above.
Duration – Response duration to define how long (in seconds) the
Alarm Out relay and the Buzzer will keep after the Alarm Action is
triggered (Note 1). Use the Up/Down arrow buttons to adjust the
value (0-60 seconds).
