INSTALLATION

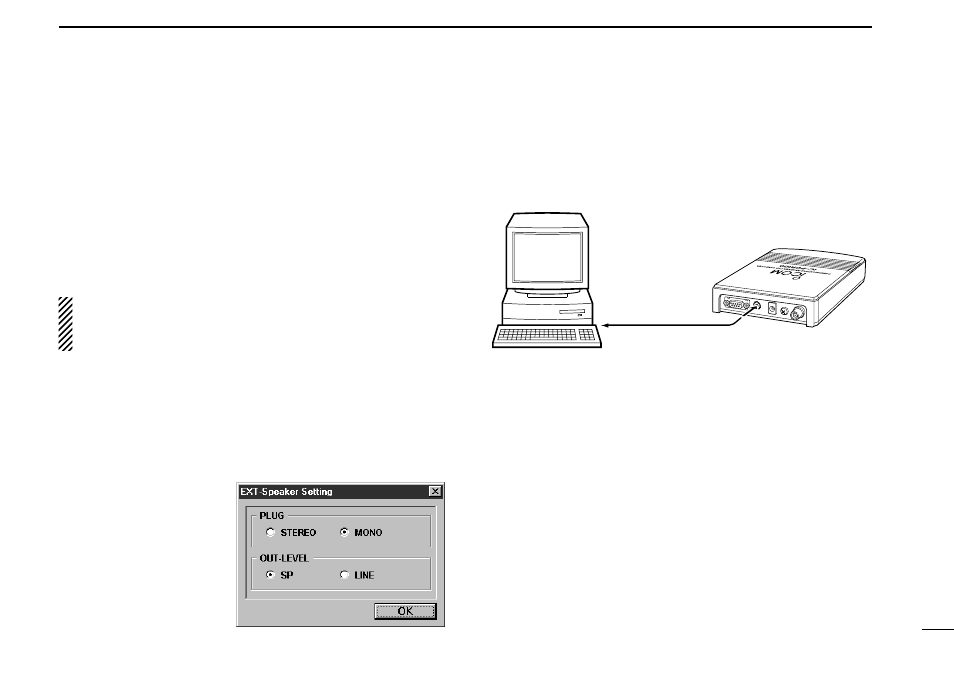

■ AF output level selection
The received audio can be input into your computer via the
sound card.
Before inputting the received audio into the [LINE IN] con-
nector (connector name depends on your sound card), the
output level of the [EXT-SP] must be set properly. Perform as
follows:
CAUTION: Setting ‘STEREO’ and connecting a 2-con-
ductor plug cause a short-circuit. This may damage the
audio power amplifier.
D Multi-function receiver screen
q Select ‘EXT-Speaker’ in the option menu to bring up the
[EXT-Speaker Setting] dialog box.
w Select the plug type as shown below.
• “STEREO” for 3-conductor stereo plug.
• “MONO” for 2-conductor
monaural plug.
e Select the output level
as shown at right.
• “SP” for internal or exter-
nal speaker.
• “LINE” for PC sound
card or headphones.
r Connect an appropriate cable between IC-PCR100 and
PC.
• Use a 3-conductor stereo plug for connecting to the receiver.
D Simple function receiver screen
q Right-click* the frequency indication to display shortcut
menu and select ‘EXT-Speaker’ in the Option menu to bring
up the [EXT-Speaker Setting] dialog box.
* When the mouse property is set for right-handed.
w Select the plug type.
• “STEREO” for 3-conductor stereo plug.
• “MONO” for 2-conductor monaural plug.
e Select the output level.
• “SP” for internal or external speaker.
• “LINE” for PC sound card or headphones.
r Connect an appropriate cable between IC-PCR100 and
PC.
[EXT-SP]
to [LINE IN]
(depends on
your sound card)
