V. Client Device Setup

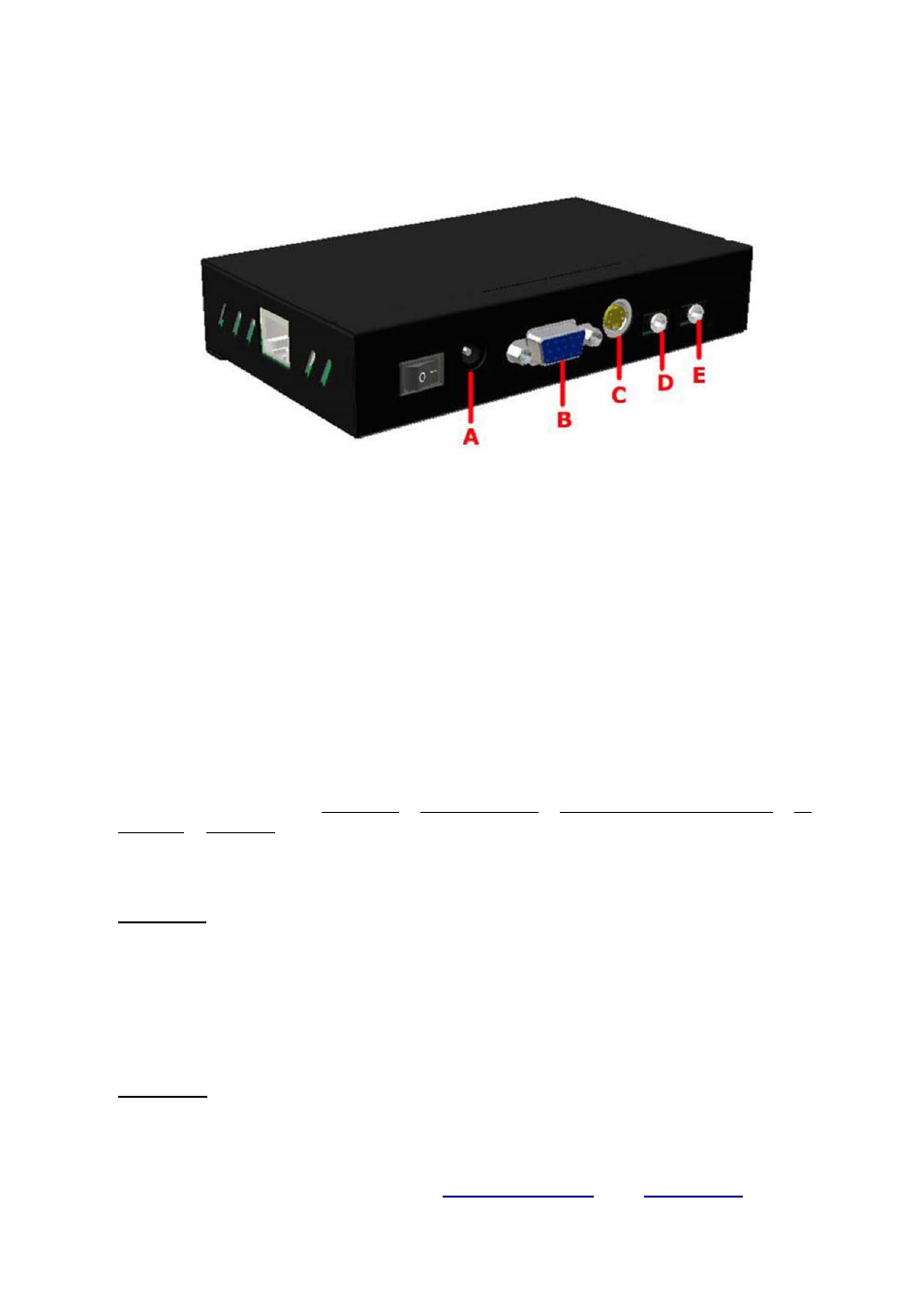

A: Power connector B: VGA
C: S-Video D: Composite Video E: Stereo Jack
1. CMP2000N Operating Procedure
-
High speed CF (Compact Flash) memory card is required. Sandisk Ultra II CF card is
recommended
-
Plug in CF card into CF slot
-
Plug in LAN cable that connect to your LAN or internet network
-
Connect video cable (RCA or S-Video) to your TV unit or VGA to your PC monitor
-
Switch to right video source input channel on TV unit
-
Connect audio cable to TV unit's audio connectors
-
Connect 5V AC power adapter
-
Switch on CMP2000N
2. Client Main Menu
- Display screen will show “Initializing”, “Initializing LAN”, “Connecting DHCP Server..”, "IP
Address”, “CF Card” then main menu
Note: It will take a few moments while “Connecting to DHCP Server” depending on the IP assignment speed from
network router
- Main
menu will show the following items on left side
• Client Local IP: xxx.xxx.xxx.xxx
• Server IP: xxx.xxx.xxx.xxx or Host name
• Time: 2007/06/01 15:30
• MAC
Address: xx-xx-xx-xx-xx-xx
• Server Connection: ON or OFF or Error
• Storage:
xxxMB
- Main
Menu will show the following items on the right side
• Setup : press ENTER key to go into Client Setup screen
• Storage : Press ENTER key to go to file folder of CF card
