Property Damage: Do not place objects
on top of chilled water tank which
could obstruct the fan.
PREPARATION
■ ■
Unplug instant hot water tank and
hold handle in open position until
cool water flows from spout.
■ ■
Turn off water supply.
■ ■
Identify the undersink location for the
chilled water tank.
■ ■
For best performance, allow for a
minimum 2" space around the sides
and top of the chilled water tank.
■ ■
The chilled water tank will require
a minimum footprint of 15" wide
by 11" deep.
■ ■
Ensure that there is a minimum of 18"
vertical clearance for the chilled water tank.
1
A
< 18"
< 11"
< 15"
Follow these steps for installing chilled water tank with instant hot/cool water dispenser.
Blue Tubing
White Tubing
Instant Hot/Cool
Water Dispenser Faucet
Filter
Instant
Hot Water
Tank
Food
Waste
Disposer
Chilled
Water
Tank
Air-Activated
SinkTop Switch
™
Copper Tubing
Shown with optional filtration

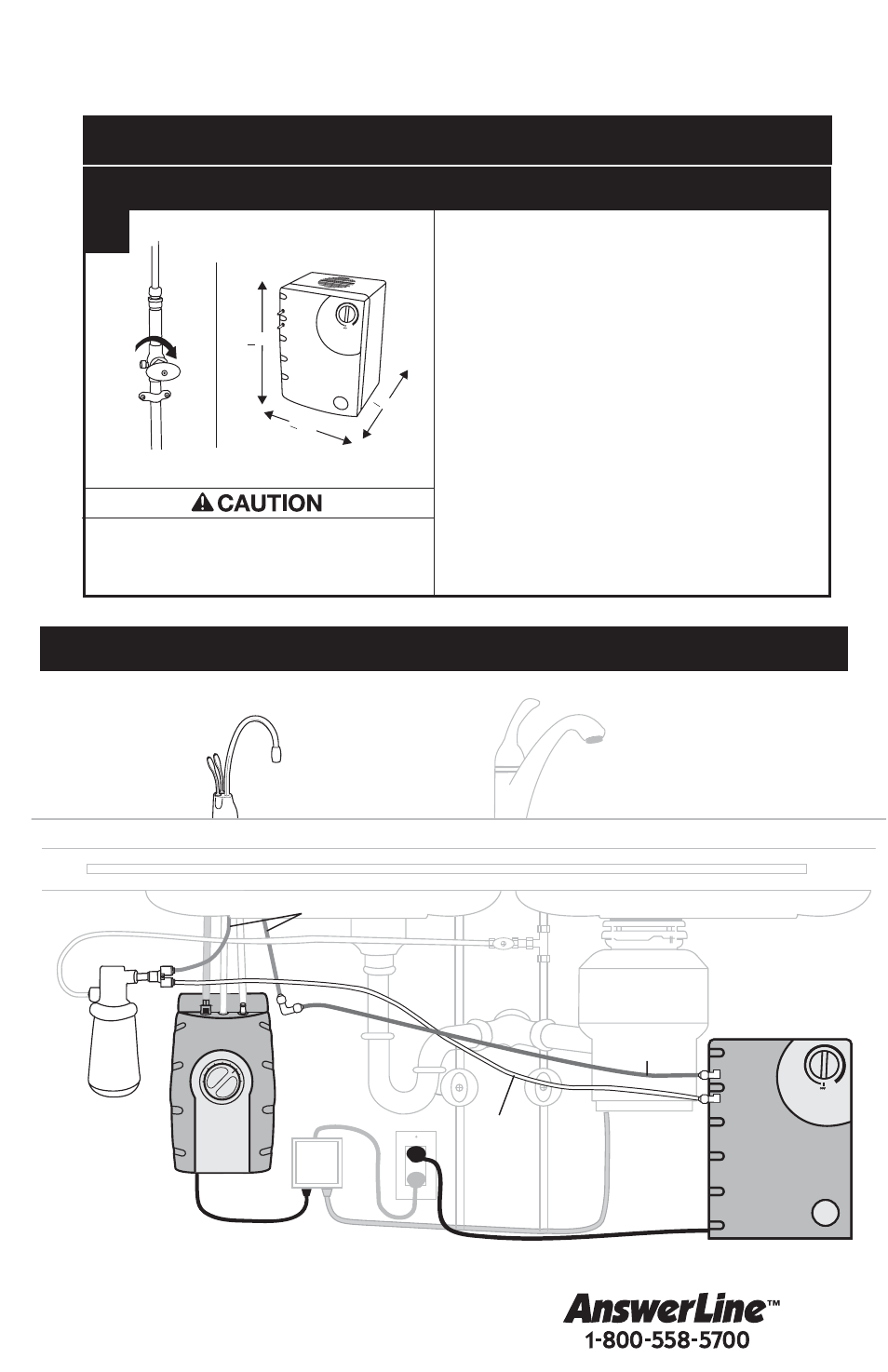

OVERVIEW OF A TYPICAL INSTALLATION with Instant Hot Water Dispenser
These instructions assume hot/cool faucet has already been installed. Refer
to Installation, Care & Use manual included with hot/cool water dispenser.
4
Note: Chilled water tank must be plugged
directly into open wall outlet.
