4. Quick Start

Step 1. Plug in your USB keyboard and mouse.

Step 2. Plug in your VGA monitor.

Step 3. Connect the LinPAC-8000 to the LAN

Step 4. Insert the I-8K/87K series I/O modules into the LinPAC-8x41 slots.

Step 5. Connect the COM2, COM3 or the COM4 ports to your devices

controlled by LinPAC-8x41.

Step 6. Connect the DC power and turn it on.

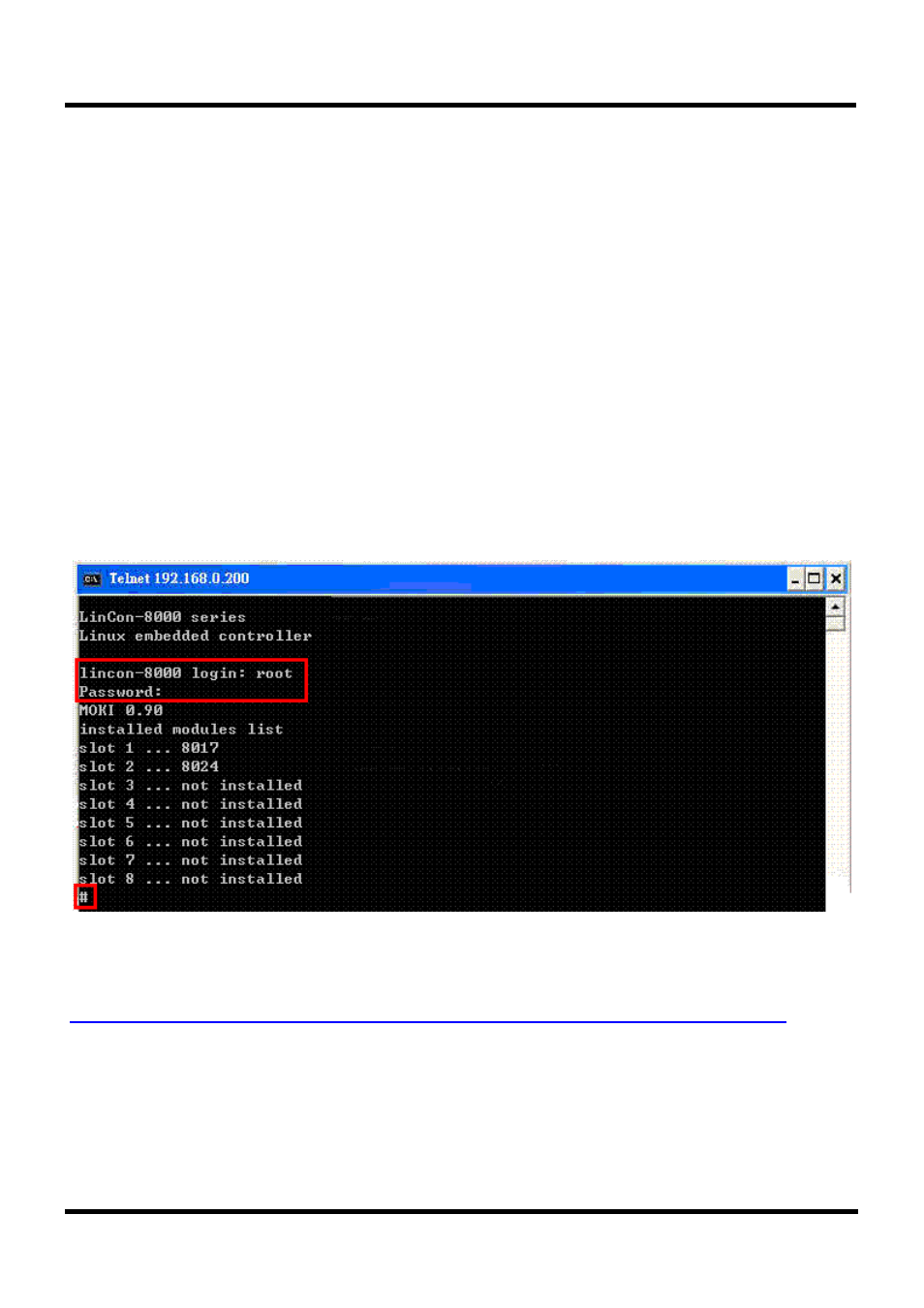

Step 7. The Linux will start up, then please refer to the software user’s manual

for further operations and for developing your own applications.

Note: Power Supply : +10V ~ +30V/DC (EX:DP-665)
