Chapter 3 System Engine
Main Board Connector and Jumper Setting List

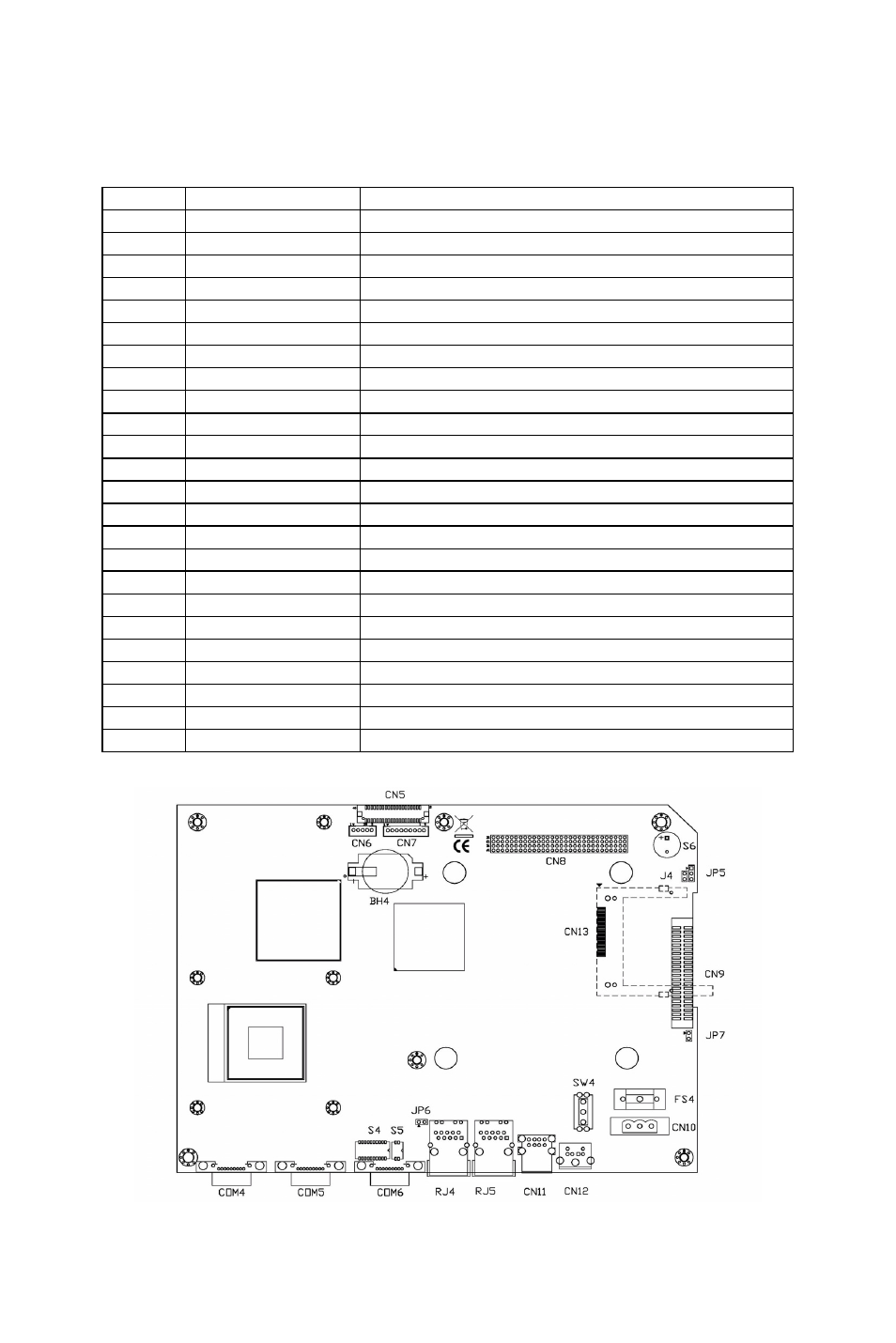

Figure 3.1: Main Board Connector
Label Function Description
CN5 LVDS LCD Internal 18bit LVDS LCD Connector
CN6 LCD POWER LCD INVERTER Connector
CN7 TOUCH Internal Touch screen Connector
CN8 PCI-104 PCI-104
CN9 IDE Connector IDE connector for 40pin 2.5îinternal HDD
CN10 PWR DC IN DC Power in Connector, HOUSING 5.08 MM 3P
CN11 USB Two USB Type-A Female to on panel.
CN12 PS/2 KB/MS PS/2 connector for KB/MS
CN13 CF Compact-Flash socket
COM4 COM1 Serial port:COM1 RS232
COM5 COM2 Serial port:COM2 RS232
COM6 COM3 Serial port:COM3 RS232/422/485
RJ4 LAN1 ICH4M+82562EZ 10/100
RJ5 LAN2 10/100 82551QM / GIGA 82541PI
BH4 Battery Battery socket
JP5 PCI-104 PWR Selection of PCI-104 Power
JP6 CLEAR CMOS CLEAR CMOS
J4 I2C I2C connector
S4 COM4 MODE1 Setting COM4 RS232/422/485 mode
S5 COM4 MODE2 Setting COM4 RS422 Master or Slave mode
S6 IRQ selection IRQ selection for CAN circuit
SP4 Buzzer Buzzer socket
SW4 POWER SWITCH System Power Switch
SW5 Address selection Address selection for CAN circuit
