3.322 DVI-D Interface

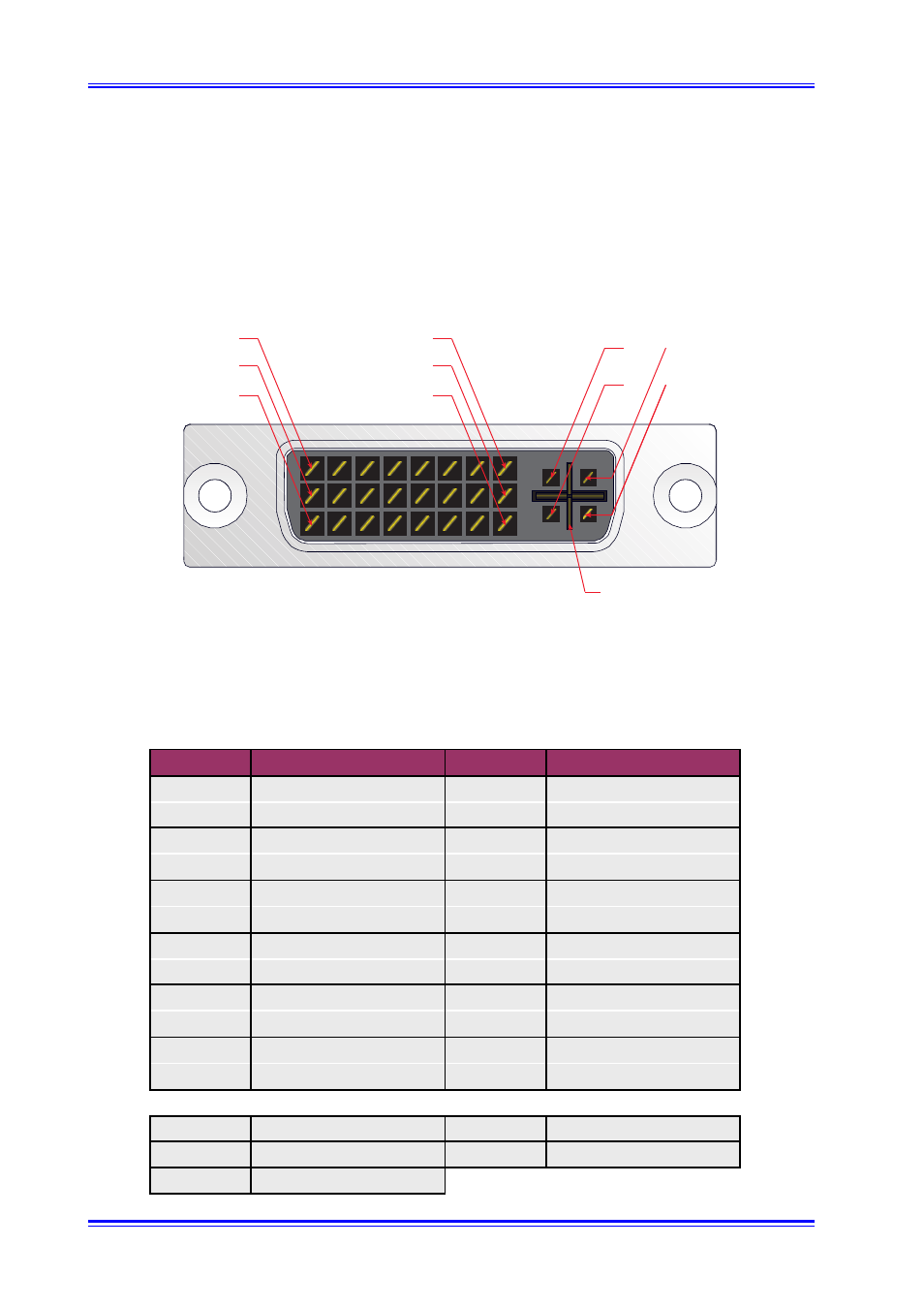

Figure 3.322 DVI-D Interface
Table 3.322 DVI-D Interface Description
C2
C1
C4
C3
C5
1
8
9
16
17
24
C2
C1
C4
C3
C5
1
9
17
8
16
24
Pin No.
Signal
Pin No.
Signal
1
T.M.D.S Data 2 -
2
T.M.D.S Data 2 +
3
T.M.D.S Data 2 Shield
4
N/C
5
N/C
6
N/C
7
N/C
8
N/C
9
T.M.D.S Data -
10
T.M.D.S Data 1 +
11
T.M.D.S Data 1 Shield
12
N/C
13
N/C
14
+5V Power
15
Ground
16
Hot Plug Detect
17
T.M.D.S Data 0 -
18
T.M.D.S Data 0 +
19
T.M.D.S Data 0 Shield
20
N/C
21
N/C
22
T.M.D.S Clock Shield
23
T.M.D.S Clock +
24
T.M.D.S Clock -
C1
N/C
C2
N/C
C3
N/C
C3
N/C
C5
N/C
