2.0 SPECIFICATION
Length (max. front to back):
35 cm (complete with mounting bracket)
Diameter:
45
cm
Weight:
6.4 Kg plus mounting bracket 1.7 Kg
Liquid flow rate:
0.25 – 2.0 l/min
Spray droplet size:
100 – 120 microns VMD
Hydraulic oil flow:
8 l/min per sprayhead.
Hydraulic pressure:
124 Bar pressure drop across each motor (approx.)
Fan/atomiser
speed
4000
rpm
Hydraulic motor supply port:
3/8 BSP (F)
Hydraulic motor return port:
3/8 BSP (F)
Hydraulic motor drain port:
1/8 BSP (F)
Airflow @ 0.4 m (16 in):
98 m³/min/head (3460 ft³/min)
Air velocity @ 0.4 m (16in):
18 m/sec (40.2 mph)

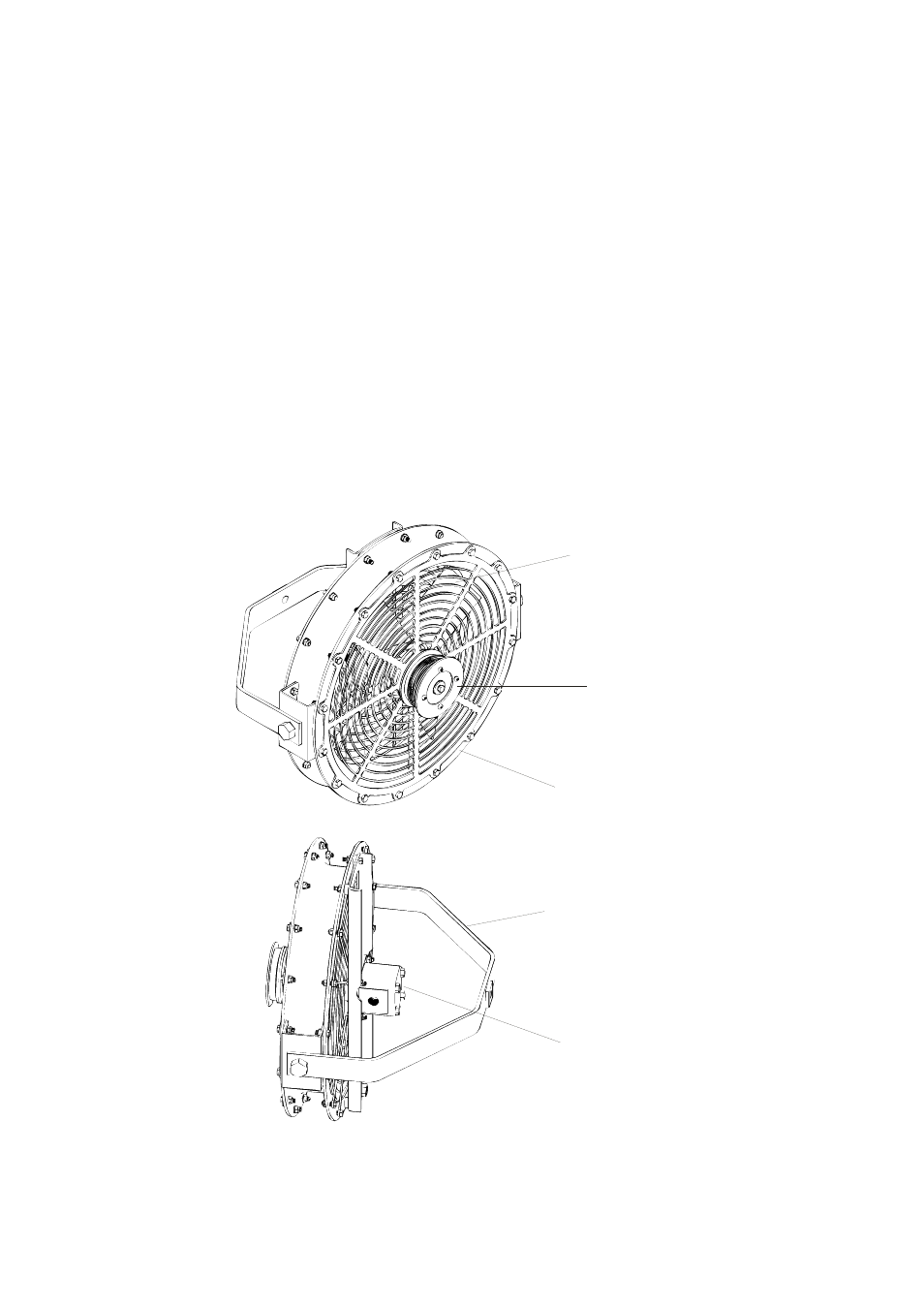

AXIAL FAN
ATOMISER
SAFETY GUARDS
MOUNTING BRACKET
HYDRAULIC MOTOR
Figure 1. Turbofan spray head
